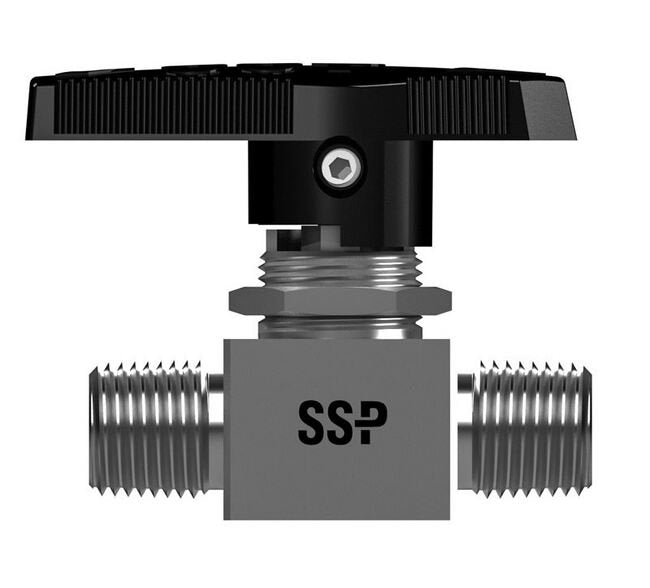

Alloy 400 Encapsulated 2-Way Ball Valves
Alloy 400 Encapsulated 2-Way Ball Valves
SKU:VAL-88b711
Reliable Alloy 400 2-Way Ball Valves for industrial fluid control. Cv: 1.20, 3000 psig, -65 to 300°F.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Alloy 400 Encapsulated 2-Way Ball Valves
$79.99
Quantity: 1
Claim Your Seller Account
Alloy 400 Encapsulated 2-Way Ball Valves
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior fluid control with our Alloy 400 Encapsulated 2-Way Ball Valves. Designed for durability, these valves feature Alloy 400 body material, Modified PTFE packing, and a black Nylon handle with a stainless steel insert. With a Cv of 1.20 and a working pressure of 3000 psig, these valves ensure reliable performance in a temperature range from -65 to 300°F. Perfect for industrial applications requiring precise flow control and longevity.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

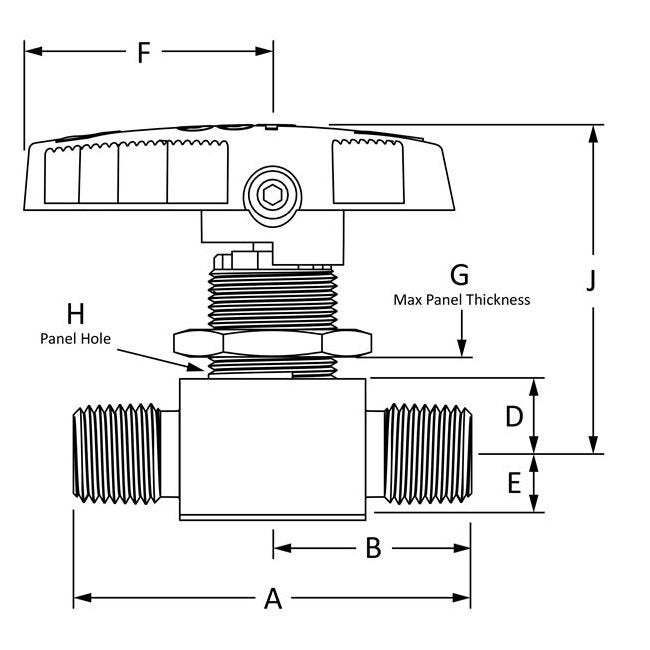

Dimensions A
2.00 in | 50.8 mm
Dimensions B
1.00 in | 25.4 mm
Dimensions D
0.44 in | 11.2 mm
Dimensions E
0.38 in | 9.7 mm
Dimensions F
1.43 in | 36.3 mm
Dimensions G
3/16 in | 4.8 mm
Dimensions H
25/32 in | 19.8 mm
Dimensions J
1.53 in | 38.8 mm

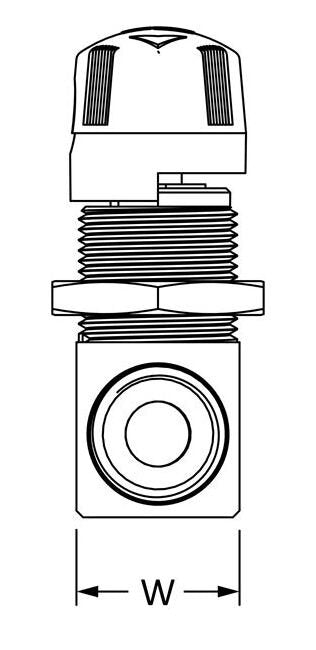

Dimensions W
0.78 in
Specifications Actuation Type
.
Specifications Body Material
Alloy 400
Specifications Brand Series
EB Series
Specifications Connection 1 Size
1/4-18
Specifications Connection 1 Type
MNPT
Specifications Connection 2 Size
1/4-18
Specifications Connection 2 Type
MNPT
Specifications Cv
1.20
Specifications Handle Color
Black
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
Locking Device
Specifications Orifice
0.187 in | 4.7498 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
4
Specifications Shape
2-way
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Working Pressure
3000 psig | 206 bar
