Alloy 400 Female Run Tee - Griplok 1/8 Tube Fitting x 1/8-27 FNPT x 1/8 Tube Fitting
Alloy 400 Female Run Tee - Griplok 1/8 Tube Fitting x 1/8-27 FNPT x 1/8 Tube Fitting
SKU:FIT-095c52

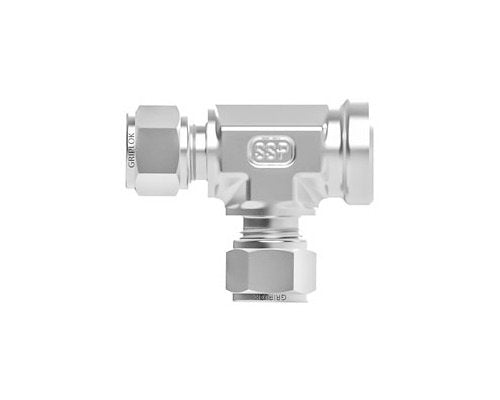

High-quality Alloy 400 Female Run Tee from Griplok with 1/8 Tube Fitting x 1/8-27 FNPT connections for precision and durability.
Regular price
$23.99
Regular price
Sale price
$23.99
Unit price
per
Initiate Order
Alloy 400 Female Run Tee - Griplok 1/8 Tube Fitting x 1/8-27 FNPT x 1/8 Tube Fitting
$23.99
Quantity: 1
Claim Your Seller Account
Alloy 400 Female Run Tee - Griplok 1/8 Tube Fitting x 1/8-27 FNPT x 1/8 Tube Fitting
$23.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

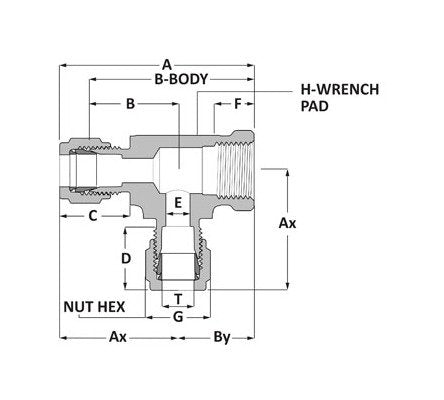

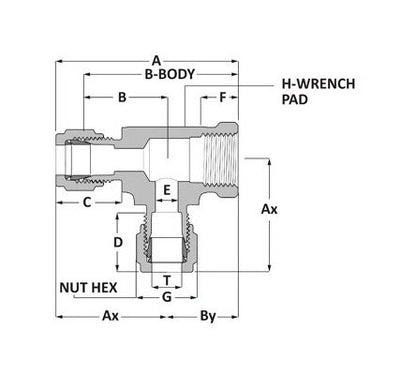

The Alloy 400 Female Run Tee from Griplok is a high-quality tube fitting solution designed for precision and durability. With connections in 1/8 inch size for both tube fittings and FNPT, this Tee shape fitting ensures secure and leak-free connections. Crafted from Alloy 400, this fitting offers excellent corrosion resistance and is suitable for a wide range of applications. The compact design with precise dimensions of A: 1.78 in, Bx: 0.71 in, By: 0.75 in, C: 0.66 in, D: 0.56 in makes installation easy and efficient. Upgrade your tubing system with the reliability of Griplok Tube Fittings.
Product Specifications
Dimensions A
1.78 in
Dimensions Ax
0.97 in
Dimensions B
1.46 in
Dimensions Bx
0.71 in
Dimensions By
0.75 in
Dimensions C
0.66 in
Dimensions D
0.56 in
Dimensions E
0.09 in
Dimensions G
7/16 in
Dimensions H
9/16 in
Dimensions P
1/8 in
Dimensions T
1/8 in
Specifications Body Material
Alloy 400
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/8 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/8 in
Specifications Connection 2 Type
FNPT
Specifications Connection 3 Size
1/8 in
Specifications Connection 3 Type
Tube Fitting
Specifications End Connections
TF x FNPT x Tube Fitting
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Tee
Category 6
Tube Fitting Adapters - Griplok
