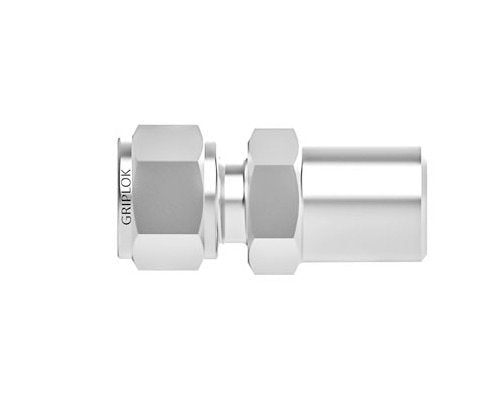

Alloy 400 Griplok Male Pipe Weld Connector 1" Tube Fitting x 1" Pipe Stub
Alloy 400 Griplok Male Pipe Weld Connector 1" Tube Fitting x 1" Pipe Stub
SKU:SSP-4801ac
Durable Alloy 400 Griplok Male Pipe Weld Connector for secure and leak-free installations in critical applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Alloy 400 Griplok Male Pipe Weld Connector 1" Tube Fitting x 1" Pipe Stub
$39.99
Quantity: 1
Claim Your Seller Account
Alloy 400 Griplok Male Pipe Weld Connector 1" Tube Fitting x 1" Pipe Stub
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your industrial piping systems with the Alloy 400 Griplok Male Pipe Weld Connector. This straight tube fitting features Alloy 400 construction, ensuring durability and corrosion resistance. Its precise dimensions and TF x Pipe Stub connections guarantee a secure and leak-free installation. Compliant with federal procurement standards, this fitting is designed for reliability in critical applications. Enhance your facility's performance with this high-quality connector.

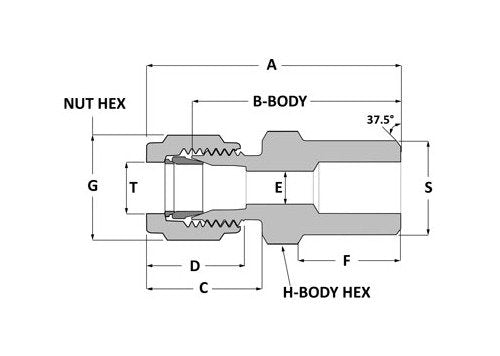

Product Specifications
Dimensions A
2.53 in
Dimensions B
1.97 in
Dimensions C
1.12 in
Dimensions D
1.31 in
Dimensions E
0.86 in
Dimensions F
0.94 in
Dimensions G
1 1/2 in
Dimensions H
1 3/8 in
Dimensions Pipe Od
1.315 in
Dimensions S
1.31 in
Dimensions T
1 in
Dimensions Tube Id
1 in
Specifications Body Material
Alloy 400
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1 in
Specifications Connection 2 Type
Pipe Stub
Specifications End Connections
TF x Pipe Stub
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Straight
Category 6
Griplok® Tube Fittings
