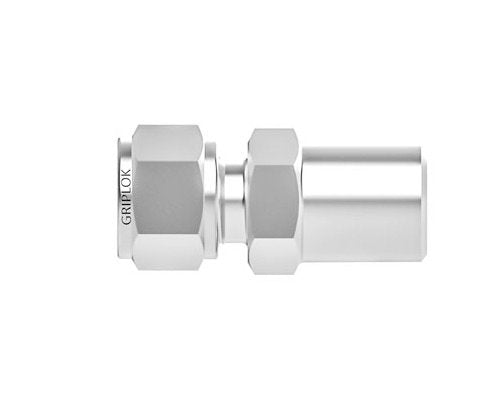

Alloy 400 Griplok Male Pipe Weld Connector - 3/8 Tube x Pipe Stub
Alloy 400 Griplok Male Pipe Weld Connector - 3/8 Tube x Pipe Stub
SKU:SSP-d28aa5
Premium Alloy 400 Griplok Male Pipe Weld Connector for 3/8 Tube to Pipe Stub connections. Durable, corrosion-resistant, and compliant with federal standards.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Alloy 400 Griplok Male Pipe Weld Connector - 3/8 Tube x Pipe Stub
$34.99
Quantity: 1
Claim Your Seller Account
Alloy 400 Griplok Male Pipe Weld Connector - 3/8 Tube x Pipe Stub
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Alloy 400 Griplok Male Pipe Weld Connector is a top-tier tube fitting designed for precision and durability. With a straight shape and Alloy 400 body material, this connector ensures secure connections between 3/8-inch tube fittings and pipe stubs. Its compact dimensions, corrosion resistance, and high-quality construction make it ideal for industrial applications. Compliant with federal procurement standards, this connector guarantees reliability and performance in demanding environments.

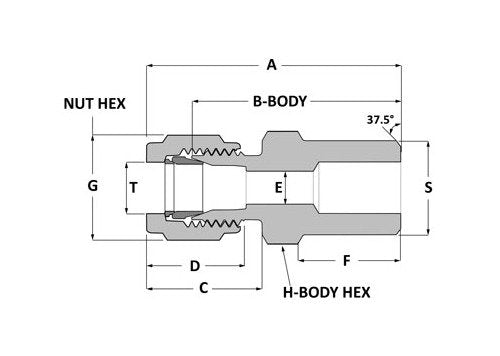

Product Specifications
Dimensions A
1.62 in
Dimensions B
1.28 in
Dimensions C
0.81 in
Dimensions D
0.71 in
Dimensions E
0.28 in
Dimensions F
0.56 in
Dimensions G
11/16 in
Dimensions H
11/16 in
Dimensions Pipe Od
0.675 in
Dimensions S
0.67 in
Dimensions T
3/8 in
Dimensions Tube Id
3/8 in
Specifications Body Material
Alloy 400
Specifications Brand Series
Griplok
Specifications Connection 1 Size
3/8 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
3/8 in
Specifications Connection 2 Type
Pipe Stub
Specifications End Connections
TF x Pipe Stub
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Straight
Category 6
Griplok® Tube Fittings
