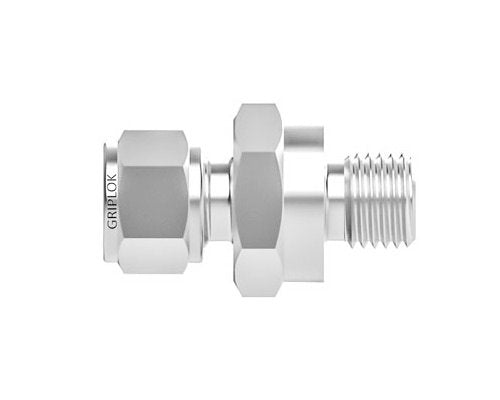

Alloy 400 Griplok O-Ring Seal Straight Thread Connector
Alloy 400 Griplok O-Ring Seal Straight Thread Connector
SKU:SSP-70521a
High-quality Alloy 400 connector for 3/4' tube fittings to O-ring sealed threads. Reliable, leak-free, Griplok design.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Alloy 400 Griplok O-Ring Seal Straight Thread Connector
$39.99
Quantity: 1
Claim Your Seller Account
Alloy 400 Griplok O-Ring Seal Straight Thread Connector
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Alloy 400 Griplok O-Ring Seal Straight Thread Connector is a reliable solution for connecting 3/4-inch tube fittings to O-ring sealed straight threads. Crafted from high-quality Alloy 400, this connector ensures durability and resistance to corrosion. With precise dimensions and a secure grip design, it offers seamless installation and leak-free performance, making it ideal for instrumentation tube fittings. Trust in the Griplok series for superior quality and dependability in fluid system connections.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions A
2.10 in
Dimensions B
1.66 in
Dimensions C
0.90 in
Dimensions D
1.00 in
Dimensions E
0.62 in
Dimensions F
0.56 in
Dimensions G
1 1/8 in
Dimensions H
1 1/2 in
Dimensions Hd
1.49 in
Dimensions S
1 1/16-12
Dimensions T
3/4 in
Specifications As568 O Ring Uniform Size Number
-215
Specifications Body Material
Alloy 400
Specifications Brand Series
Griplok
Specifications Connection 1 Size
3/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
3/4 in
Specifications Connection 2 Type
O-ring Sealed Straight Thread
Specifications End Connections
TF x O-ring Sealed Straight Thread
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Straight
Category 6
Griplok® Tube Fittings
