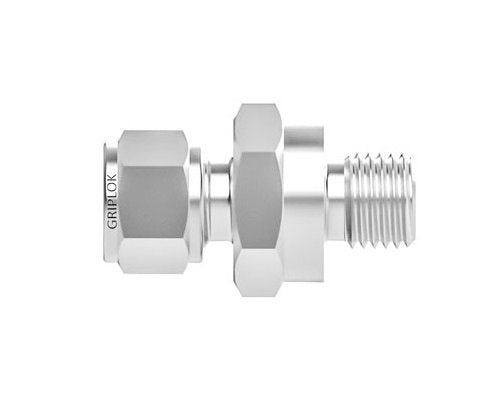

Alloy 400 Griplok O-Ring Seal Straight Thread Connector - 1 inch
Alloy 400 Griplok O-Ring Seal Straight Thread Connector - 1 inch
SKU:SSP-b02cc1
Premium Alloy 400 Griplok O-Ring Seal Straight Thread Connector for 1 inch fittings. Reliable performance and quality design.
Regular price
$44.99
Regular price
Sale price
$44.99
Unit price
per
Initiate Order
Alloy 400 Griplok O-Ring Seal Straight Thread Connector - 1 inch
$44.99
Quantity: 1
Claim Your Seller Account
Alloy 400 Griplok O-Ring Seal Straight Thread Connector - 1 inch
$44.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

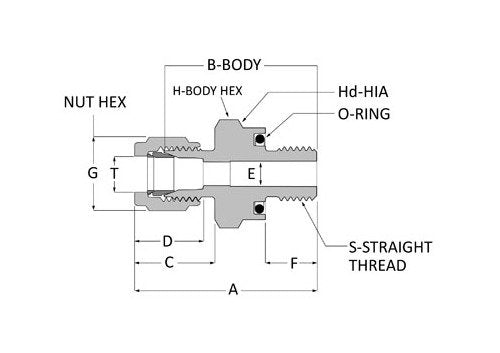

The Alloy 400 Griplok O-Ring Seal Straight Thread Connector is a high-quality instrumentation tube fitting designed for reliable performance. This connector features a straight shape with dimensions A: 2.37 in, B: 1.81 in, C: 1.12 in, D: 1.31 in, E: 0.88 in, F: 0.56 in, G: 1 1/2 in, H: 1 3/4 in, T: 1 in, Hd: 1.74 in, and S: 1 5/16-12. It meets AS568 O-Ring Uniform Size Number -219, suitable for a 1-inch tube fitting with O-ring sealed straight thread connection. The Griplok series ensures secure handling and is ideal for various applications.
Product Specifications
Dimensions A
2.37 in
Dimensions B
1.81 in
Dimensions C
1.12 in
Dimensions D
1.31 in
Dimensions E
0.88 in
Dimensions F
0.56 in
Dimensions G
1 1/2 in
Dimensions H
1 3/4 in
Dimensions Hd
1.74 in
Dimensions S
1 5/16-12
Dimensions T
1 in
Specifications As568 O Ring Uniform Size Number
-219
Specifications Body Material
Alloy 400
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1 in
Specifications Connection 2 Type
O-ring Sealed Straight Thread
Specifications End Connections
TF x O-ring Sealed Straight Thread
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Straight
Category 6
Griplok® Tube Fittings
