Alloy 400 O-Ring Seal Connector - Griplok 1/4
Alloy 400 O-Ring Seal Connector - Griplok 1/4
SKU:SSP-10293f
Premium Alloy 400 O-Ring Seal Connector - Leak-free, durable design for versatile applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Alloy 400 O-Ring Seal Connector - Griplok 1/4
$24.99
Quantity: 1
Claim Your Seller Account
Alloy 400 O-Ring Seal Connector - Griplok 1/4
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

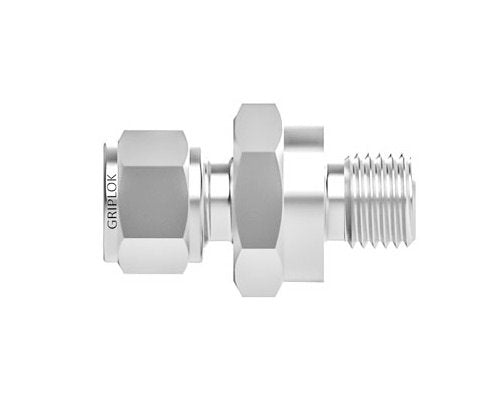

The Alloy 400 O-Ring Seal Straight Thread Connector by Griplok is a premium tube fitting designed for superior performance. This connector features Alloy 400 construction, ensuring exceptional durability and corrosion resistance. With 1/4 inch sizing on both tube fitting and O-ring sealed straight thread connections, it offers a secure and leak-free seal. The Griplok brand series guarantees a high-quality product that meets stringent industry standards, making it ideal for a wide range of applications.

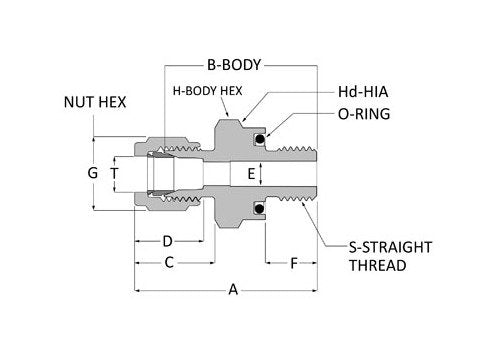

Product Specifications
Dimensions A
1.55 in
Dimensions B
1.22 in
Dimensions C
0.74 in
Dimensions D
0.64 in
Dimensions E
0.19 in
Dimensions F
0.41 in
Dimensions G
9/16 in
Dimensions H
3/4 in
Dimensions Hd
0.74 in
Dimensions S
7/16-20
Dimensions T
1/4 in
Specifications As568 O Ring Uniform Size Number
-111
Specifications Body Material
Alloy 400
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
O-ring Sealed Straight Thread
Specifications End Connections
TF x O-ring Sealed Straight Thread
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Straight
Category 6
Griplok® Tube Fittings
