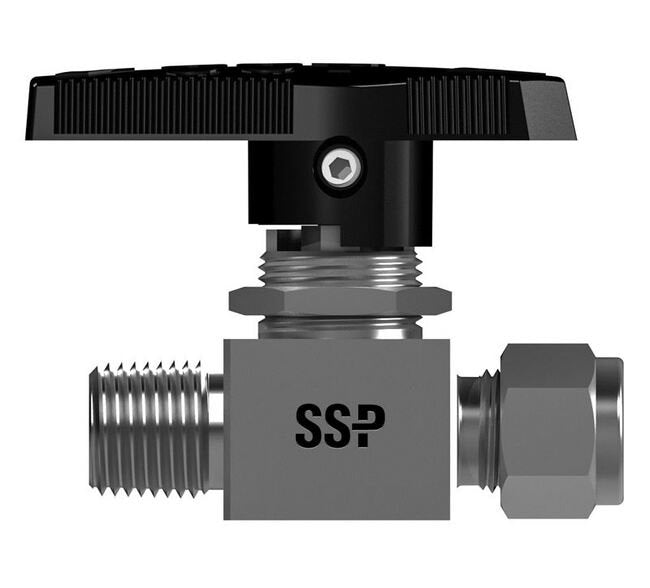

Upgrade your industrial fluid control systems with our Alloy C-276 2-Way Encapsulated Ball Valve from the EB Series. Crafted for precision, this valve features Alloy C-276 construction, 1/4-18 MNPT x 1/4 in Griplok Tube Fitting connections, a Cv of 0.75, and a temperature range of -65 to 300°F. The modified PTFE packing ensures reliable performance under high pressures up to 3000 psig. With its enhanced durability and efficient flow control, this valve is a must-have for demanding applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

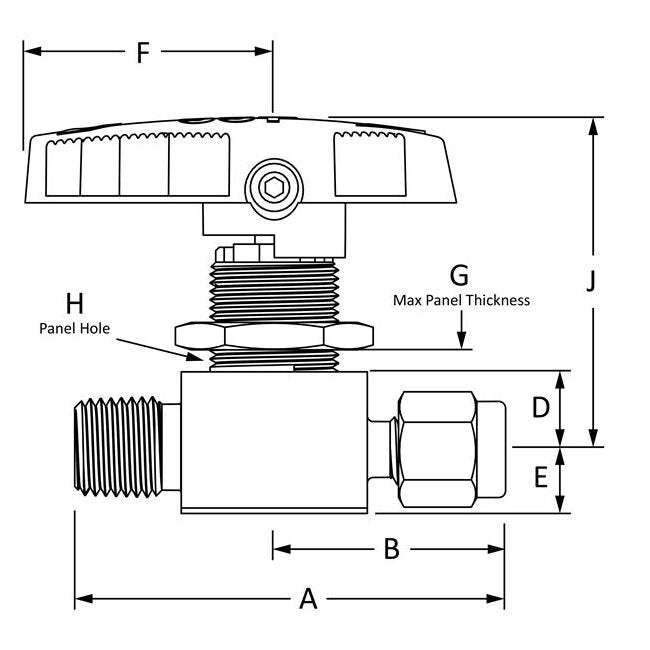

Dimensions A
2.20 in | 55.9 mm
Dimensions B
1.20 in | 30.5 mm
Dimensions D
0.44 in | 11.2 mm
Dimensions E
0.38 in | 9.7 mm
Dimensions F
1.43 in | 36.3 mm
Dimensions G
3/16 in | 4.8 mm
Dimensions H
25/32 in | 19.8 mm
Dimensions J
1.53 in | 38.8 mm
Dimensions W
0.78 in
Specifications Actuation Type
.
Specifications Body Material
Alloy C-276
Specifications Brand Series
EB Series
Specifications Connection 1 Size
1/4-18
Specifications Connection 1 Type
MNPT
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Griplok Tube Fitting
Specifications Cv
0.75
Specifications Handle Color
Orange
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
.
Specifications Orifice
0.187 in | 4.7498 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
4
Specifications Shape
2-way
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Working Pressure
3000 psig | 206 bar
