Alloy C-276 Duolok 5/16 in. Front Ferrule Tube Fitting
Alloy C-276 Duolok 5/16 in. Front Ferrule Tube Fitting
SKU:SOU-bed751
High-quality 5/16 in. Alloy C-276 Duolok Front Ferrule for secure tube fittings.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Alloy C-276 Duolok 5/16 in. Front Ferrule Tube Fitting
$24.99
Quantity: 1
Claim Your Seller Account
Alloy C-276 Duolok 5/16 in. Front Ferrule Tube Fitting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Alloy C-276 Duolok 5/16 in. Front Ferrule Tube Fitting is a premium quality component designed for precision in instrumentation tube fittings. Crafted with durable Alloy C-276 material, this front ferrule ensures a secure connection with a 5/16-inch fitting size. The Duolok brand series guarantees top-notch performance and reliability, making it ideal for industrial applications requiring superior corrosion resistance and leak-tight connections.

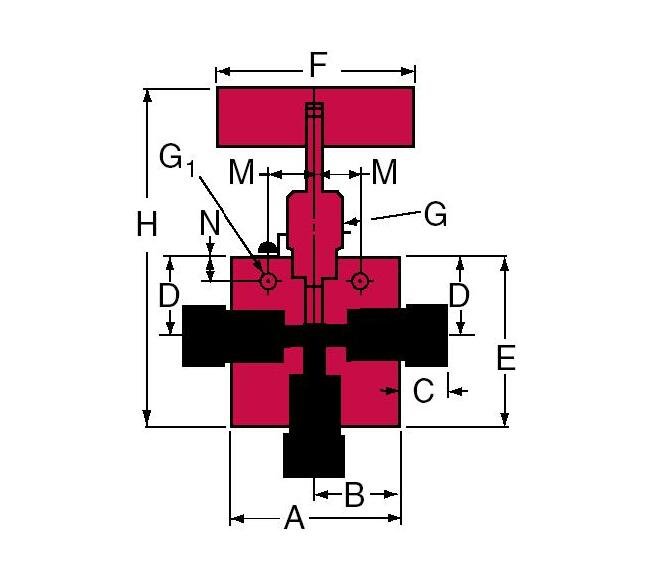

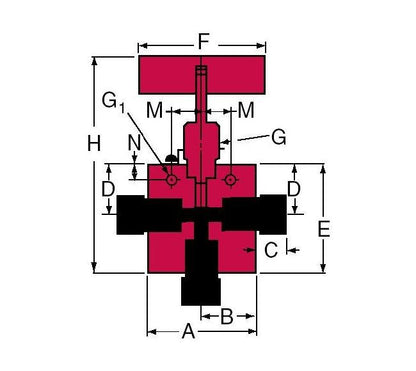

Product Specifications
Specifications A Width
2.62 in | 66.55 mm
Specifications Block Thickness
1.50 in | 38.10 mm
Specifications B Length
1.31 in | 33.27 mm
Specifications Connection Type
F562C
Specifications C Length
0.72 in | 18.29 mm
Specifications D1 Height
1.31 in | 33.27 mm
Specifications D Height
1.31 in | 33.27 mm
Specifications E Height
2.81 in | 71.37 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.28 in | 7.11 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
5.44 in | 138.18 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.078 in | 1.98 mm
Specifications Outside Diameter Tube
9/16 in | 14.29 mm
Specifications Pressure Rating At Room Temperature
30000 psi | 2068 bar
Specifications Rated Cv
0.14
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
0.87 in | 22.0 mm
Specifications Valve Pattern
3-Way / 1 on Pressure
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R60VM4071-SOGWO)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found in the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.Note: All sour service valves and fittings supplied without collars and glands unless otherwise specified.
