Alloy C-276 Tube Fitting Front Ferrules - 1/4 in. Duolok
Alloy C-276 Tube Fitting Front Ferrules - 1/4 in. Duolok
SKU:SOU-9ec582
Precision-engineered Alloy C-276 1/4 in. Tube Fitting Front Ferrules for secure, leak-free connections in high-pressure systems.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Alloy C-276 Tube Fitting Front Ferrules - 1/4 in. Duolok
$29.99
Quantity: 1
Claim Your Seller Account
Alloy C-276 Tube Fitting Front Ferrules - 1/4 in. Duolok
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Alloy C-276 Tube Fitting Front Ferrules are precision-engineered components designed for optimal performance in high-pressure fluid systems. With a fitting size of 1/4 inch and part of the renowned Duolok series, these front ferrules ensure a secure and leak-free connection. The body material, Alloy C-276, offers exceptional corrosion resistance, making it suitable for demanding industrial applications. Meet your instrumentation tube fitting needs with reliability and durability with these front ferrules.

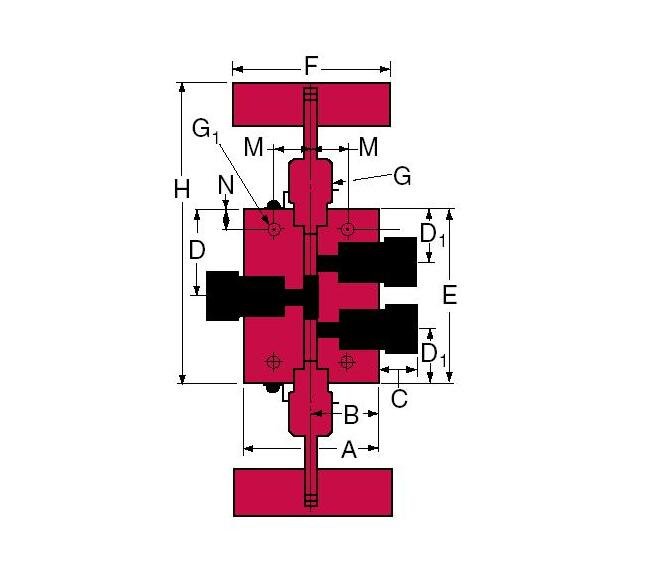

Product Specifications
Specifications A Width
2.62 in | 66.55 mm
Specifications Block Thickness
1.50 in | 38.10 mm
Specifications B Length
1.31 in | 33.27 mm
Specifications Connection Type
F562C
Specifications C Length
0.81 in | 20.57 mm
Specifications D1 Height
1.12 in | 28.45 mm
Specifications D Height
1.88 in | 47.75 mm
Specifications E Height
3.75 in | 95.25 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.28 in | 7.11 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
6.37 in | 161.80 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.125 in | 3.18 mm
Specifications Outside Diameter Tube
9/16 in | 14.29 mm
Specifications Pressure Rating At Room Temperature
20000 psi | 1379 bar
Specifications Rated Cv
0.33
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
0.87 in | 22.0 mm
Specifications Valve Pattern
3-Way / 2-Stem Manifold
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R30VM4001-SOGWO)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found in the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.Note: All sour service valves and fittings supplied without collars and glands unless otherwise specified.
