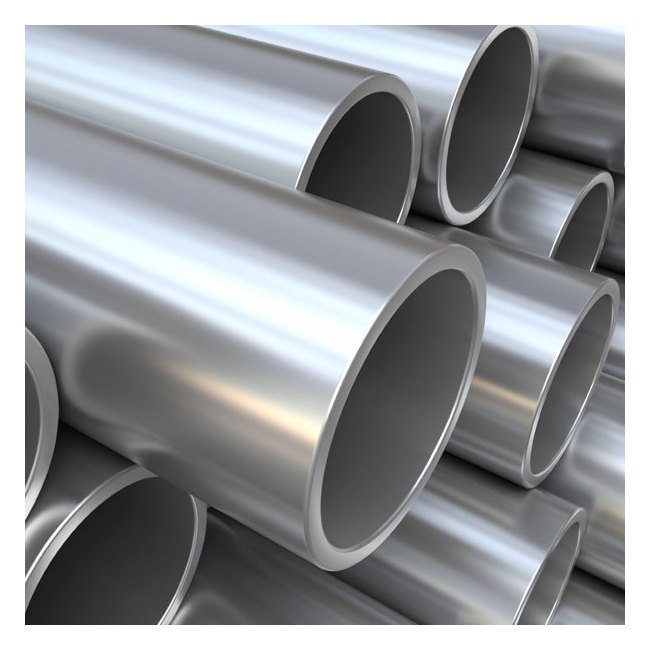

Alloy C22 Seamless/Welded Pipe - 5 Inch Sch. 160
Alloy C22 Seamless/Welded Pipe - 5 Inch Sch. 160
SKU:NIC-c1d427
Cost-effective Alloy C22 Pipe for superior corrosion resistance and ease of forming. Meets ASTM specifications. Ideal for various industries.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Alloy C22 Seamless/Welded Pipe - 5 Inch Sch. 160
$129.99
Quantity: 1
Claim Your Seller Account
Alloy C22 Seamless/Welded Pipe - 5 Inch Sch. 160
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Alloy C22 Seamless or Welded Pipe is a fully austenitic nickel-based superalloy designed for superior corrosion resistance and ease of forming. With attributes like nickel alloy compositions, it meets ASTM specifications ASME Code Case 2226,N-621, SB 619/775, SB 622/829, SB 626/751, B 619/B 775, B 622/B 829, B 626/B 751, DIN 17751, and ISO 6207. Commonly used in chemical processing, oil and gas, and more, this pipe offers excellent resistance to various forms of corrosion. Ideal for applications requiring high performance at elevated temperatures.
Product Specifications
Additional Information Additional Information
Common applications include chemical processing, paper and pulp, oil and gas, pesticide production, sour gas services, and waste incinerators. Providing considerable resistance at elevated temperatures, Inconel® 22 has been adopted for nuclear fuel reprocessing, flue gas desulfurization and seawater-based applications.With the nickel as its primary base, Inconel® 22 alloy includes a chemical composition of 20-22.5% Cr, 12.5-14.5% Mo, a maximum of 2.5% Co, 2.5-3.5% W, and 2-6% Fe. For annealing treatment, temperature ranges should remain between 2020 and 2150 ºF. Inconel® 22 is suited for applications that require superior performance at elevated temperatures and for its full spectrum of anti-corrosion characteristics.
Nickel Alloy Compositions Alloy
Alloy C22
Nickel Alloy Compositions Astm Specification
ASME Code Case 2226 | ASME Code Case N-621 | ASME SB 619/SB 775 | ASME SB 622/SB 829 | ASME SB 626/SB 751 | ASTM B 619/B 775 | ASTM B 622/B 829 | ASTM B 626/B 751 | DIN 17751 | ISO 6207
Nickel Alloy Compositions Density
8.69 g/cm³ | 0.314 lbs/in³
Specifications Material
Hastelloy®
Specifications Nominal Diameter Metric
125 mm
Specifications Nominal Diameter Standard
5 inches
Specifications Od
5.563 inches | 141.3002 mm
Specifications Shapeform
Pipe
Specifications Thickness
Sch. 160
