Upgrade your fastening solutions with our Alloy Steel Socket Head Shoulder Screw featuring a Nylon Pellet. This shoulder screw boasts a precise 3/8-16 thread size, 5/8-inch length, and a plain finish. Crafted from high-quality alloy steel, it offers superior strength and durability. Ideal for industrial applications requiring secure, non-marring fastening. Compliant with Federal/DoD procurement standards and industry certifications, ensuring reliable performance in demanding environments.
Product Specifications
Design Design

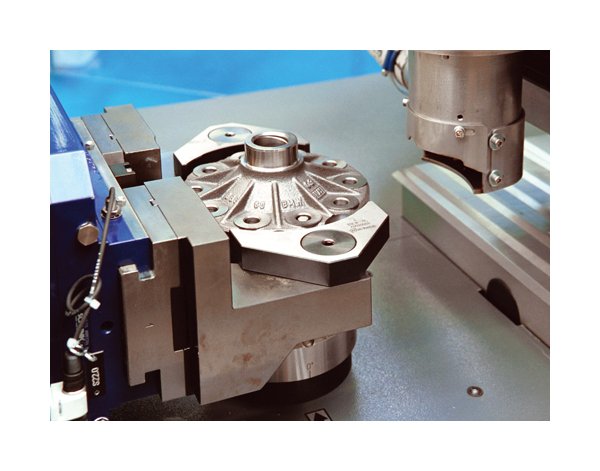

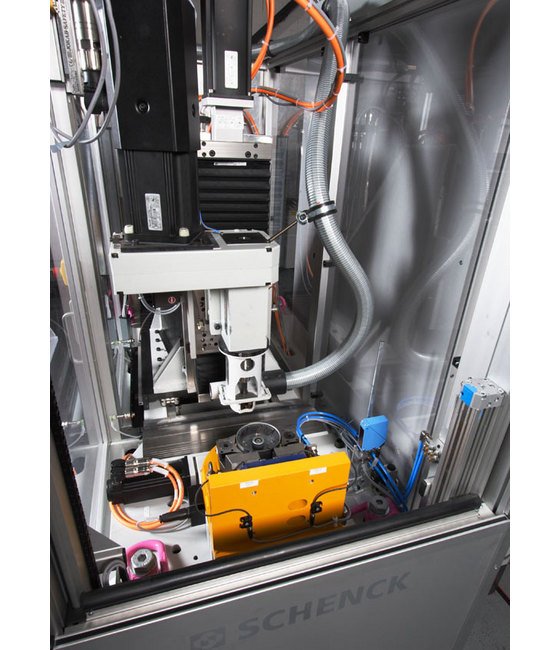

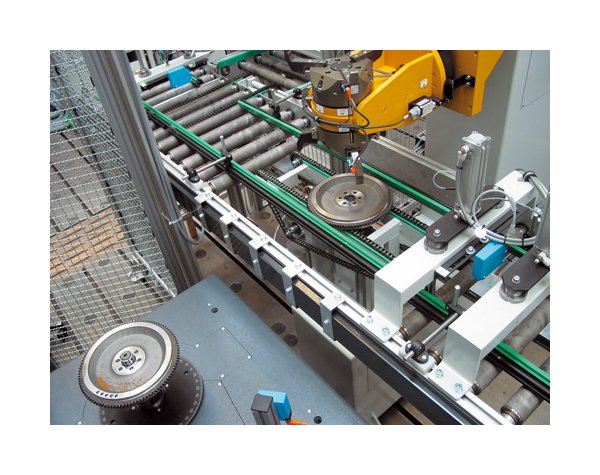

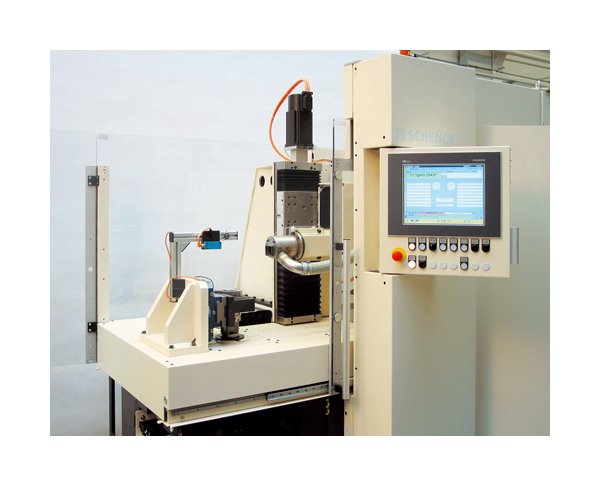

Fully automatic single-station machine with integrated high-performance drill unit. Freely programmable control with fault diagnosis and status display. Clamping of the work-piece to the balancing machine by precision adapters with pneumatic unclamping mechanism. Support device located under the work-piece during drilling, to compensate for the drill force. Unbalance evaluation, correction calculation and correction control through PC controlled measuring unit. Manual loading or optional loading for the machine by a hand-operated system and the corresponding conveying technique.

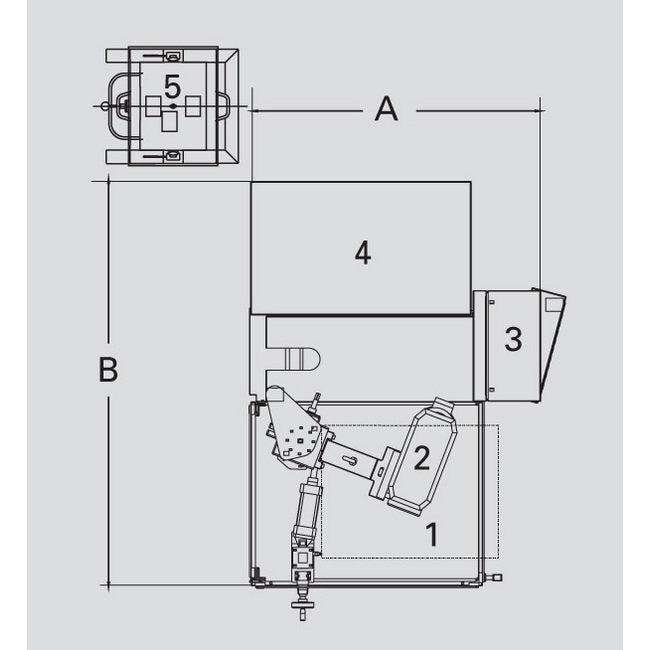

Machine Machine Height C
2400 mm
Machine Machine Length A
3400 mm
Machine Machine Width B
1500 mm
Machine Note For Machine Dimensions
Data non-binding, dependent on the respective equipment supplied
Range Of Application Range Of Application
Measurement and correction of single-plane unbalance in disc shaped rotors with and without shafts, such as flywheels, TMF (twin mass flywheels), brake-drums, gears, clutch-plates, compensation shafts, blowers, etc.Flexible integration into production line and simple change over of the machine to different rotor types by exchange of work-piece interface adapter and selection of rotor type file.Unbalance correction by axial or radial drilling in polar or component format. If the initial unbalance is larger than can be corrected by one drilling action, multiple holes can be drilled.Other unbalance correction methods such as milling, welding, riveting or punching can be integrated into the machine on request. The correction units are flexible and are adapted to the work-piece.
Rotor Maximum Rotor Diameter
240 to 600 mm
Rotor Maximum Rotor Height
10 to 200 mm
Rotor Maximum Rotor Weight
5 to 100 kg
Technical Data Air Pressure
500 kPa
Technical Data Balancing Speed
800 min-1
Technical Data Basic Machine Order Number
R0030600.01
Technical Data Benefits
Automatic change-over | Unbalance correction by punching
Technical Data Brands
SCHENCK
Technical Data Cycle Time
25 seconds
Technical Data Measuring Uncertainty
2 to 20 g/mm
Technical Data Measuring Unit
CAB 950
Technical Data Power Consumption
25 kV·A
Technical Data Required Air Flow
1 m³/h
