Alloy Steel Shoulder Screw with Nylon Pellet Insert - 1/2-13 x 2 1/4 - Plain Finish

Name: Alloy Steel Shoulder Screw with Nylon Pellet Insert - 1/2-13 x 2 1/4 - Plain Finish
Brand: SCHENCK USA CORP.
SKU: HOR-2b3d9e
Price: 7.99 USD
Availability: OutOfStock

SKU:HOR-2b3d9e

High-strength Alloy Steel Shoulder Screw with Nylon Pellet for secure and stable fastening in government-grade applications.

$7.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Alloy Steel Shoulder Screw with Nylon Pellet Insert is a durable fastening solution designed for precision and stability. With a thread size of 1/2-13 and a length of 2 1/4 inches, this screw offers exceptional strength and corrosion resistance. The nylon pellet ensures secure fastening and vibration resistance. Compliant with federal procurement standards, this shoulder screw is ideal for government and institutional applications where reliability is paramount.

Product Specifications

Design Design

Due to their modular structure, these machines can be adapted easily to the task in hand. The length of the machine bed is dependent on the length of the rotor, the required height of the bearing pedestals is determined by the rotor diameter. If the rotor is mounted on its own bearing journals, these will be supported by roller carriages. Depending on the requirements imposed by the rotor, sleeve bearings may also be used.Rotors requiring high torques are driven through variable-speed gearboxes and universal joint shaft. Lightweight rotors with smooth surfaces may be driven with the help of a belt drive system.

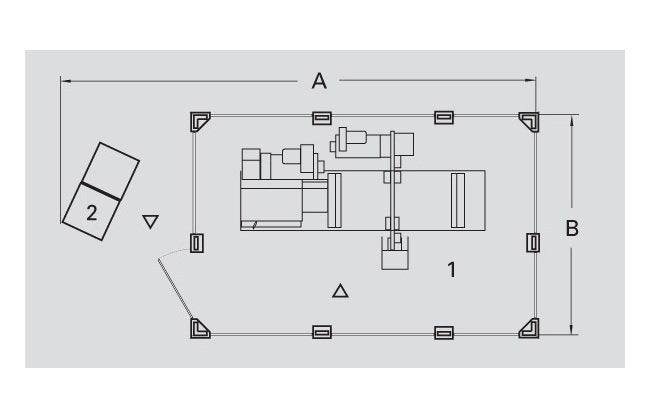

Machine Machine Depth B

4050 mm

Machine Machine Height C

2000 mm

Machine Machine Width A

6600 mm

Machine Note For Machine Dimensions

Data non-binding, dependent on the respective equipment supplied

Options Measuring Unit Cab 920 Order Number

R0061401.01

Options Options

Options Report Printer Order Number

R0061405.01

Options Underslung Belt Drive Bu Order Number

R0060203.01

Power Supply Alternating Current Ac Voltage

400 V

Power Supply Alternating Current Ac Voltage Tolerance

+6 % | -10 %

Power Supply Frequency

500 Hz

Power Supply Number Of Phase

Range Of Application Range Of Application

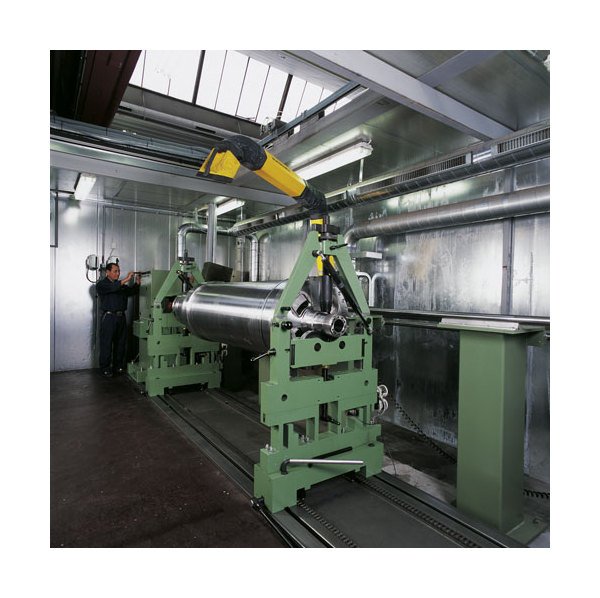

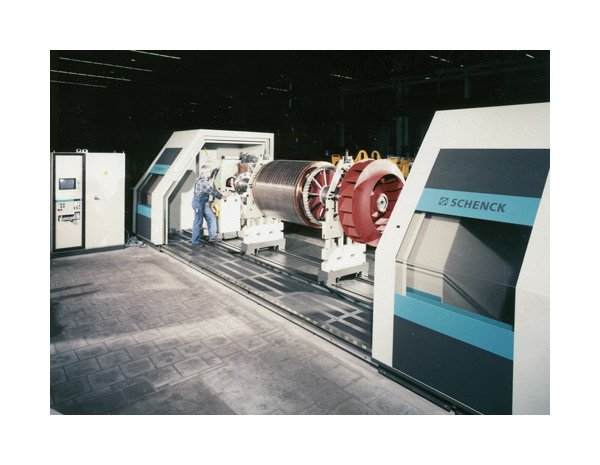

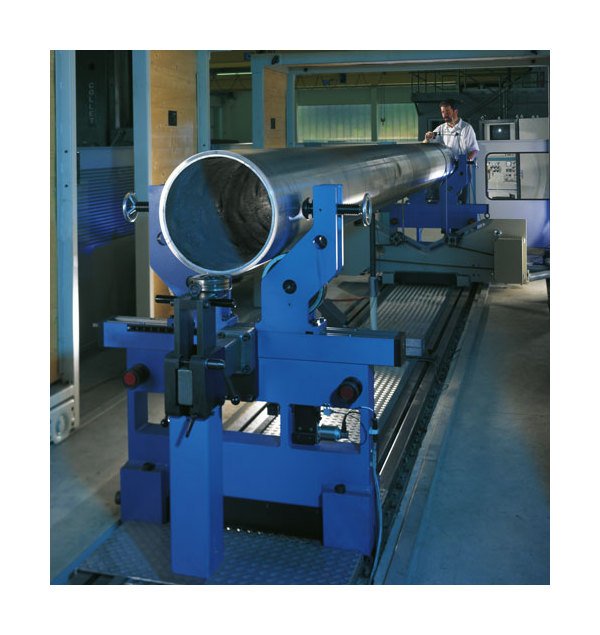

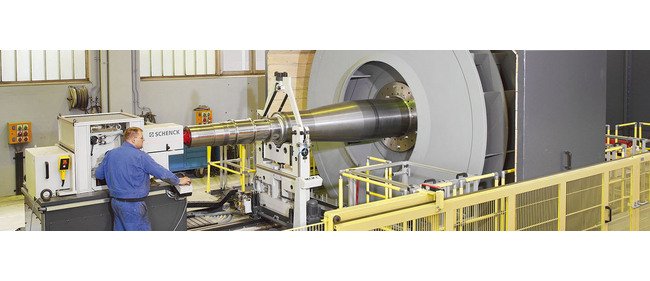

Universal balancing machines series HM6-HM80 are conceived for precise balancing of both rigid and flexible rotors.Typical applications are:Blowers and fans for a variety of industriesHigh-speed and low-speed rollers for paper and thin sheet productionElectrical short-circuit armatures and generators for the electrical industrySeparators/centrifuges for water processing

Rotor Bearing Journal Diameter

70 to 600 mm

Rotor Maximum Bearing Distance

5050 mm

Rotor Maximum Rotor Diameter

2800 mm

Rotor Maximum Rotor Weight

50000 kg

Special Features Special Features

With the appropriate machine design and a suitable protection device the machines can also be used for high-speed balancingBearing force monitoring for automatic shut-down in case of overloadContact-free measurement of concentric running of rollersGraphical display of acceleration curve with 1f and 2f measurement (CAB 920)Wide range of supplementary modules, e.g. for mass correction

Technical Data Air Pressure

600 kPa

Technical Data Basic Machine Order Number

R0061400.01

Technical Data Brands

SCHENCK

Technical Data Drive Power

75 kW

Technical Data Measuring Unit

CAB 820

Technical Data Minimum Achievable Residual Unbalance Maru Per Ba

80 g/mm

Technical Data Minimum Balancing Speed

120 min-1

Technical Data Sound Pressure Level With Belt Drive

70 to 80 dBA
