Alloy Steel Socket Head Shoulder Screw with Nylon Pellet - 1/2-13 x 1/2
Alloy Steel Socket Head Shoulder Screw with Nylon Pellet - 1/2-13 x 1/2
SKU:VER-e515df
High-quality Alloy Steel Shoulder Screw with Nylon Pellet, 1/2-13, 1/2" length, ideal for secure and non-marring fastening solutions.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Alloy Steel Socket Head Shoulder Screw with Nylon Pellet - 1/2-13 x 1/2
$12.99
Quantity: 1
Claim Your Seller Account
Alloy Steel Socket Head Shoulder Screw with Nylon Pellet - 1/2-13 x 1/2
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Alloy Steel Socket Head Shoulder Screw with Nylon Pellet is a versatile fastening solution designed for durability and precision. With a thread size of 1/2-13 and a length of 1/2 inches, this screw offers reliable strength and stability in various applications. The addition of a nylon pellet ensures secure fastening, making it ideal for projects requiring vibration-resistance and non-marring properties. Its plain finish and alloy steel construction enhance corrosion resistance and longevity, meeting the rigorous standards of government and institutional procurement requirements.
Product Specifications
Additional Information Additional Information
Can be equipped for axial or radial compensation of unbalance"Crane hook solution"
Design Design

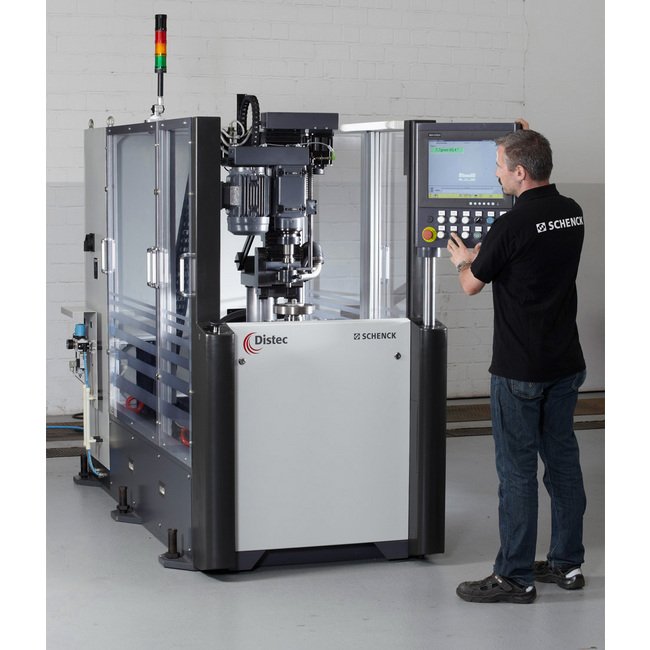

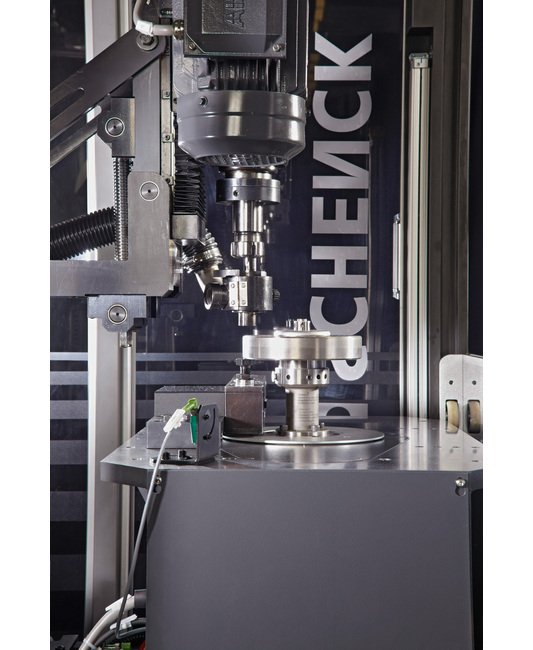

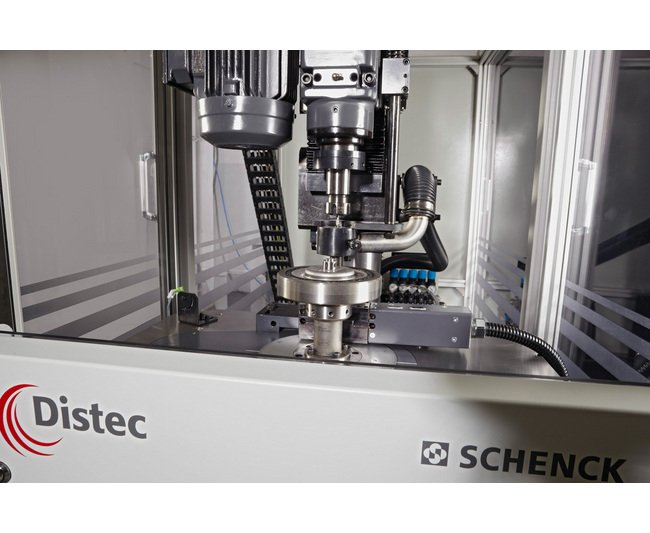

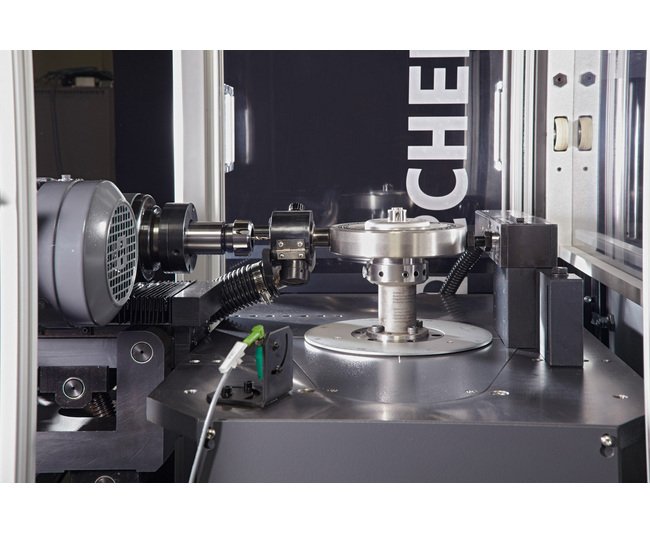

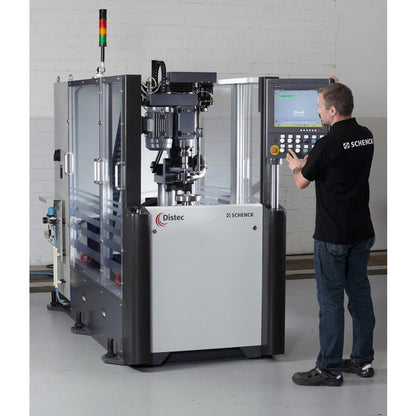

The machine consists of a vertical balancing device with an attached, automatically operating drilling unit. The body to be balanced is clamped on the balancing machine by means of a spring-force actuated receptacle that is pneumatically released. The measuring device CAB 870 is used for determining the unbalance and computation of compensation.

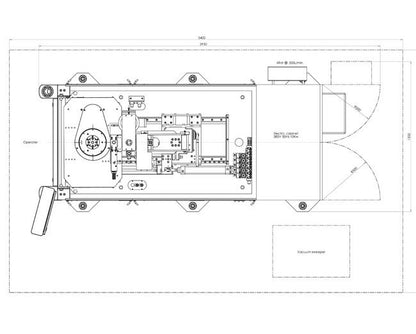

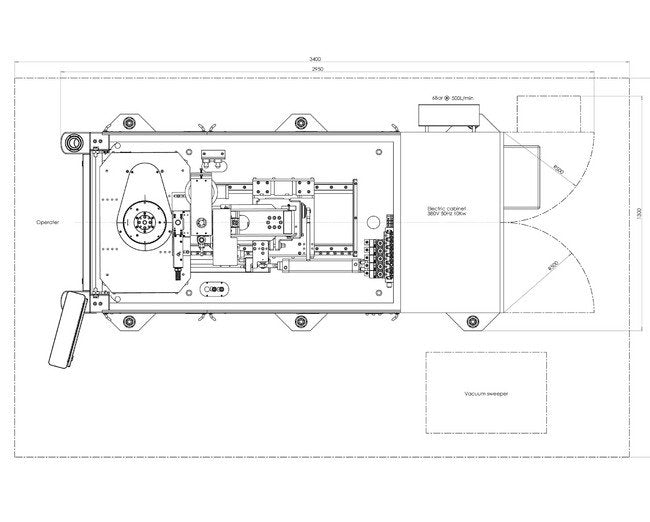

Machine Machine Depth
2700 mm
Machine Machine Height
1800 mm
Machine Machine Width
1200 mm
Mains Connections Frequency
50 Hz | 60 Hz
Mains Connections Number Of Phase
3
Mains Connections Voltage
400 V
Options Options
Interface for auto load/unloadVacuum unitExtension rotor weight max. 70 kg (rotor plus adapter)Double drilling spindleMeasurement static / dynamic
Range Of Application Range Of Application
Distec is a versatile automatic balancing machine for balancing disc-shaped rotors, like flywheel, brake disc, twin-mass flywheel, pulley, vibration damper, gear wheel, drive disc, brake drum, differential housing, clutch parts, converter components, double clutch components, hybrid rotors. The rotors are received in their centring hole, the unbalance measurement occurs on one or two levels.The unbalance compensations occur through vertical or horizontal drilling, which can be converted independently of work piece in a user friendly/easy manner.Distec allows both manual as well as automatic loading. The manual loading occurs through the pneumatically opening front disc. Automatic loading can be carried out by a loading portal, a pallet belt-conveyor, or a robot.
Rotor Maximum Rotor Diameter
500 mm
Rotor Maximum Rotor Height
150 mm
Rotor Maximum Rotor Weight
30 kg
Special Features Special Features
Short lead time to deliveryUniversally applicableAutomatic compensation through axial or radial drillingAutomatic measuring cycle is selectable with stepless, adjustable values for run-up, measuring and braking time
Specifications 2 Color Painting
RAL 7024 (Graphite Gray) | RAL 7035 (Light Gray)
Technical Data Brands
SCHENCK
Technical Data Measuring Uncertainty
4 g/mm
Technical Data Measuring Unit
CAB 870 with touchscreen-operation
Technical Data Total Weight
2100 kg
