Alloy Steel Socket Head Shoulder Screw with Nylon Pellet 1/2-13 x 1 3/4 Plain
Alloy Steel Socket Head Shoulder Screw with Nylon Pellet 1/2-13 x 1 3/4 Plain
SKU:VER-54607c
Enhance fastening efficiency with our Alloy Steel Socket Head Shoulder Screw featuring a Nylon Pellet for superior grip and durability.
Regular price
$9.99
Regular price
Sale price
$9.99
Unit price
per
Initiate Order
Alloy Steel Socket Head Shoulder Screw with Nylon Pellet 1/2-13 x 1 3/4 Plain
$9.99
Quantity: 1
Claim Your Seller Account
Alloy Steel Socket Head Shoulder Screw with Nylon Pellet 1/2-13 x 1 3/4 Plain
$9.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your fastening solutions with our Alloy Steel Socket Head Shoulder Screw featuring a Nylon Pellet. This versatile screw, with a precise thread size of 1/2-13 and a length of 1 3/4 inches, offers exceptional strength and durability. The Nylon Pellet enhances grip and prevents loosening in high-vibration applications. Compliant with stringent industry standards, this screw is ideal for both consumer and institutional buyers seeking reliable fastening solutions.
Product Specifications
Additional Information Additional Information
Protection device C 600 according ISO 21940-23Measuring unit CAB 820, optional CAB 920
Design Design
Hard-bearing, vertical balancing machine in molded mineral design.Measuring unit with permanent calibration and digital signal processing.Measuring unit CAB 820 with colored, graphics capable LCD-Display. Cache memory for 99 rotor data and extensive basic configuration for the  different correction methods.Optional: CAB 920 with Windows operating system, TFT color display with touchscreen function and vector view of the unbalance. Designed as network compatible embedded PC with memory card and permanent storage of the measured unbalance values. Simplest  menu navigation in "Easy Mode".The workplace exists essentially of the following components: control cabinet with measuring unit and machine with protection and operating elements
Features Features
The machine is usable without foundation, but with screw connectionShort rebuilding times, cause of the hard-bearing principleHigh balancing accuracyErgonomic designContinuously variable drive unitsselectable automatic operating sequence with adjustable acceleration and braking times.Extendable with integrated drilling unit

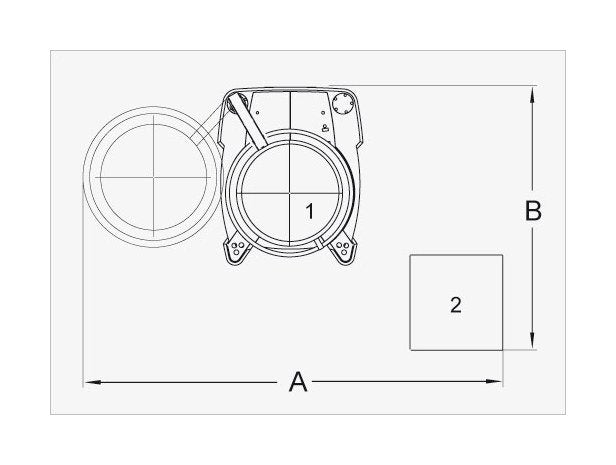

Machine Machine Depth B
850 mm
Machine Machine Height C
1200 mm
Machine Machine Width A
850 mm
Machine Note For Machine Dimensions
Data non-binding, dependent on the respective equipment supplied
Power Supply Alternating Current Ac Voltage
400 V
Power Supply Frequency
50 Hz
Power Supply Number Of Phase
3
Power Supply Voltage Tolerance
+6 % | -10 %
Range Of Application Range Of Application
Vertical balancing machines of the type VIRIO10 - VIRIO300 for 1 or 2 planes, are well dedicated for all workpieces without own shafts, like pressure plates, brake discs, brake drums, flanges, housings, clutch parts, blowers, knives, impellers, pulleys, saws, grinding discs, flywheels, dampers, turbo charger a.s.o. They are applied in the make-to-order-production and for small series productions. The machines are rated for an upright operation and usable on variously stations.The rebuilding to different rotor types is practicable within shortest time by changing the adapters. Available are 4 different drive units: 1.5 kW, 2.2 kW, 4.0 kW, or a servo drive for automatic indexing. For the indication of unbalance we provided the polar display, regular or irregular components with integration of forbidden zones. We also provided a milling software for the external correction. The correction data can be sent to the external milling machine via ASCII - interface (CAB 700), or directly (CAB 920).The correction of unbalance can be done directly on the machine by adding weight or by reducing weight, using an integrated drilling unit. The indication of the mass of unbalance to be reduced will be announced by the numbers, angle and depth of holes to be drilled. During the correction a stylized drill shows the proceed.Optional deliverable are correction units for welding, riveting and grinding.
Rotor Maximum Rotor Diameter
810 mm
Rotor Maximum Rotor Height
450 mm
Rotor Maximum Rotor Weight
300 kg
Rotor Spindle Diameter
80 mm
Rotor Spindle Type
H7
Technical Data Accuracy 2 Planes
20 to 50 | 20 to 100
Technical Data Balancing Speed
120 to 550 min-1
Technical Data Basic Machine Options
Balancing in two planes | Measuring instrument CAB 920 | Pneumatic spindle lock device | Pneumatic unclamping system | Software Options - On Request
Technical Data Brands
SCHENCK
Technical Data Frequency Squirrel Drive
4.0 kW
Technical Data Measuring Unit
CAB 820
Technical Data Servo Drive
25 N·m
Technical Data Sound Pressure Level With Class C Protection Lpa
60 to 70 dBA
