Alloy Steel Socket Head Shoulder Screw with Nylon Pellet, 1/2-13 x 2, Plain Finish
Alloy Steel Socket Head Shoulder Screw with Nylon Pellet, 1/2-13 x 2, Plain Finish
SKU:STA-3d0d46
Premium Alloy Steel Socket Head Shoulder Screw with Nylon Pellet, Ideal for Institutional Use
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Alloy Steel Socket Head Shoulder Screw with Nylon Pellet, 1/2-13 x 2, Plain Finish
$12.99
Quantity: 1
Claim Your Seller Account
Alloy Steel Socket Head Shoulder Screw with Nylon Pellet, 1/2-13 x 2, Plain Finish
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your fastening solutions with our premium Alloy Steel Socket Head Shoulder Screw featuring a Nylon Pellet for secure fastening. This screw, sized at 1/2-13 x 2 inches with a thread length of 1 1/4 inches, is designed for durability and reliability. The Plain finish ensures a clean look while the alloy steel construction guarantees strength. Ideal for applications requiring precision and strength, this screw is a versatile choice for various projects. Compliant with federal procurement standards, this screw meets high-quality benchmarks for institutional and government use.
Product Specifications

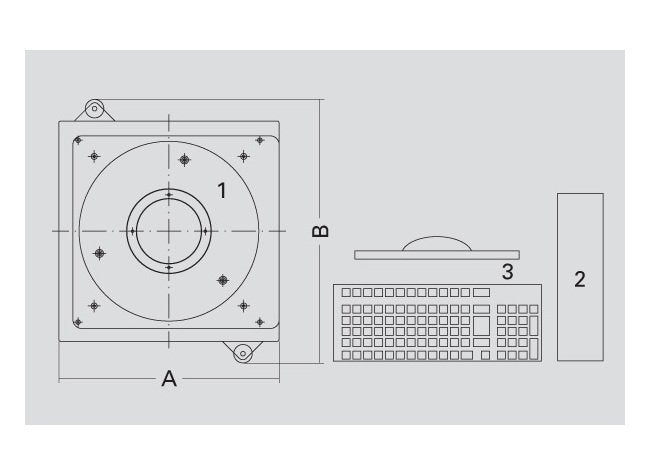

Machine Depth B
390 mm
Machine Height C
120 mm
Machine Note For Dimensions
Data non-binding, depending on respective equipment 44
Machine Width A
480 mm
Power Supply Frequency
50 Hz
Power Supply Voltage
230 V
Range Of Application Range Of Application

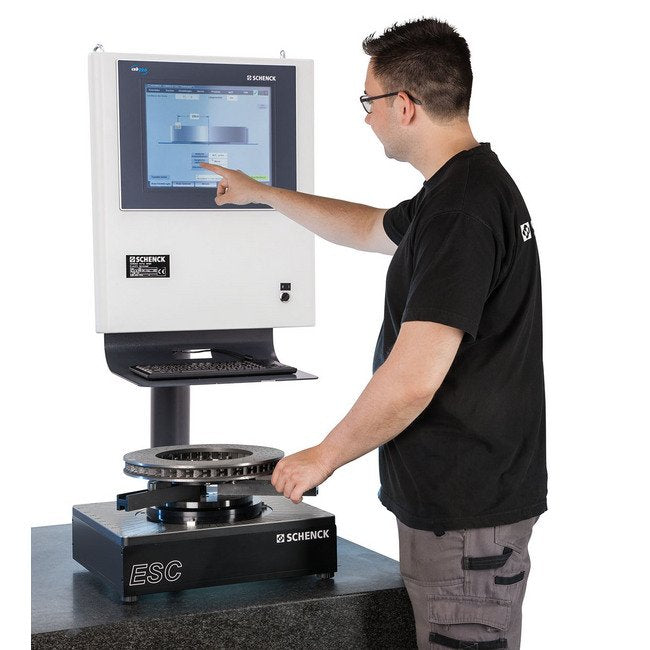

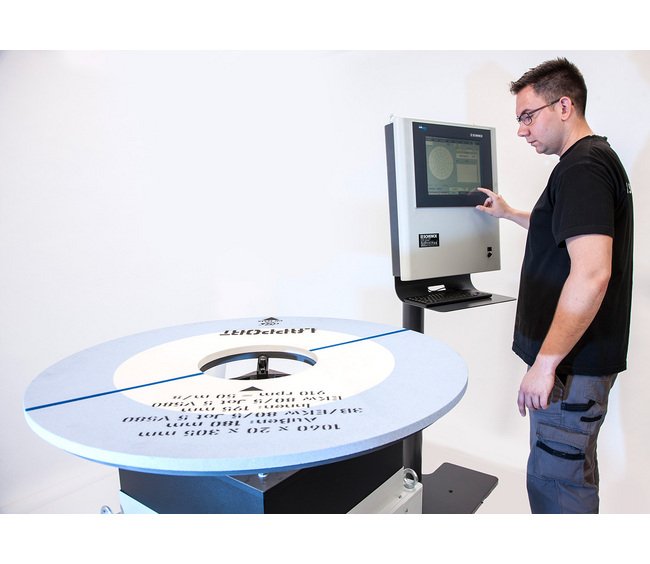

Measurement of the static unbalance of disc-shaped rotors such as unfired grinding discs, propellers and ventilators.Unbalance correction by addition of material directly on the machine or by removal of material on separate correction units.Can be used for mere unbalance measurement, for tasks in production involving unbalance correction, for incoming goods inspection, for re-balancing and for weight measurement.
Special Features Special Features

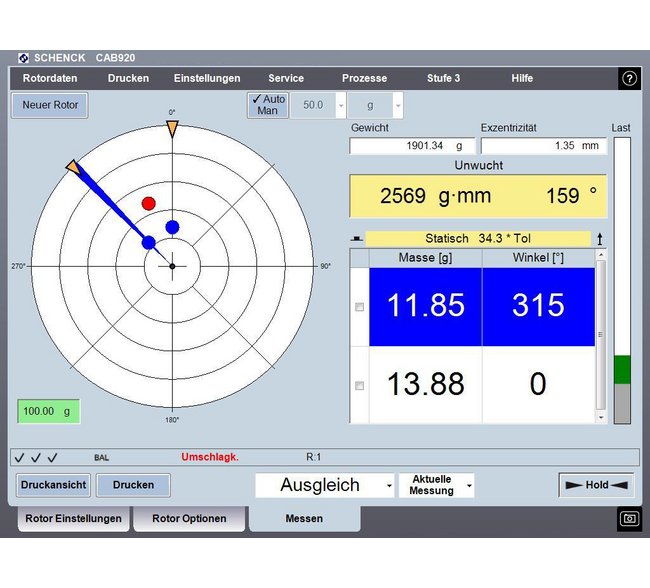

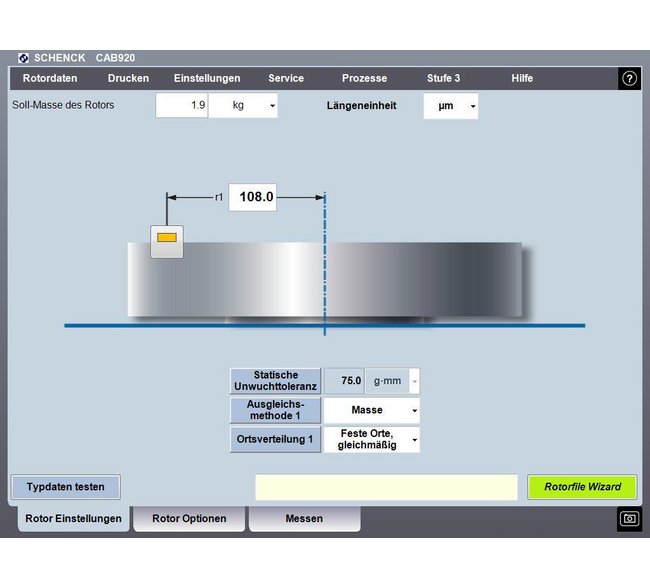

Direct display on achieving of tolerance limit, operator prompting during calibration process, memory for calibration data for easy change-over from one work-piece type to the next at the push of a button.Compact design ensures optimum ease of deployment.Program for compensating of adapter errors, test program displaying operator or system errors, process control through host computer is possible, integral product data base.
Technical Data Available Versions
Enclosure-Mounted Version for Large Rotors | Table-Top Version
Technical Data Basic Machine Order Number
R0050600.02
Technical Data Brands
SCHENCK
Technical Data Diameter
1500 mm
Technical Data Load Carrying Capability Of The Balancing Unit
60 to 200 kg
Technical Data Maximum Measurable Unbalance
330 kg/mm
Technical Data Measuring Time
2 to 5 seconds
Technical Data Measuring Uncertainty
80 g/mm
Technical Data Rotor Applications
Complete wheels | Grinding discs | Propellers | Railway carriage wheels
