Alloy Steel Socket Head Shoulder Screw with Nylon Pellet, 1/2-13 x 3, Plain Finish
Alloy Steel Socket Head Shoulder Screw with Nylon Pellet, 1/2-13 x 3, Plain Finish
SKU:HOR-599244
High-quality Alloy Steel Socket Head Shoulder Screw with Nylon Pellet, 1/2-13 x 3, Plain Finish. Ideal for industrial applications.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Alloy Steel Socket Head Shoulder Screw with Nylon Pellet, 1/2-13 x 3, Plain Finish
$12.99
Quantity: 1
Claim Your Seller Account
Alloy Steel Socket Head Shoulder Screw with Nylon Pellet, 1/2-13 x 3, Plain Finish
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Alloy Steel Socket Head Shoulder Screw features a durable nylon pellet for added grip and stability. With precise specifications of 1/2-13 thread size and 3-inch length, it ensures secure fastening in various applications. Made of high-quality alloy steel with a plain finish, this screw offers excellent strength and corrosion resistance. Ideal for industrial settings requiring reliability and precision, this screw meets the highest standards of durability and performance.
Product Specifications

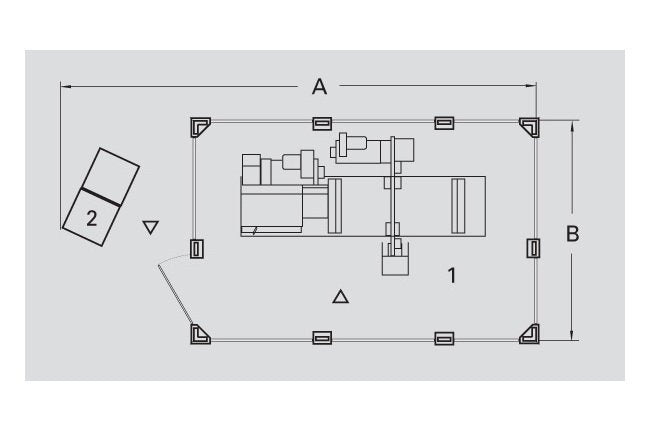

Machine Machine Depth B
2250 mm
Machine Machine Height C
2000 mm
Machine Machine Width A
2250 mm
Machine Note For Machine Dimensions
Data non-binding, dependent on the respective equipment supplied
Options Measuring Unit Cab 920 Order Number
R0060501.01
Options Options

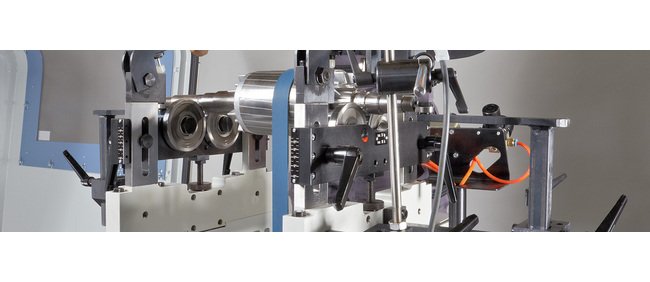

Angular Roller Bearings | End Drive (Other data upon request) | Mass Correction System - On Request | Measuring Unit (CAB 920) | Overslung Belt Drive (BK) | Protective Device as Per ISO 7475 (Up to HM 10 with Protection Class C, in all other Cases Protection Class B) | Report Printer | Software Options - On Request | Underslung Belt Drive (BU) | Various Roller Carriage - On Request
Options Report Printer Order Number
R0060505.01
Power Supply Alternating Current Ac Voltage
400 V
Power Supply Alternating Current Ac Voltage Tolerance
+6 % | -10 %
Power Supply Frequency
500 Hz
Power Supply Number Of Phase
3
Range Of Application Range Of Application

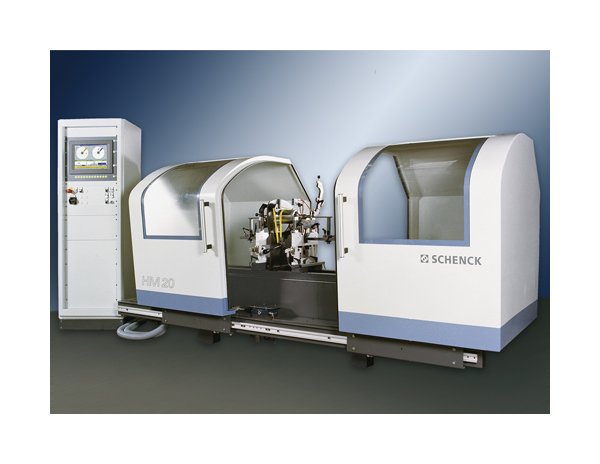

Universal balancing machines series HM enable precise balancing of a wide spectrum of rotors. They are suitable for cylindrical rotors having their own shaft journals and for balancing disc shaped rotors on balancing arbors.Permanent calibration, ergonomic design and a logical operating sequence facilitate operation.A modular design principle and a wide range of accessories make the machine highly flexible.Schenck universal balancing machines series HM are a highly efficient investment, both for one-off rotors and for small batches.

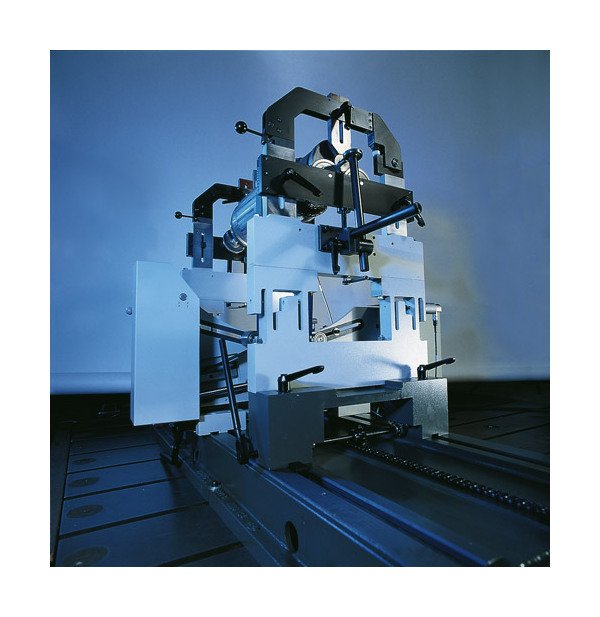

Rotor Bearing Journal Diameter
9 to 140 mm
Rotor Maximum Bearing Distance
1330 mm
Rotor Maximum Rotor Diameter
1260 mm
Rotor Maximum Rotor Weight
300 kg
Sequence Of Operations Sequence Of Operations
Manually load work-piece on the bearing pedestals, close hold-down bearings and connect drive (belt drive or drive shaft).Close protection device and start automatic measuring sequence:Acceleration, determination and display of the unbalance on the measuring instrument, brake. The readout is retained on the measuring instrument even after the measuring run has ended.Open protection device, manually correct unbalance (if required).Check correction result (with measuring instrument displaying whether the tolerance has been achieved) and unload the rotor from the machine.
Special Features Special Features
Easy to operate - hard-bearing principle eliminates the need for calibration runsProvides for correction in two planes or separate according to static and couple unbalanceRotors can be mounted on their original shafts or on mounting arbors, optionally with mounted anti-friction bearingsAngle indexing display in case of belt driveAutomatic measuring cycle with infinitely variable settings for acceleration, measuring and braking timeUpgradeable by many additional modules e.g. for mass correction
Technical Data Air Pressure
600 kPa
Technical Data Basic Machine Order Number
R0060500.02
Technical Data Brands
SCHENCK
Technical Data Drive Power
2.2 kW
Technical Data Measuring Unit
CAB 820
Technical Data Minimum Achievable Residual Unbalance Maru Per Ba
2 g/mm
Technical Data Minimum Balancing Speed
120 min-1
Technical Data Sound Pressure Level With Belt Drive Lpa
60 to 70 dBA
