Alloy Steel Socket Head Shoulder Screw with Nylon Pellet 1/4-20 x 1 1/2 Plain
Alloy Steel Socket Head Shoulder Screw with Nylon Pellet 1/4-20 x 1 1/2 Plain
SKU:VER-70157b
Enhance fastening with Alloy Steel Socket Head Screw, Nylon Pellet, 1/4-20 x 1 1/2, Plain finish. Durable & precise for industrial use.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Alloy Steel Socket Head Shoulder Screw with Nylon Pellet 1/4-20 x 1 1/2 Plain
$12.99
Quantity: 1
Claim Your Seller Account
Alloy Steel Socket Head Shoulder Screw with Nylon Pellet 1/4-20 x 1 1/2 Plain
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your fastening solutions with our Alloy Steel Socket Head Shoulder Screw featuring a Nylon Pellet. This 1/4-20 screw, 1 1/2 inches in length, with a plain finish, offers exceptional durability and precise threading. Perfect for industrial applications, the screw's alloy steel construction ensures reliable performance. Compliant with Federal procurement standards, this screw is ideal for a wide range of projects requiring secure and lasting fastening.
Product Specifications
Additional Information Additional Information
No hydraulicNC controlled power chuck for clamping the brake discs during correction
Design Design

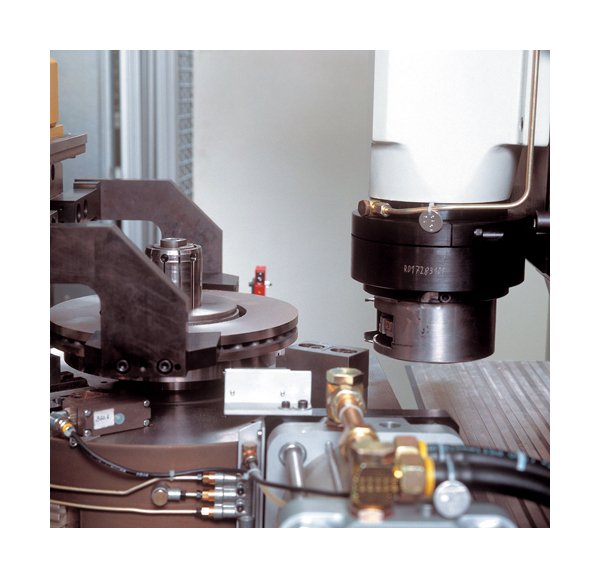

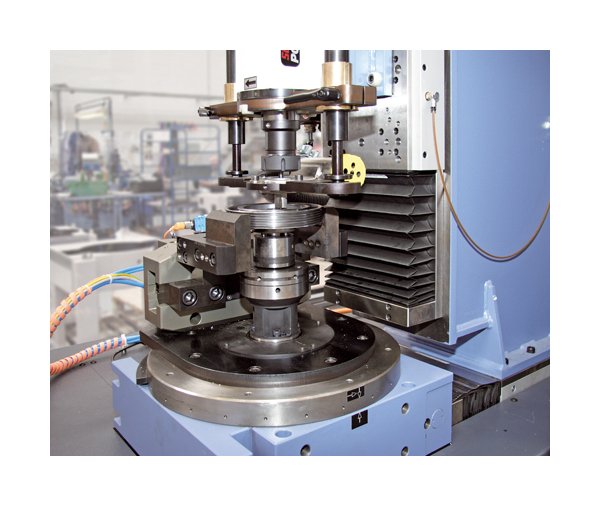

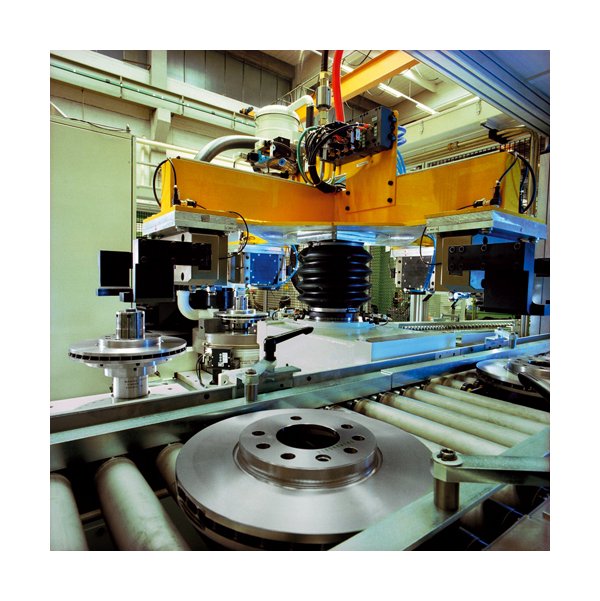

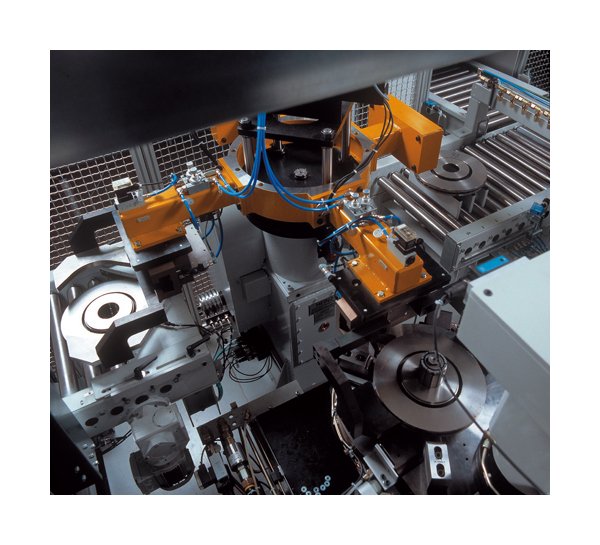

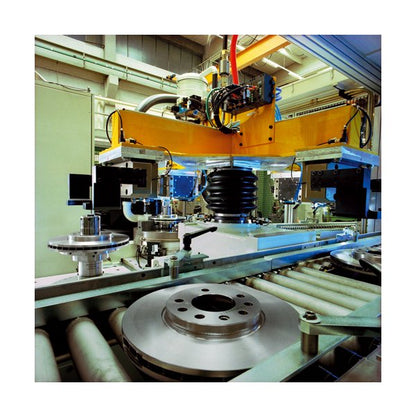

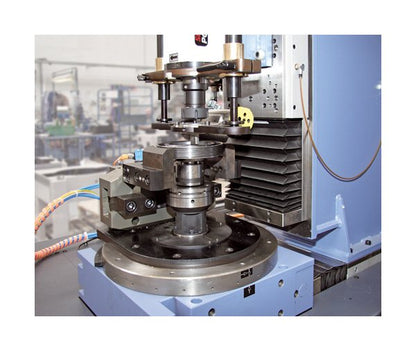

Fully automatic machines with high-performance milling unit, horizontal feed axis, automatic height adjustment as option, rotary table and NC controlled power chuck for absorbing the milling forces during correction.Multiple-station execution with integrated transport device.Freely programmable control with fault diagnosis with PROTOOL and Pro-Agent. Clamping of the rotor by precision adapter with pneumatic unclamping mechanism.Unbalance evaluation, correction calculation and control with an industrial PC based measuring unit.Transport is controlled by two servo axes - one for the lifting movement, the other for the rotation. This ensures highest positioning accuracy.Manual or automatic loading and unloading of the machine.

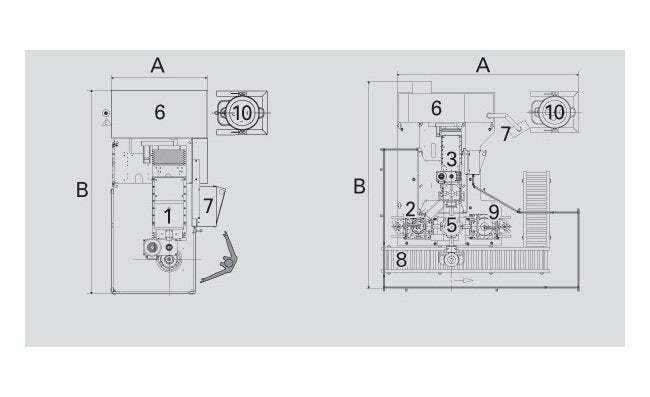

Machine Machine Depth B
1900 mm
Machine Machine Height C
2500 mm
Machine Machine Width A
3900 mm
Machine Note For Machine Dimensions
Data non-binding, dependent on the respective equipment supplied
Options Automatic Height Adjustment Order Number With Twin Milli
R0040204.01
Options Automatic Spindle Control Order Number
R0040201.01
Options Internal Index Balancing Order Number
R0040202.01
Options Mixes Production Order Number
R0040203.01
Options Options
Automatic Height Adjustment with Twin Milling Cutter | Automatic Spindle Control | Internal Index Balancing | Mixes Production | Swarf Extractor
Options Swarf Extractor Order Number
R0040203.01
Range Of Application Range Of Application
Measurement and milling correction of unbalance in disc-shaped rotors without their own shaft - such as brake discs, brake drums and flywheels in one plane. Flexible application in series production with simple change over of the machine to other rotor types by manually or fully-automatically changing workpiece adapter parts. Rotors can be fed to the machine in type batches or in random sequence.Unbalance correction through polar, radial plunge-milling. In case of larger unbalances, the rotors are turned, increasing the amount of material removed.
Rotor Maximum Rotor Brake Disc Height
130 mm
Rotor Maximum Rotor Diameter
400 mm
Rotor Maximum Rotor Weight
50 kg
Special Features Special Features
CAB 950 PC-based measuring instrument with TFT touchscreen and digital signal processing for efficient suppression of noise signals and highest measuring accuracy.Features: Digital correction control, improved operator prompting and largely automatic setup. Software modules for rotor-dependent calculation and control of the most common, optimized correction methods (polar and in components). Large memory for rotor type data for fast setup of measuring instrument. Machine operation integrated with CAB 950.Diagnostic programs and fault display by means of PROTOOL/Pro-Agent. Statistics software for checking the quality of production. External interface for data communication and printout. Display in all languages of the European Union; other languages available upon request.
Technical Data Air Pressure
600 kPa
Technical Data Approximate Cycle Time
25 seconds
Technical Data Balancing Speed
800 min-1
Technical Data Basic Machine Order Number
R0040200.01
Technical Data Benefits
Automatic loading Rotor | Combined measuring / correction station | Power chuck with NC clamping technology, stroke 55/85 mm | Transport unit with 2 servo axes
Technical Data Brands
SCHENCK
Technical Data Cutting Diameter At 16 Degree Angle
125 mm
Technical Data Measuring Uncertainty
2 to 10 g/mm
Technical Data Measuring Unit
CAB 950
Technical Data Power Consumption
17 kV·A
