Alloy Steel Socket Head Shoulder Screw with Nylon Pellet, 2 1/2" Plain Finish
Alloy Steel Socket Head Shoulder Screw with Nylon Pellet, 2 1/2" Plain Finish
SKU:HOR-ad3056
High-quality Alloy Steel Socket Head Shoulder Screw with Nylon Pellet for superior strength and durability.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Alloy Steel Socket Head Shoulder Screw with Nylon Pellet, 2 1/2" Plain Finish
$49.99
Quantity: 1
Claim Your Seller Account
Alloy Steel Socket Head Shoulder Screw with Nylon Pellet, 2 1/2" Plain Finish
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your fastening solutions with our Alloy Steel Socket Head Shoulder Screw featuring a Nylon Pellet for enhanced grip and durability. With a length of 2 1/2 inches and a plain finish, this screw offers exceptional strength and corrosion resistance, making it ideal for a wide range of applications. Precision-engineered from high-quality alloy steel, this screw is designed to withstand heavy loads and harsh environments, ensuring reliable performance you can trust. Compliant with federal procurement standards and industry certifications, this screw is a top choice for government and institutional buyers.
Product Specifications

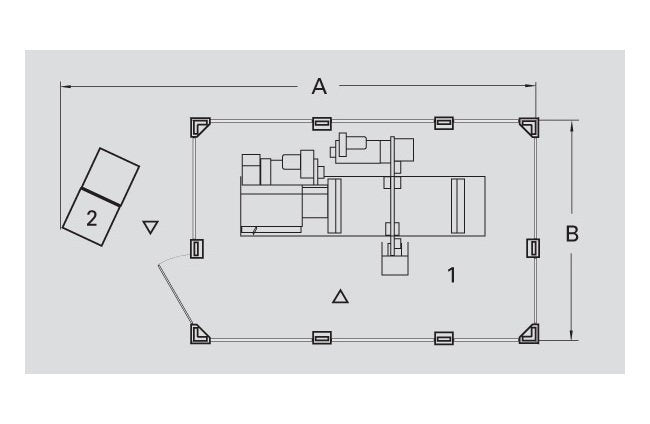

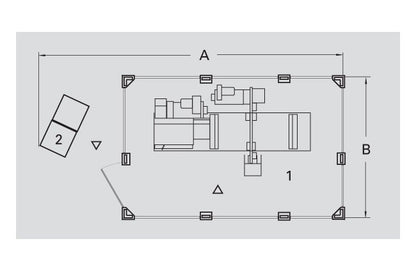

Machine Machine Depth B
2700 mm
Machine Machine Height C
2000 mm
Machine Machine Width A
3150 mm
Machine Note For Machine Dimensions
Data non-binding to DIN 1319, 95% probability, work-piece dependent.
Options Measuring Unit Cab 920 Order Number
R0060701.01
Options Options
End Drive | Mass Correction System - On Request | Measuring Unit (CAB 920) | Protective Device as per ISO 7475 | Report Printer | Software Options - On Request | Underslung Belt Drive (BU) | Various Roller Carriage - On Request
Options Report Printer Order Number
R0060705.01
Power Supply Alternating Current Ac Voltage
400 V
Power Supply Alternating Current Ac Voltage Tolerance
+6 % | -10 %
Power Supply Frequency
500 Hz
Power Supply Number Of Phase
3
Range Of Application Range Of Application

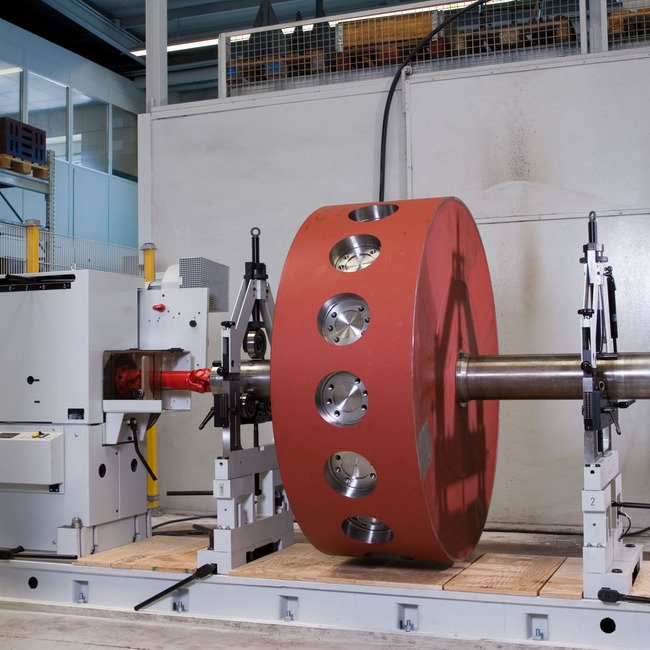

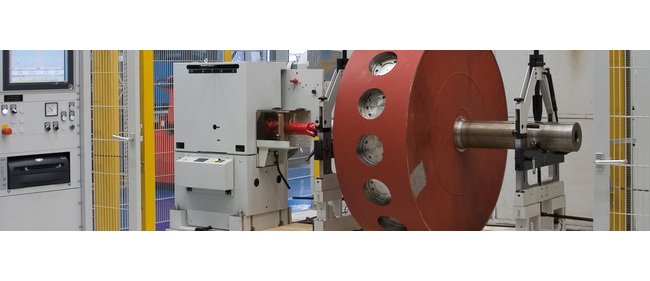

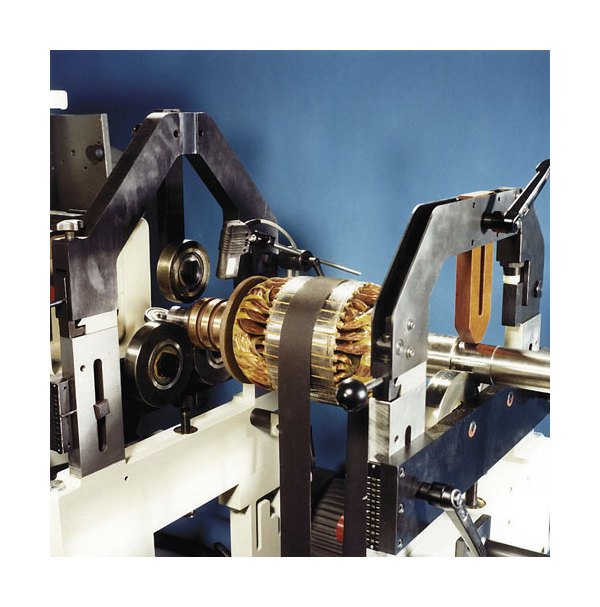

Universal balancing machines series HM are conceived for highly precise balancing of a wide spectrum of rotors. They are suitable for balancing cylindrical rotors with integral shaft journals and for balancing disc shaped rotors on balancing arbors.Permanent calibration, ergonomic design and a logical operating sequence facilitate operation.Their modular design principle and a wide range of accessories make the machine highly flexible.Schenck universal balancing machines series HM are a highly efficient investment both for one-off rotors and for small batches.
Rotor Bearing Journal Diameter
12 to 200 mm
Rotor Maximum Bearing Distance
1750 mm
Rotor Maximum Rotor Diameter
1600 mm
Rotor Maximum Rotor Weight
1500 kg
Rotor Note For Dimensions
Other data on request.
Sequence Of Operations Sequence Of Operations

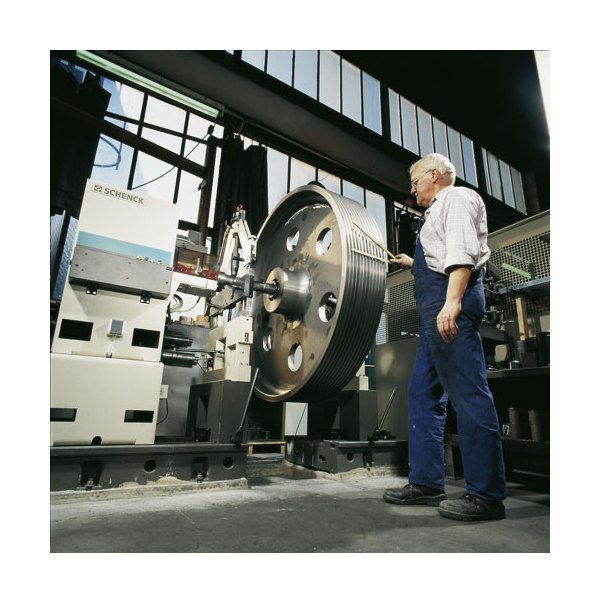

Manually load work-piece on the bearing pedestals, close hold-down bearings and connect drive (belt drive or drive shaft)Close protection device and start automatic measuring sequence:Acceleration, determination and display of the unbalance on the measuring instrument, braking. The readout is retained on the measuring instrument even after the measuring run has ended.Open protection device, manually correct unbalance (if required).Check correction result (with measuring instrument displaying whether the tolerance has been achieved) and unload the rotor from the machine.
Special Features Special Features
Easy to operate - hard-bearing principle eliminates the need for calibration runsProvides for correction in two planes or separate correction of static and couple unbalanceRotors can be mounted on their original shafts or on mounting arbors, optionally with mounted anti-friction bearingsAngle indexing display in case of belt driveAutomatic measuring cycle with infinitely variable settings for acceleration, measuring and braking timeUpgradeable by many additional modules e.g. for mass correction
Specifications Note
Up to HM10 with protection class C, in all other cases protection class B.
Technical Data Air Pressure
600 kPa
Technical Data Basic Machine Order Number
R0060700.01
Technical Data Brands
SCHENCK
Technical Data Drive Power
7.5 kW
Technical Data Measuring Unit
CAB 820
Technical Data Minimum Achievable Residual Unbalance Maru Per Ba
5 g/mm
Technical Data Minimum Balancing Speed
120 min-1
Technical Data Sound Pressure Level With Belt Drive
70 to 80 dBA
