Alloy Steel Socket Head Shoulder Screw with Nylon Pellet 5/16-18 x 3/4 Plain
Alloy Steel Socket Head Shoulder Screw with Nylon Pellet 5/16-18 x 3/4 Plain
SKU:VER-d09373
Enhance fastening with our Alloy Steel Socket Head Shoulder Screw. Nylon Pellet, 5/16-18 x 3/4 size. Durable and precise for secure fits.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Alloy Steel Socket Head Shoulder Screw with Nylon Pellet 5/16-18 x 3/4 Plain
$12.99
Quantity: 1
Claim Your Seller Account
Alloy Steel Socket Head Shoulder Screw with Nylon Pellet 5/16-18 x 3/4 Plain
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your fastening solutions with our Alloy Steel Socket Head Shoulder Screw featuring a Nylon Pellet. This 5/16-18 x 3/4 screw is designed for durability and precision, ensuring a secure fit for your critical applications. The plain finish adds a professional touch while the Alloy Steel construction provides strength and corrosion resistance. Meet your project needs with confidence using this top-quality Socket Head Shoulder Screw.
Product Specifications
Design Design

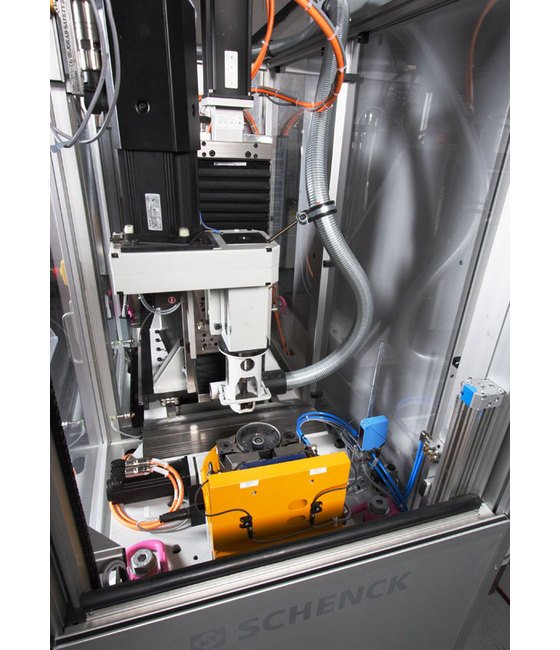

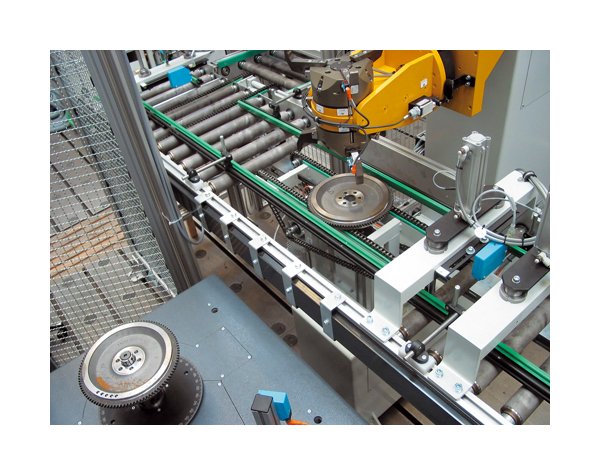

Fully automatic single-station machine with integrated high-performance drill unit. Freely programmable control with fault diagnosis and status display. Clamping of the work-piece to the balancing machine by precision adapters with pneumatic unclamping mechanism. Support device located under the work-piece during drilling, to compensate for the drill force. Unbalance evaluation, correction calculation and correction control through PC controlled measuring unit. Manual loading or optional loading for the machine by a hand-operated system and the corresponding conveying technique.
Machine Machine Height C
2400 mm
Machine Machine Length A
3400 mm
Machine Machine Width B
1500 mm
Machine Note For Machine Dimensions
Data non-binding, dependent on the respective equipment supplied
Options Drill Swarf Extractor Order Number
R0030102.01
Options Options
Drill Swarf Extractor
Range Of Application Range Of Application

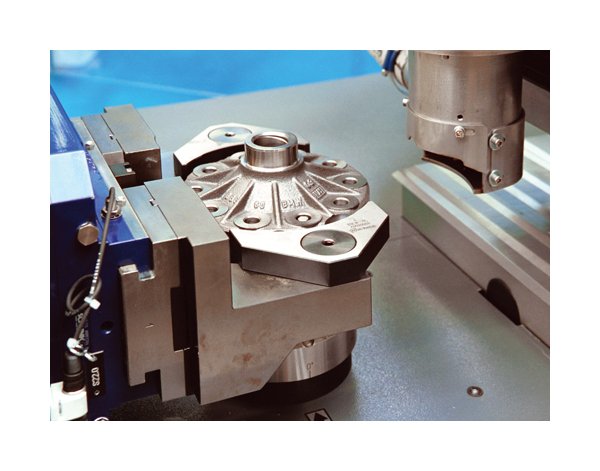

Measurement and correction of single-plane unbalance in disc shaped rotors with and without shafts, such as flywheels, TMF (twin mass flywheels), brake-drums, gears, clutch-plates, compensation shafts, blowers, etc.Flexible integration into production line and simple change over of the machine to different rotor types by exchange of work-piece interface adapter and selection of rotor type file.Unbalance correction by axial or radial drilling in polar or component format. If the initial unbalance is larger than can be corrected by one drilling action, multiple holes can be drilled.Other unbalance correction methods such as milling, welding, riveting or punching can be integrated into the machine on request. The correction units are flexible and are adapted to the work-piece.
Rotor Maximum Rotor Diameter
240 to 600 mm
Rotor Maximum Rotor Height
10 to 200 mm
Rotor Maximum Rotor Weight
5 to 100 kg
Technical Data Air Pressure
500 kPa
Technical Data Balancing Speed
800 min-1
Technical Data Basic Machine Order Number
R0030300.01
Technical Data Benefits
Automatic change-over | Numerical depth control | Unbalance correction by drilling, vertical
Technical Data Brands
SCHENCK
Technical Data Cycle Time
25 seconds
Technical Data Drilling Performance St 60
8 to 28 mm
Technical Data Measuring Uncertainty
2 to 20 g/mm
Technical Data Measuring Unit
CAB 950
Technical Data Power Consumption
25 kV·A
Technical Data Required Air Flow
1 m³/h
