Upgrade your fastening solutions with our Alloy Steel Socket Head Shoulder Screw featuring a Nylon Pellet insert. This screw boasts a thread size of 5/8-11 and a length of 1 1/2 inches, providing sturdy and reliable performance. The plain finish adds a sleek look while the alloy steel construction ensures durability and strength. Perfect for applications requiring precise positioning and alignment, this screw is a top choice for both consumer and institutional buyers.
Product Specifications

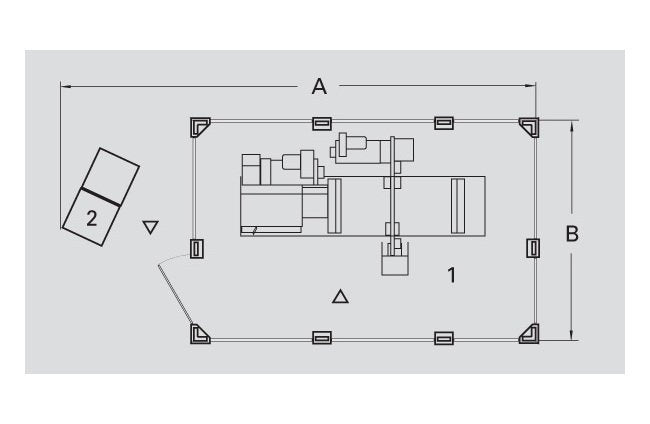

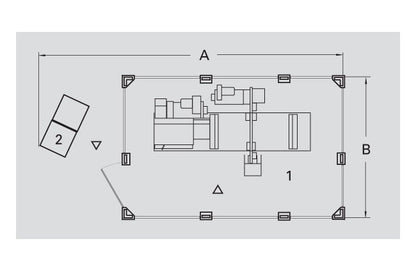

Machine Machine Depth B
3750 mm
Machine Machine Height C
2000 mm
Machine Machine Width A
4200 mm
Machine Note For Machine Dimensions
Data non-binding to DIN 1319, 95% probability, work-piece dependent.
Options Measuring Unit Cab 920 Order Number
R0061001.01
Options Options
End Drive | Mass Correction System - On Request | Measuring Unit (CAB 920) | Protective Device as per ISO 7475 | Report Printer | Software Options - On Request | Underslung Belt Drive (BU) | Various Roller Carriage - On Request
Options Report Printer Order Number
R0061005.01
Options Underslung Belt Drive Bu Order Number
R0060203.01
Power Supply Alternating Current Ac Voltage
400 V
Power Supply Alternating Current Ac Voltage Tolerance
+6 % | -10 %
Power Supply Frequency
500 Hz
Power Supply Number Of Phase
3
Range Of Application Range Of Application

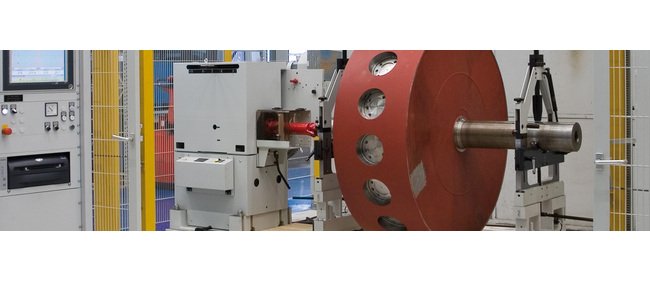

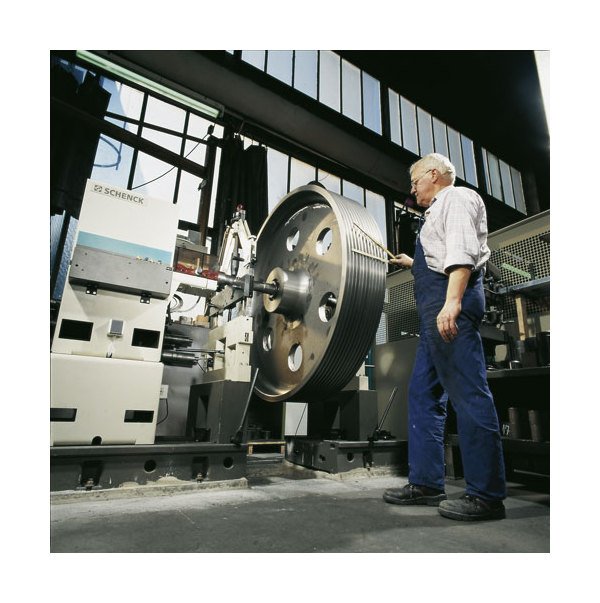

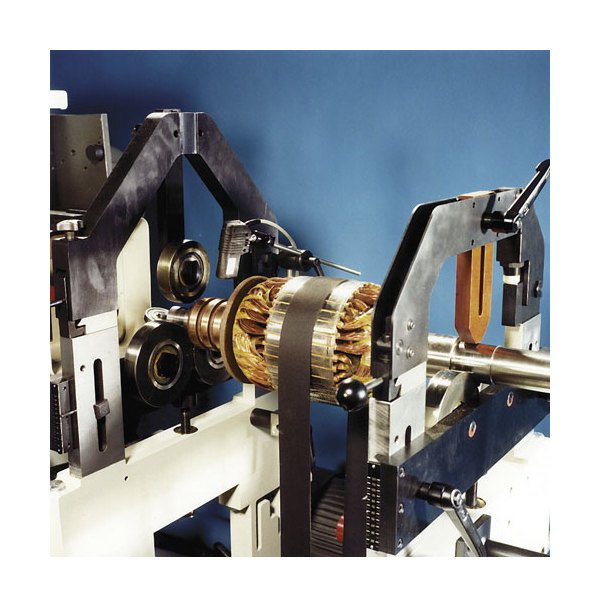

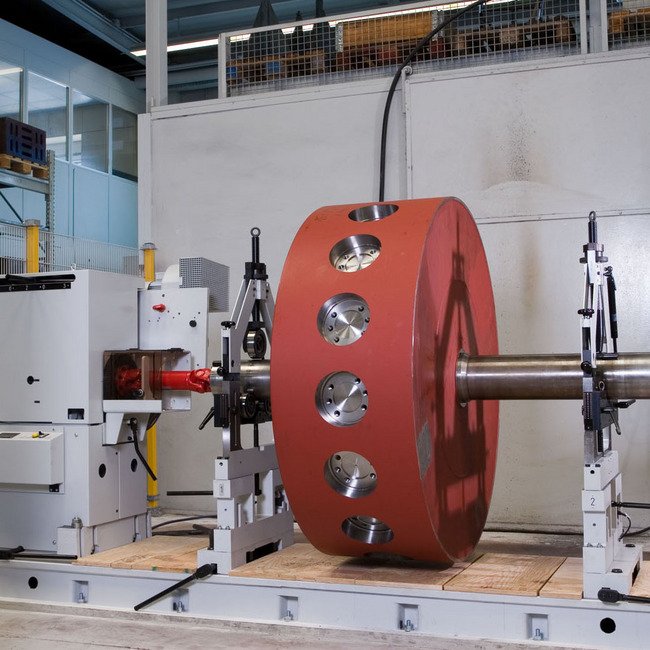

Universal balancing machines series HM are conceived for highly precise balancing of a wide spectrum of rotors. They are suitable for balancing cylindrical rotors with integral shaft journals and for balancing disc shaped rotors on balancing arbors.Permanent calibration, ergonomic design and a logical operating sequence facilitate operation.Their modular design principle and a wide range of accessories make the machine highly flexible.Schenck universal balancing machines series HM are a highly efficient investment both for one-off rotors and for small batches.
Rotor Bearing Journal Diameter
25 to 380 mm
Rotor Maximum Bearing Distance
1980 mm
Rotor Maximum Rotor Diameter
1600 mm
Rotor Maximum Rotor Weight
8000 kg
Rotor Note For Dimensions
Other data on request.
Sequence Of Operations Sequence Of Operations
Manually load work-piece on the bearing pedestals, close hold-down bearings and connect drive (belt drive or drive shaft)Close protection device and start automatic measuring sequence:Acceleration, determination and display of the unbalance on the measuring instrument, braking. The readout is retained on the measuring instrument even after the measuring run has ended.Open protection device, manually correct unbalance (if required).Check correction result (with measuring instrument displaying whether the tolerance has been achieved) and unload the rotor from the machine.
Special Features Special Features
Easy to operate - hard-bearing principle eliminates the need for calibration runsProvides for correction in two planes or separate correction of static and couple unbalanceRotors can be mounted on their original shafts or on mounting arbors, optionally with mounted anti-friction bearingsAngle indexing display in case of belt driveAutomatic measuring cycle with infinitely variable settings for acceleration, measuring and braking timeUpgradeable by many additional modules e.g. for mass correction
Specifications Note
Up to HM10 with protection class C, in all other cases protection class B.
Technical Data Air Pressure
600 kPa
Technical Data Basic Machine Order Number
R0061000.01
Technical Data Brands
SCHENCK
Technical Data Drive Power
7.5 kW
Technical Data Measuring Unit
CAB 820
Technical Data Minimum Achievable Residual Unbalance Maru Per Ba
20 g/mm
Technical Data Minimum Balancing Speed
120 min-1
Technical Data Sound Pressure Level With Belt Drive
70 to 80 dBA
