Alnico Magnet Fluid Line Filter
Alnico Magnet Fluid Line Filter
SKU:FLU-f2085e
Protect tools from ferrous metal damage with our durable Alnico Magnet Fluid Line Filter. Enhance tool longevity and minimize downtime effortlessly.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Alnico Magnet Fluid Line Filter
$149.99
Quantity: 1
Claim Your Seller Account
Alnico Magnet Fluid Line Filter
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

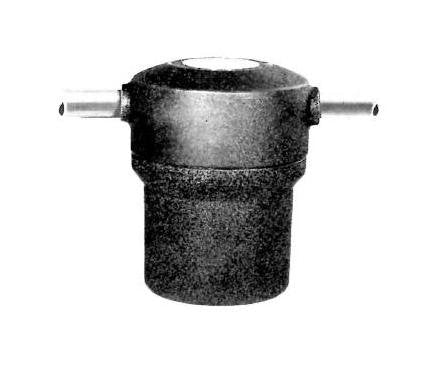

The Alnico Magnet Fluid Line Filter is a high-performance solution designed to reduce tool and workpiece damage caused by ferrous metal contaminants in coolant systems during various machining operations. With a stainless steel housing and Alnico magnet material, this filter ensures efficient trapping of iron particles, enhancing tool longevity and minimizing downtime. Easy maintenance and robust construction make it a reliable choice for industrial applications, offering seamless operation without the need for frequent replacements.
Product Specifications
Additional Information 0
Alnico magnet material is standard. Neodymium magnet material is available for fine tramp iron (less than 35 microns) and weakly magnetic contamination.
Manufacturing Notes 0
Standard Pipe Thread Size: Use reducers for other pipe sizes
Specifications Applications

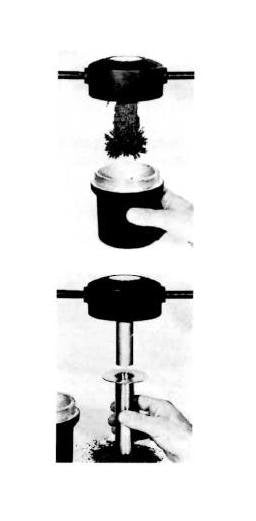

Trap the iron that damages your tools. | To clean, remove outer case, exposing cleaning sleeve. | Slide cleaning sleeve assembly down until clear of magnets. Trapped parts fall off.
Specifications Capacity
1 gpm | 2 1/2 gpm | 5 gpm
Specifications Housing Material
Stainless Steel
Specifications Magnet Material
Alnico
Specifications Maximum Pressure
200 psi
Specifications Net Weight
4.5 lb
Specifications Pipe Size
1/4 in | 3/8 in | 1/2 in
Specifications Standard Pipe Thread Size
1/2 in NPT
