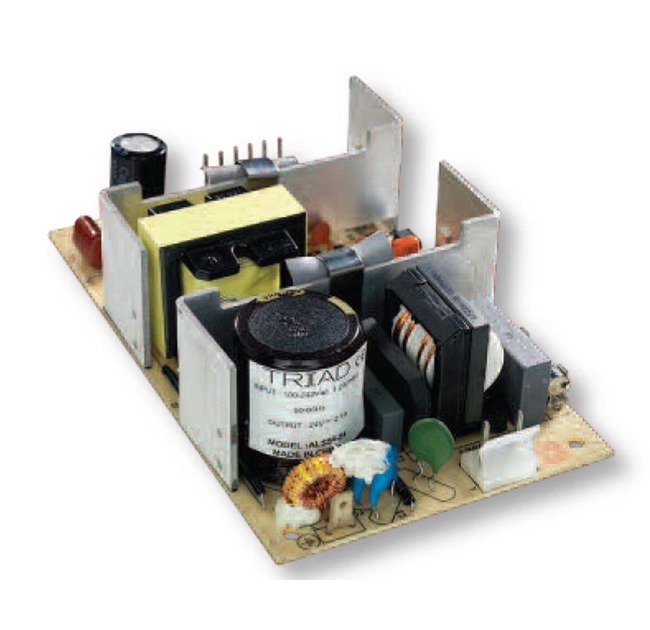

The ALS 50 Series 50W Single Output Open Frame Switching Power Supply is a reliable solution designed for general purpose applications. With an input voltage range of 90-264V AC and 120-370V DC, this power supply offers stable performance. It features over current and over voltage protection, ensuring safety and longevity. Meeting stringent industry standards, this power supply is ideal for both consumer and institutional use.
Product Specifications
Connector Types Input Housing
Molex 09-50-3031
Connector Types Input Terminal
Molex 08-50-0105
Connector Types Output Housing
Molex 09-50-3061
Connector Types Output Terminal
Molex 08-50-0105
Emc Safety Specifications Emc Emissions
EN55022,VCCI,CISPR22 Class A (Conducted & Radiated); IEC-61000-4-2, 61000-4-4, 61000-4-5, 61000-4-11
Emc Safety Specifications Input Ground Dielectric Strength
2 kVAC / 1 min
Emc Safety Specifications Input Output Dielectric Strength
3 kVAC / 1 min
Emc Safety Specifications Output Ground Insulation Resistance
>100 mOhm / 500 VDC
Emc Safety Specifications Safety Approval
UL 60950 (UL File No: E204980)
Environmental Specifications Cooling
Convection Cooled Operation
Environmental Specifications Humidity
10 to 95 % RH, non-condensing

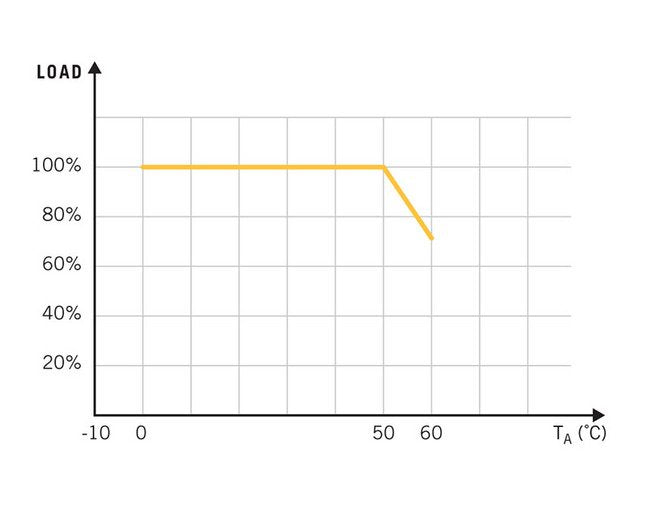

Environmental Specifications Operating Temperature
0 to 50 ºC Full Load, derate 3.0%/ºC up to 60 ºC
Environmental Specifications Reliability
>195,000 Hours MTBF
Environmental Specifications Storage Temperature
-25 to +85 ºC
Environmental Specifications Vibration
0 to 55 Hz, 2G 1 min/cycle, period of 60 min, each axis.

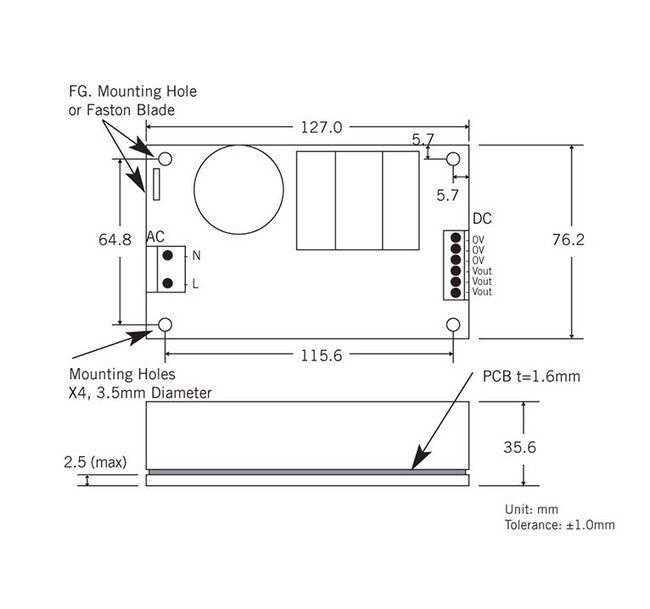

General Specifications Height H
1.40 in | 35.6 mm
General Specifications Length L
5.00 in | 127 mm
General Specifications Warranty
2 years
General Specifications Weight
300 g
General Specifications Width W
3.00 in | 76.2 mm
Input Characteristics Input Frequency Range
47 to 63 Hz
Input Characteristics Input Voltage Ac
90 to 264 V
Input Characteristics Input Voltage Dc
120 to 370 V
Input Characteristics Maximum Input Current At 110220 Vac
0.5 A | 1.0 A
Input Characteristics Maximum Inrush Current At 220 Vac Cold Sta
30 A
Output Characteristics Adjustable Output Range
±10 %
Output Characteristics Line Regulation
±1 %
Output Characteristics Load Regulation
±2.0 %
Output Characteristics Maximum Rise Up Time At 110 Vac
500 ms
Output Characteristics Minimum Hold Up Time 100 Load At 110 Vac
17 ms
Output Characteristics Minimum Load
No
Output Characteristics Over Current Protection Auto Recovery
>120 %
Output Characteristics Over Voltage Protection Auto Recovery
>105 %
Output Characteristics Ripplenoise Pk Pk 20mhz
3.3/5/12/24 V = 50/75/120/240 mV
Specifications Current
9.1 A
Specifications Efficiency
70 %
Specifications Voltage
3.3 V
