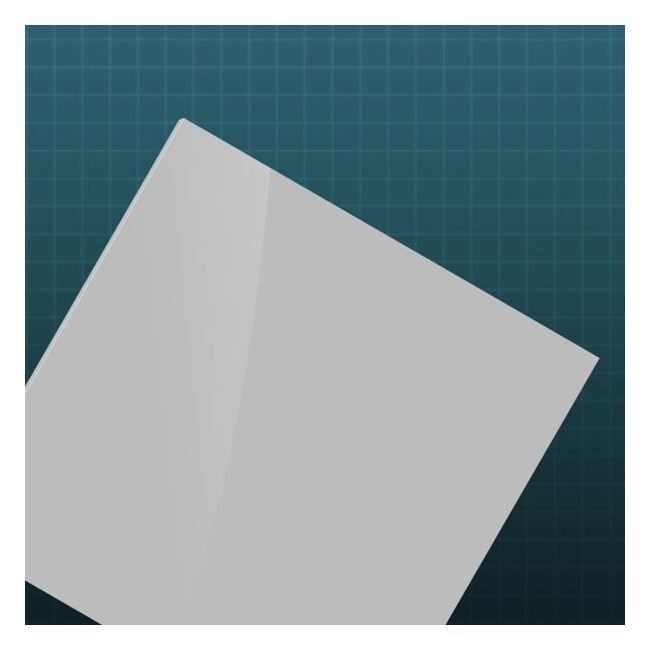

Alumina Ceramic Substrate 99.6% Al2O3
Alumina Ceramic Substrate 99.6% Al2O3
SKU:CER-7f975a
High-purity Alumina Ceramic Substrate - Ideal for thin film substrates & circuit generation. Superior hardness, wear resistance & more.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Alumina Ceramic Substrate 99.6% Al2O3
$29.99
Quantity: 1
Claim Your Seller Account
Alumina Ceramic Substrate 99.6% Al2O3
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Alumina Ceramic Substrate 99.6% Al2O3 is a standard choice for thin film substrates and circuit generation, known for its high purity and smaller grain size resulting in a smoother surface with fewer defects. This ceramic substrate, from Accumet Engineering, boasts exceptional hardness, wear resistance, and high compressive strength, making it ideal for high-intensity environments. Featuring a hexagonal crystal structure, this substrate is tailored for electronic and semiconductor applications.
Product Specifications
Additional Information Additional Information
Accumet's ceramic substrates can be professionally supplied ready to use, as we are experts in all areas of ceramic machining services, including: polishing; dicing; lapping; grinding; marking, and laser cutting and drilling. As experts in the field of ceramic machining we've honed our ability to provide the tightest tolerances on every level, from ultra-thin, ultra-smooth thicknesses and surfaces, to the smallest and closest through-holes and vias. All of our ceramic substrate materials are stocked and supplied from our advanced manufacturing facilities in Westford, MA and Hudson, MA.When RF designers are weighing material choices and considering circuit design during prototype development, Accumetâs material and process engineering expertise is there to guide them. Whether it be tapping into Accumetâs extensive knowledge of ceramics and other RF materials, circuit design, anticipated yield loss, attainable surface finish, adhesion concerns, or any of the other multiple factors to be considered with regards to circuit manufacturability, Accumetâs engineering staff is ready to help. Upon completion of lasered, lapped, or polished raw substrate orders, customers often ship the substrates back to Accumet after their manufacturing processes are complete for secondary processing. We ship worldwide, offer low minimum orders, and we deliver a full range of advanced manufacturing services from hands-on prototyping to full production runs, to ensure you get the most optimally prepared ceramics delivered on time, every time.
Features Features
Small Grain Size
Note Note
Available Off the Shelf in the Exact Quantity You Need
Technical Specs Applications
Electronic | Semiconductor
Technical Specs Brands
Accumet Engineering
Technical Specs Color
White
Technical Specs Compressive Strength At M10
54 lb/in²
Technical Specs Crystal Structure
Hexagonal
Technical Specs Density
3.87 g/cm²
Technical Specs Dielectric Constant
9.9 = 0.1 MHz at R.T.
Technical Specs Dielectric Strength For 0025 Thickness
600 V/mil
Technical Specs Dielectric Strength For 050 Thickness
450 V/mil
Technical Specs Flexural Strength At K102
90 lb/in²
Technical Specs Hardness Rockwell
87
Technical Specs Polsons Ratio For American Society For Testing A
0.2
Technical Specs Thermal Conductivity
27 W/m-K at R.T.
