Aluminized Pyrotex Knit Firesleeve - 9/16-inch
Aluminized Pyrotex Knit Firesleeve - 9/16-inch
SKU:FIR-ff6c85
Protective aluminized firesleeve for industrial applications, offering flame and heat resistance with personnel protection benefits.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Aluminized Pyrotex Knit Firesleeve - 9/16-inch
$45.99
Quantity: 1
Claim Your Seller Account
Aluminized Pyrotex Knit Firesleeve - 9/16-inch
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Aluminized Pyrotex Knit Firesleeve is a flame and molten splash resistant barrier safeguarding critical system components in various industrial applications. Crafted from high-quality texturized fiberglass with a self-extinguishing silicone polymer coating, this firesleeve shields hoses, wires, and cables from direct flame, high heat, and molten metal. With exceptional thermal insulation properties, it helps maintain optimal temperature levels, reducing energy costs and preventing premature component wear. Additionally, it offers personnel protection by lowering surface temperatures and is resistant to hydraulic fluids, fuels, and more.
Product Specifications
Accreditations Accreditations

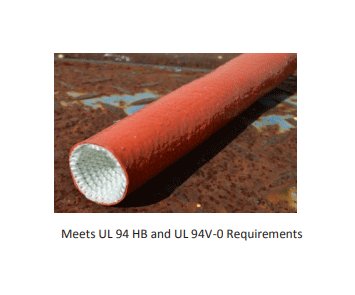

Meets UL 94 HB Requirements.Meets UL 94V-0 Requirements.Private brand printing services.REACh & RoHS compliant.Bulk lengths available to reduce scrap.Extensive stock for short lead times.
Additional Information Additional Information
Pyrotex Firesleeve withstands continuous exposure up to 500ºF and short-term exposure up to 2200ºF, is self-extinguishing and will not burn, or support combustion, and does not emit toxic smoke. This product displays excellent resistance to common industrial, automotive, and marine fluids, and provides lines with good protection against mechanical wear.
Availability Availability

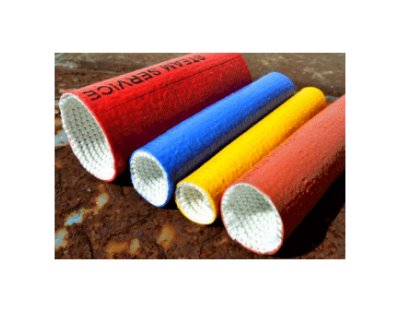

Pyrotex Knit is a stock product, allowing for a fast turnaround time.Bulk lengths available for scrap minimization.Firesleeve is supplied in 50 ft. coils and 100 ft. boxes standard.Available in diameters from 1/4" (6mm) to 4" (102mm).Available in standard RIO, other colors are available upon request.
Characteristics Characteristics
Self-extinguishing thick-walled insulating sleeve for excellent thermal protection.Sheds molten metal splash and resists direct flame impingement.Lightweight and highly flexible composite protective sleeve-,exceptional elasticity.Will not melt, burn, or support combustion- does not emit toxic smoke.Resistant to hydraulic fluids, fuels, lubricating oil, and water.Extends service life of assemblies and provides personnel protection.
Material Composition Material Composition
Highly texturized E-Glass fiber.Tightly knitted insulating substrate.High-temperature Silicone polymer.Various colored coatings available.
Specifications Color
Aluminized
Specifications Continuous Working Temperature
500 ºF | 260 ºC
Specifications Inside Diameter
9/16 in | 14 mm
Specifications Short Term Working Temperature
2200 ºF | 1200 ºC
Specifications Standard Length
100 ft. boxes | 50 ft. coils
