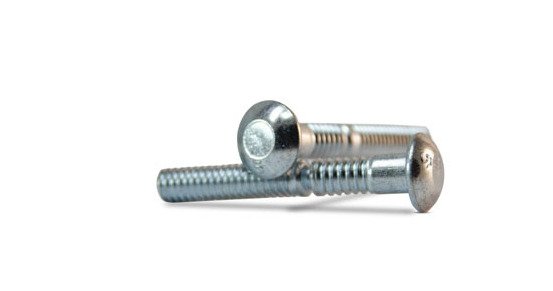

Aluminum 2024 Truss Head Lock Bolt - 1.779in Maximum Mandrel Length

Name: Aluminum 2024 Truss Head Lock Bolt - 1.779in Maximum Mandrel Length
Brand: Ornit USA
SKU: STA-25e4e1
Price: 15.99 USD
Availability: OutOfStock

SKU:STA-25e4e1

High-quality Aluminum 2024 Truss Head Lock Bolt for secure and durable fastening.

$15.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Aluminum 2024 Standard Truss Head Lock Bolt features precise dimensions for reliable performance. With a Maximum Mandrel Length of 1.779 inches, this bolt ensures secure fastening. Made of high-quality aluminum, this bolt offers durability and resistance to corrosion. Meeting stringent government procurement standards, including FAR compliance factors, this bolt is ideal for institutional applications requiring strength and reliability.

Product Specifications

Dimensions Diameter

3/16 in

Dimensions Dimension A

0.191 to 0.195 in

Dimensions Maximum Grip Range

0.313 in

Dimensions Maximum Head Diameter

0.469 in

Dimensions Maximum Hole Diameter

0.203 in

Dimensions Maximum Hole Size

0.203 in

Dimensions Maximum Length

1.864 in

Dimensions Maximum Mandrel Length

1.779 in

Dimensions Minimum Grip Range

0.438 in

Dimensions Minimum Head Diameter

0.406 in

Dimensions Minimum Hole Diameter

0.193 in

Dimensions Minimum Length

1.729 in

Dimensions Minimum Mandrel Length

1.654 in

Dimensions Minimum Shear Strength

476 lbf

Dimensions Minimum Tensile Strength

454 lbf

Dimensions Nominal Drill Side

0.198 in

Dimensions Nominal Head Diameter

0.438 in

Dimensions Nominal Mandrel Length

1.717 in

Technical Specs Brands

Ornit

Technical Specs Finish

Natural

Technical Specs Head B

0.406 to 0.469 in

Technical Specs Head C

0.078 to 0.088 in

Technical Specs Head Shape

Truss Head

Technical Specs Material

Aluminum (2024)
