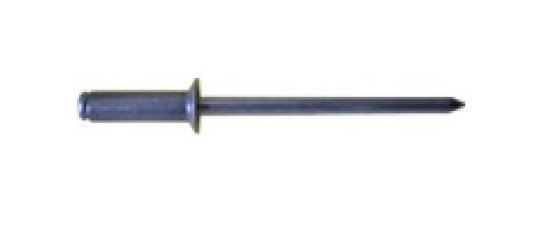

Aluminum Alloy Open End Countersunk Blind Rivet
Aluminum Alloy Open End Countersunk Blind Rivet
SKU:OPE-09acb6
High-quality Aluminum Alloy Open End Rivet for secure and durable fastening. Shear force: 150 kgf, Tensile force: 220 kgf.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Aluminum Alloy Open End Countersunk Blind Rivet
$45.99
Quantity: 1
Claim Your Seller Account
Aluminum Alloy Open End Countersunk Blind Rivet
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 4.8mm Diameter and 16.0mm Body Length Aluminum Alloy Open End Countersunk Blind Rivet by Ornit is designed for durability and reliability. Made of high-quality AA 5052 aluminum alloy with a natural finish, it offers exceptional strength and corrosion resistance. The low carbon steel SAE 1006-1022 mandrel with zinc-plated chromium ensures secure fastening. With a shear force of 150 kgf and tensile force of 220 kgf, this rivet provides robust hold for various applications. Its precise dimensions meet strict industrial standards, making it ideal for both consumer and institutional use.
Product Specifications
Nominal Dimensions Body Length
16.0 mm | 0.630 in
Nominal Dimensions Diameter
4.8 mm
Nominal Dimensions Drillhole Size
4.9 mm | 0.193 in
Nominal Dimensions Head Diameter
8.7 mm | 0.343 in
Nominal Dimensions Head Thickness
1.30 mm | 0.051 in
Nominal Dimensions Mandrel Diameter
2.61 mm | 0.103 in
Nominal Dimensions Maximum Grip Range
11.0 mm | 0.433 in
Nominal Dimensions Minimum Grip Range
9.0 mm | 0.354 in
Nominal Forces Nominal Shear Force
150 kgf | 330 lbf
Nominal Forces Nominal Tensile Force
220 kgf | 484 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (2.5 mg) to AA 5052
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
4000
Technical Specs Head Style
Countersunk
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel SAE 1006-1022
