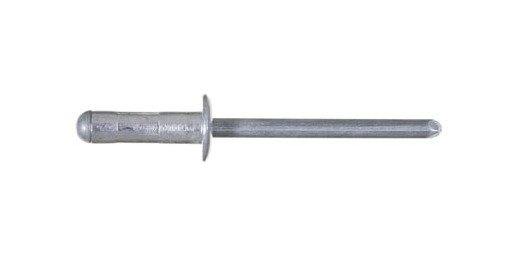

Aluminum Dome Head Rivet 4.8mm x 16.9mm - U-Fix Series
Aluminum Dome Head Rivet 4.8mm x 16.9mm - U-Fix Series
SKU:UFI-584dcb
Versatile Aluminum Dome Head Rivet for automotive applications. Diameter: 4.8mm, Length: 16.9mm. Secure and reliable fastening.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Aluminum Dome Head Rivet 4.8mm x 16.9mm - U-Fix Series
$29.99
Quantity: 1
Claim Your Seller Account
Aluminum Dome Head Rivet 4.8mm x 16.9mm - U-Fix Series
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Aluminum Dome Head Rivet from the U-Fix series is a versatile and purpose-built fastener designed for securing components within automotive applications. Crafted from Aluminum Alloy ALmg 1.0 with a natural finish, this rivet features a 4.8mm diameter and 16.9mm body length, offering a multi-grip function with a grip range of 6.4mm to 12.7mm. With a nominal shear force of 100 kgf and a nominal tensile force of 150 kgf, this rivet ensures reliable and secure fastening, meeting strict industry standards.
Product Specifications
Applications Automotive Application
InteriorThe U-Fix is a highly versatile purpose-built fastener, featuring an excellent multi-grip function ideal for a variety of purposes. Commonly used to secure components within the vehicle.
Nominal Dimensions Body Length
16.9 mm | 0.665 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 mm | 0.193 in
Nominal Dimensions Head Diameter
9.8 mm | 0.386 in
Nominal Dimensions Head Thickness
1.45 mm | 0.057 in
Nominal Dimensions Mandrel Diameter
2.91 mm | 0.115 in
Nominal Dimensions Maximum Grip Range
12.7 mm | 0.500 in
Nominal Dimensions Minimum Grip Range
6.4 mm | 0.252 in
Nominal Forces Nominal Shear Force
100 kgf | 220 lbf
Nominal Forces Nominal Tensile Force
150 kgf | 330 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 1.0
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
4000
Technical Specs Head Style
Dome
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Aluminum Alloy ALmg 5.0
