Aluminum Finish Touch Bar Narrow Stile Exit Device - Strybuc Grade 2 ANSI
Aluminum Finish Touch Bar Narrow Stile Exit Device - Strybuc Grade 2 ANSI
SKU:COM-871dba
Strybuc Aluminum Touch Bar Exit Device for secure and easy access control on commercial doors.
Regular price
$259.99
Regular price
Sale price
$259.99
Unit price
per
Initiate Order
Aluminum Finish Touch Bar Narrow Stile Exit Device - Strybuc Grade 2 ANSI
$259.99
Quantity: 1
Claim Your Seller Account
Aluminum Finish Touch Bar Narrow Stile Exit Device - Strybuc Grade 2 ANSI
$259.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

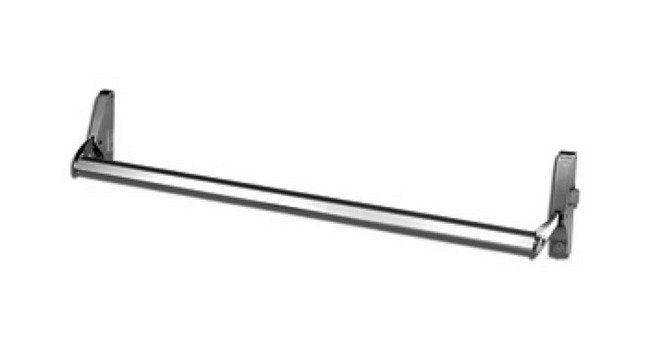

Enhance door security with this Strybuc Aluminum Finish Touch Bar Narrow Stile Exit Device. Featuring a contoured anodized aluminum cross bar, stainless steel springs, and ANSI A156.3 Grade 2 compliance, this device provides reliable access control for commercial spaces. With a backset of 1-5/32" and rim mounted roller strike, it ensures durability and ease of operation. Suitable for narrow stile aluminum and hollow metal doors, this device offers flexibility and top-notch security for door widths up to 42". Install at a recommended height of 39-13/32" for optimal performance.
Product Specifications
Accessories Accessories
Item# - 19-568Item Name - Rim CylinderFinish - AluminumItem# - 19-568BZItem Name - Rim CylinderFinish - BronzeItem# - 19-751Item Name - Exit Only PlateFinish - AluminumItem# - 19-749Item Name - Pull TrimFinish - AluminumItem# - 19-750Item Name - Dummy Pull TrimFinish - Aluminum
Features Features

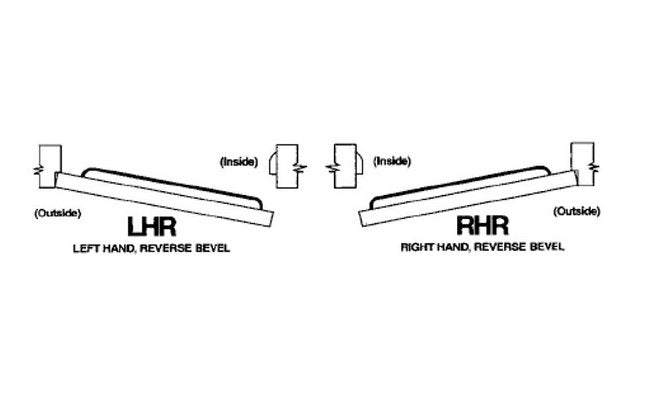

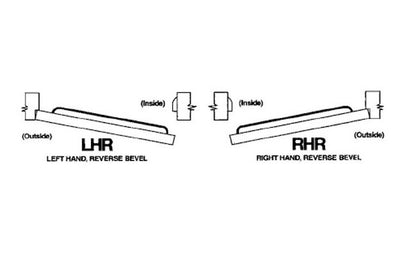

Material: Contoured anodized aluminum cross bar, stainless steel springsLatch Case: 1-1/4" wide x 7-1/4" long with 1/2" stainless throwBackset: 1-5/32" from edge of door to center line of deviceStrike: Rim mounted roller strike with shimProjection: 4-3/4"Stile: 1-7/8" minimumHanding: Handed, please specify RH or LHDoor Thickness: 1-3/4" standardDoor Width: Up to 42"Mounting Height: Recommended installation at 39-13/32" from floor to center line of latch or strike assembliesFasteners: Furnished with sheet metal, machine screws and shoulder mounting studs with set screwsCylinder: Accepts rim cylinder onlyDogging: Inside-push up dog pin rotate with screwdriver, Outside-by key cylinder
Specifications Door Opening
Left
Specifications Finish
Aluminum
Specifications Industry Standards
American National Standards Institute (ANSI) A156.3 Grade 2
