Aluminum Line Vac Conveyor - 1/2" Inlet x 1/2" Outlet
Aluminum Line Vac Conveyor - 1/2" Inlet x 1/2" Outlet
SKU:LIN-b1b20d
Efficient aluminum conveyor for plastic pellets, bulk solids, and more - versatile, high throughput, and low noise.
Regular price
$159.99
Regular price
Sale price
$159.99
Unit price
per
Initiate Order
Aluminum Line Vac Conveyor - 1/2" Inlet x 1/2" Outlet
$159.99
Quantity: 1
Claim Your Seller Account
Aluminum Line Vac Conveyor - 1/2" Inlet x 1/2" Outlet
$159.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

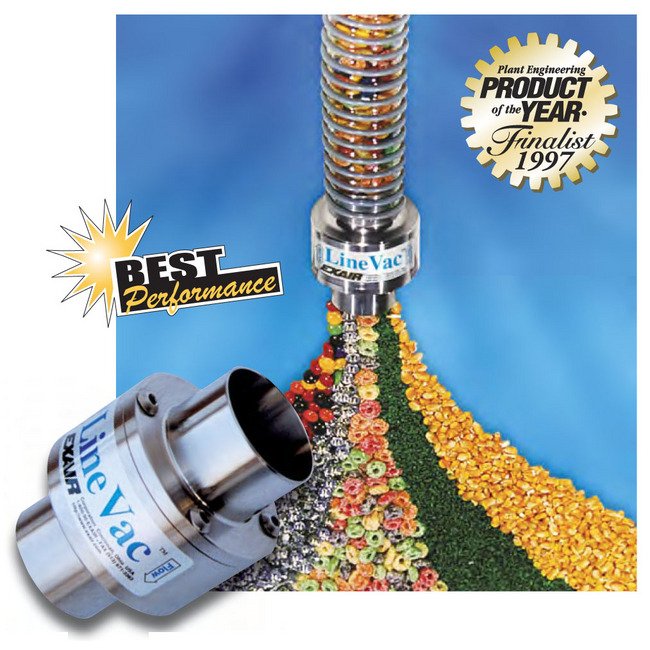

The Aluminum Line Vac Conveyor offers a fast and cost-effective solution for conveying plastic pellets, textiles, bulk solids, food products, and more. With a robust aluminum construction and large throat diameters, this conveyor ensures maximum throughput capability. Available in eleven sizes, this compact conveyor connects to standard hoses or tubes, making it versatile for various transfer applications. Benefit from its high efficiency, no moving parts, and low noise operation.
Product Specifications
Specifications Advantages
Aluminum or Stainless Steel | Compact | Eleven Sizes | Fits Standard Hose or Tube | High Throughput Capability | No Moving Parts | Quiet
Specifications Air Consumption
7 SCFM | 198 SLPM
Specifications Air Inlet
1/8 NPT
Specifications Applications
Chip Removal | Fiber Tensioning | Filling Operations | Hopper Loading | Material Conveying | Part Transfer | Waste/Trim Removal
Specifications Corrosion Resistance
Fair
Specifications Dimension E
1.23 in | 31 mm
Specifications Dimension F
0.75 in | 19 mm
Specifications Dimension H
0.63 in | 16 mm
Specifications Dimension I
0.34 in | 9 mm
Specifications Dimension J
0.68 in | 17 mm
Specifications Dimension K
0.13 in | 3 mm
Specifications Dimension L
1.00 in | 25 mm
Specifications Dimension M
0.06 in | 2 mm
Specifications Dimension N
1.18 in | 30 mm
Specifications Dimension O
0.18 in | 5 mm
Specifications Hose Size
0.50 in | 13 mm
Specifications Inlet Size
1/2 in | 13 mm
Specifications Inside Diameter
0.31 in | 8 mm
Specifications Material
Aluminum
Specifications Outlet Diameter
1/2 in | 13 mm
Specifications Outside Diameter
1.25 in | 32 mm
Specifications Overall Length
2.62 in | 66 mm
Specifications Overall Width
1.25 in | 32 mm
Specifications Pressure
80 psig | 5.5 bar
Specifications Temperature Rating
275 ºF | 135 ºC
Specifications Vacuum Pressure
-100 inWc | -24.9 kPa
