Aluminum Line Vac Conveyor 3/4x3/4
Aluminum Line Vac Conveyor 3/4x3/4
SKU:LIN-940392
Powerful Aluminum Line Vac Conveyor for efficient material transfer. Compact, reliable, and cost-effective solution.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Aluminum Line Vac Conveyor 3/4x3/4
$189.99
Quantity: 1
Claim Your Seller Account
Aluminum Line Vac Conveyor 3/4x3/4
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

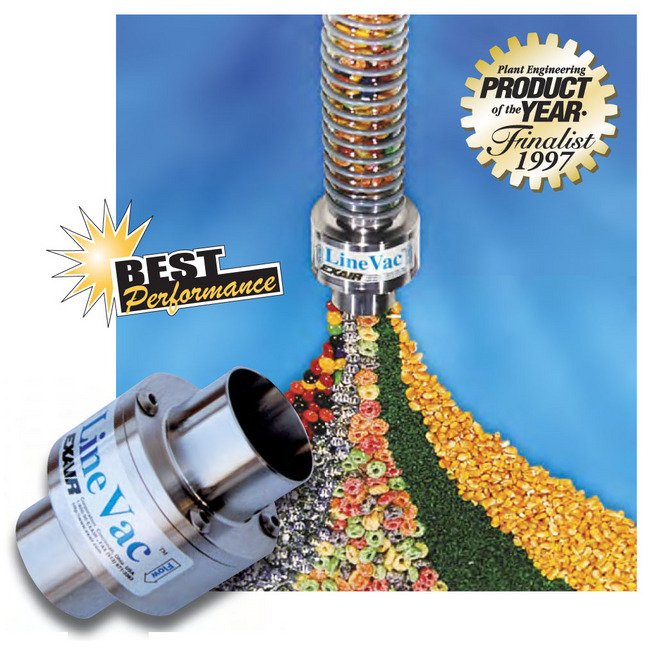

The Aluminum Line Vac Conveyor with a 3/4 Inch Inlet and Outlet Diameter is a high-performance solution for conveying plastic pellets, bulk solids, small parts, and more. Designed by EXAIR, this compact conveyor operates with compressed air, ensuring a fast and cost-effective transfer process. With aluminum construction, eleven size options, and a compact design, this conveyor offers exceptional throughput capability, fitting standard hoses or tubes and requiring no moving parts, resulting in quiet and efficient operation. Ideal for various applications like chip removal, material conveying, and part transfer, this conveyor is a reliable choice for industrial needs.
Product Specifications
Specifications Advantages
Aluminum or Stainless Steel | Compact | Eleven Sizes | Fits Standard Hose or Tube | High Throughput Capability | No Moving Parts | Quiet
Specifications Air Consumption
10.70 SCFM | 303 SLPM
Specifications Air Inlet
1/8 NPT
Specifications Applications
Chip Removal | Fiber Tensioning | Filling Operations | Hopper Loading | Material Conveying | Part Transfer | Waste/Trim Removal
Specifications Corrosion Resistance
Fair
Specifications Dimension E
1.88 in | 48 mm
Specifications Dimension F
1 in | 25 mm
Specifications Dimension H
1 in | 25 mm
Specifications Dimension I
0.76 in | 19 mm
Specifications Dimension J
1.52 in | 39 mm
Specifications Dimension K
0.25 in | 6 mm
Specifications Dimension L
1.38 in | 35 mm
Specifications Dimension M
0.06 in | 2 mm
Specifications Dimension N
1.44 in | 37 mm
Specifications Dimension O
0.20 in | 5 mm
Specifications Hose Size
0.75 in | 19 mm
Specifications Inlet Size
3/4 in | 19 mm
Specifications Inside Diameter
0.50 in | 13 mm
Specifications Material
Aluminum
Specifications Outlet Diameter
3/4 in | 19 mm
Specifications Outside Diameter
1.88 in | 48 mm
Specifications Overall Length
3.88 in | 99 mm
Specifications Overall Width
2 in | 51 mm
Specifications Pressure
80 psig | 5.5 bar
Specifications Temperature Rating
275 ºF | 135 ºC
Specifications Vacuum Pressure
-72 inWc | -18 kPa
