Aluminum Line Vac Conveyor - 3/8" Inlet x 3/8" Outlet
Aluminum Line Vac Conveyor - 3/8" Inlet x 3/8" Outlet
SKU:LIN-5f8a7d
Efficient Aluminum Line Vac Conveyor for diverse material handling needs, compact design, and high reliability.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Aluminum Line Vac Conveyor - 3/8" Inlet x 3/8" Outlet
$299.99
Quantity: 1
Claim Your Seller Account
Aluminum Line Vac Conveyor - 3/8" Inlet x 3/8" Outlet
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

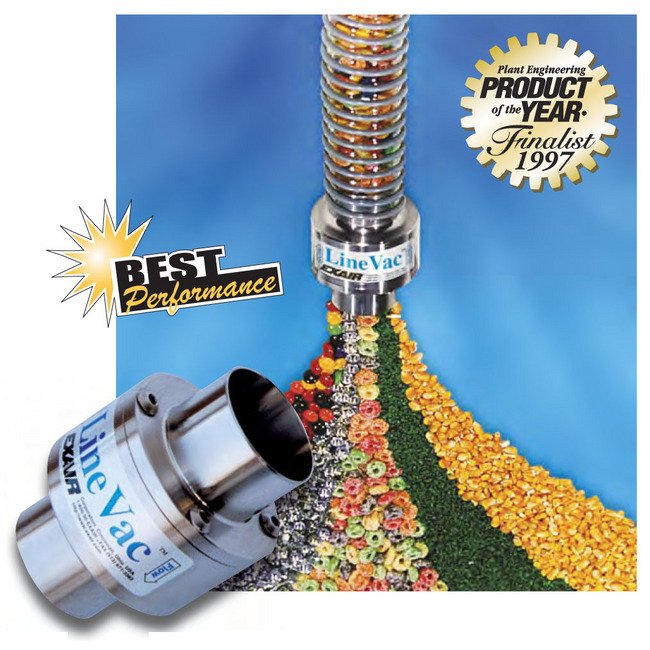

The Aluminum Line Vac Conveyor offers a rapid, cost-effective solution for conveying various materials such as plastic pellets, textiles, chips, small parts, and more. This compressed air-operated conveyor, made of high-quality aluminum, ensures durability and efficiency. With an 80 psig pressure and vacuum capability of -120 inWc, this conveyor's compact design provides maximum throughput with no moving parts, making it quiet and reliable. Ideal for applications like chip removal, material conveying, and waste removal, its corrosion-resistant properties and compatibility with standard hoses/tubes make it a versatile choice for industrial needs.
Product Specifications
Specifications Advantages
Aluminum or Stainless Steel | Compact | Eleven Sizes | Fits Standard Hose or Tube | High Throughput Capability | No Moving Parts | Quiet
Specifications Air Consumption
5.60 SCFM | 158 SLPM
Specifications Applications
Chip Removal | Fiber Tensioning | Filling Operations | Hopper Loading | Material Conveying | Part Transfer | Waste/Trim Removal
Specifications Corrosion Resistance
Fair
Specifications Dimension E
1 in | 25 mm
Specifications Dimension F
0.63 in | 16 mm
Specifications Dimension H
0.62 in | 16 mm
Specifications Dimension I
0.41 in | 10 mm
Specifications Dimension J
0.82 in | 21 mm
Specifications Dimension K
0.17 in | 4 mm
Specifications Dimension L
1.13 in | 29 mm
Specifications Dimension M
0.06 in | 2 mm
Specifications Dimension N
1.07 in | 27 mm
Specifications Dimension O
0.18 in | 5 mm
Specifications Hose Size
0.38 in | 10 mm
Specifications Inlet Size
3/8 in | 10 mm
Specifications Inside Diameter
0.19 in | 5 mm
Specifications Material
Aluminum
Specifications Outlet Diameter
3/8 in | 10 mm
Specifications Outside Diameter
1.00 in | 25 mm
Specifications Overall Length
2.18 in | 55 mm
Specifications Overall Width
1.25 in | 32 mm
Specifications Pressure
80 psig | 5.5 bar
Specifications Temperature Rating
275 ºF | 135 ºC
Specifications Vacuum Pressure
-120 inWc | -29.9 kPa
