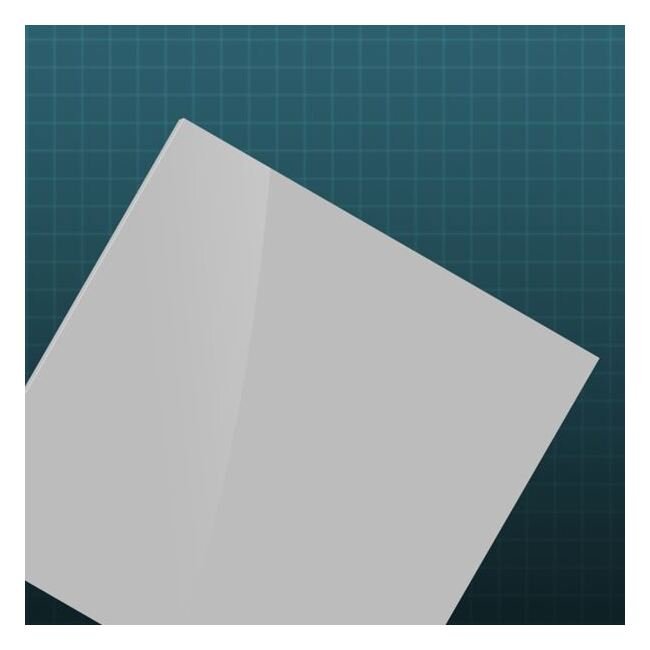

Aluminum Nitride Ceramic Substrate

Name: Aluminum Nitride Ceramic Substrate
Brand: Accumet Engineering
SKU: CER-f33ba1
Price: 49.99 USD
Availability: OutOfStock

SKU:CER-f33ba1

High-performance Aluminum Nitride (AlN) Ceramic Substrate for efficient heat dissipation & superior electronic application.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Aluminum Nitride (AlN) Ceramic Substrate is a superior choice for electronic applications, combining high thermal conductivity with strong electrical resistance. This enables efficient heat dissipation, ensuring optimal system performance. Manufactured by Accumet Engineering, this tan/gray substrate boasts a density of 3.25 g/cm², compressive strength of 2068 MPa, and a thermal conductivity of 82.3 W/m-K at R.T. With a hexagonal crystal structure and stability at high temperatures in inert atmospheres, this substrate is ideal for electronic and semiconductor applications.

Product Specifications

Additional Information Additional Information

Accumet's ceramic substrates can be professionally supplied ready to use, as we are experts in all areas of ceramic machining services, including: polishing; dicing; lapping; grinding; marking, and laser cutting and drilling. As experts in the field of ceramic machining we've honed our ability to provide the tightest tolerances on every level, from ultra-thin, ultra-smooth thicknesses and surfaces, to the smallest and closest through-holes and vias. All of our ceramic substrate materials are stocked and supplied from our advanced manufacturing facilities in Westford, MA and Hudson, MA.When RF designers are weighing material choices and considering circuit design during prototype development, Accumetâs material and process engineering expertise is there to guide them. Whether it be tapping into Accumetâs extensive knowledge of ceramics and other RF materials, circuit design, anticipated yield loss, attainable surface finish, adhesion concerns, or any of the other multiple factors to be considered with regards to circuit manufacturability, Accumetâs engineering staff is ready to help. Upon completion of lasered, lapped, or polished raw substrate orders, customers often ship the substrates back to Accumet after their manufacturing processes are complete for secondary processing. We ship worldwide, offer low minimum orders, and we deliver a full range of advanced manufacturing services from hands-on prototyping to full production runs, to ensure you get the most optimally prepared ceramics delivered on time, every time.

Features Features

Stable at High Temperatures in Inert Atmospheres

Note Note

Available Off the Shelf in the Exact Quantity You Need

Technical Specs Applications

Electronic | Semiconductor

Technical Specs Brands

Accumet Engineering

Technical Specs Color

Tan/Gray

Technical Specs Compressive Strength

2068 MPa at R.T.

Technical Specs Crystal Structure

Hexagonal

Technical Specs Density

3.25 g/cmÂ²

Technical Specs Dielectric Constant

8.0 to 9.1 MHz at R.T.

Technical Specs Dielectric Strength For 050 Thickness

15 V/mil

Technical Specs Flexural Strength Mor

428 MPa at R.T.

Technical Specs Polsons Ratio For American Society For Testing A

0.25

Technical Specs Thermal Conductivity

82.3 W/m-K at R.T.
