Aluminum Offset Round Internal Thread 4-40 0.1875" Diameter

Name: Aluminum Offset Round Internal Thread 4-40 0.1875" Diameter
Brand: Handles Unlimited
SKU: OFF-cb1d3d
Price: 24.99 USD
Availability: OutOfStock

SKU:OFF-cb1d3d

High-quality Aluminum Offset Round Internal Thread with 4-40 Thread Size & 0.1875" Diameter

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

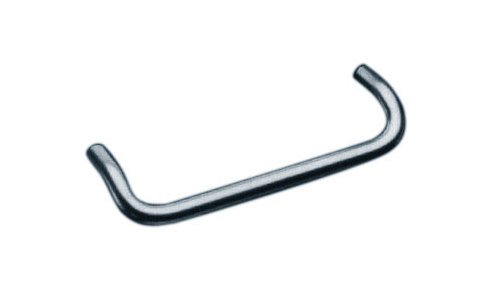

The Aluminum Offset Round Internal Thread is a durable and precision-engineered component designed for a variety of applications. With a round shape and measuring 1.50 inches in overall height, this product is constructed from high-quality aluminum. It features a 4-40 thread size, 0.25-inch thread depth, 0.1875-inch diameter, and a 0.5625 offset. The C to C distance is 5 inches (127 mm), ensuring compatibility with a range of systems. This component is ideal for projects requiring reliability, efficiency, and compliance with stringent procurement standards.

Product Specifications

Specifications C To C In

Specifications C To C Mm

127

Specifications Diameter In

0.1875

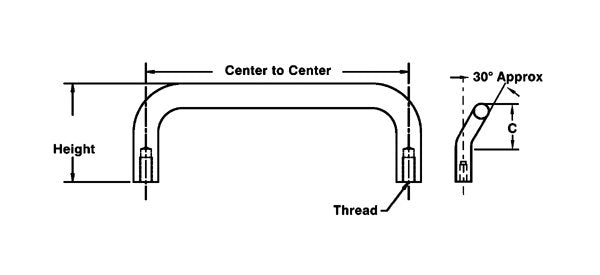

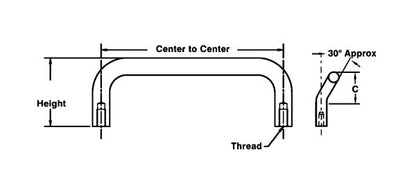

Specifications Line Drawing

Line Drawing

Specifications Material

Aluminum

Specifications Offset C

0.5625 | 14.29

Specifications Overall Height H

1.50 Inch | 38.1

Specifications Shape

Round

Specifications Thread Depth

0.25 Inch | 6.35

Specifications Thread Size

4-40

Aluminum Offset Round Internal Thread 4-40 0.1875" Diameter
