Aluminum Oval Threaded Spacer
Aluminum Oval Threaded Spacer
SKU:OVA-493cf3
High-quality Aluminum Oval-Internal Thread Spacer for precise mechanical positioning. Available in custom stainless steel order. Ideal for industrial applications.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Aluminum Oval Threaded Spacer
$12.99
Quantity: 1
Claim Your Seller Account
Aluminum Oval Threaded Spacer
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

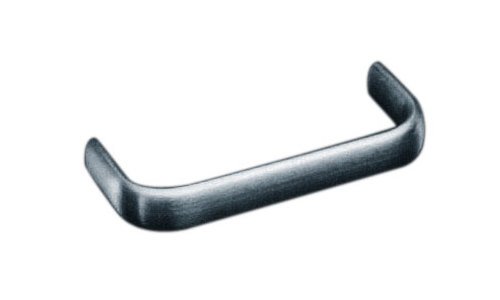

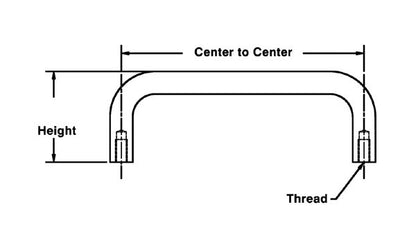

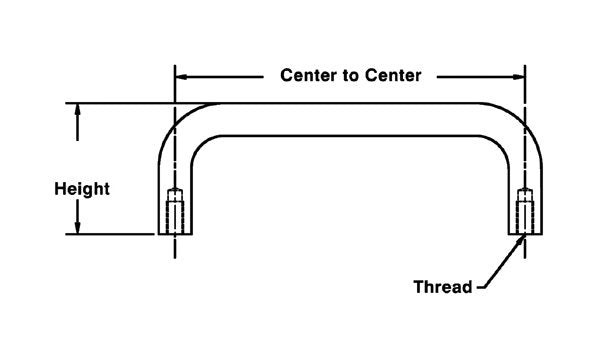

The Aluminum Oval-Internal Thread Spacer is a versatile component designed for precise positioning in mechanical assemblies. With a shape optimized for efficient space utilization, this spacer boasts an overall height of 2 inches (50.8mm) and a center-to-center distance of 10 inches (254mm). Crafted from high-quality aluminum, it features an 8-32 thread size with a .750 x .28125-inch diameter (.750 x .28125mm) and a thread depth of .3125 inches (7.94mm). Notably, this spacer can be custom ordered in stainless steel. Ideal for various industrial applications, this spacer ensures reliable performance and durability.
Product Specifications
Specifications C To C In
10
Specifications C To C Mm
254
Specifications Diameter In
.750 x .28125
Specifications Diameter Mm
19.05 x 7.14
Specifications Material
Aluminum
Specifications Notes
Stainless Steel * Available on special order.
Specifications Overall Height In
2
Specifications Overall Height Mm
50.8
Specifications Shape
Oval
Specifications Thread Depth In
0.3125
Specifications Thread Depth Mm
7.94
Specifications Thread Size
8-32
