Aluminum Oxide E-Beam Liner 25 cm³ with 4 Pockets
Aluminum Oxide E-Beam Liner 25 cm³ with 4 Pockets
SKU:RDM-d46649
Precision Aluminum Oxide E-Beam Liner with 25 cm³ size and 4 pockets, ideal for electron beam evaporation. Custom sizes available. Bulk discounts offered.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Aluminum Oxide E-Beam Liner 25 cm³ with 4 Pockets
$49.99
Quantity: 1
Claim Your Seller Account
Aluminum Oxide E-Beam Liner 25 cm³ with 4 Pockets
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

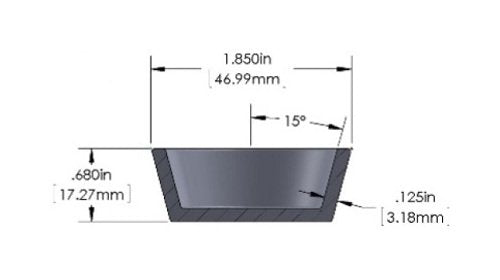

The RDM-EB16 Series Aluminum Oxide E-Beam Liner with 4 Pockets is designed for precision electron beam evaporation applications. With a container size of 25 cm³ and walls crafted from durable aluminum oxide, this crucible boasts a height of 0.680 in, a width of 1.850 in, and an optimal 15º angle. Its robust construction ensures consistent performance and longevity, making it an ideal choice for vacuum deposition processes. Custom sizes are available upon request. Bulk discounts offered.
Product Specifications
Specifications Angle
15 º
Specifications Container Liner Type
Crucible
Specifications Height
0.680 in | 17.27 mm
Specifications Material
Aluminum Oxide
Specifications Number Of Pockets
4
Specifications Size
25 cm³
Specifications Wall Thickness
0.125 in | 3.18 mm
Specifications Width
1.850 in | 46.99 mm
