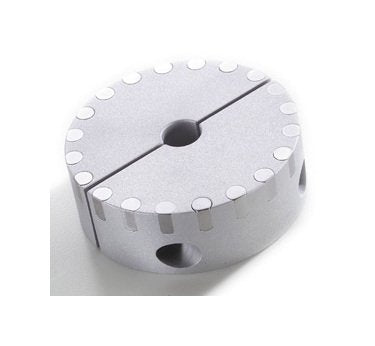

Aluminum Rotary Encoder Collar E102B1000B14

Name: Aluminum Rotary Encoder Collar E102B1000B14
Brand: Stafford Manufacturing Corp.
SKU: ROU-b63c07
Price: 49.99 USD
Availability: OutOfStock

SKU:ROU-b63c07

Upgrade machinery with precision speed sensing using this durable aluminum encoder collar with 14 steel targets for accurate readings on face and OD surfaces.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance machinery with speed-sensing capabilities using the Aluminum Rotary Encoder Collar E102B1000B14. Machined from durable 2024-T351 aluminum alloy with a matte finish, this collar features 14 steel targets for accurate readings on both face and OD surfaces. With a 1-inch bore size and the ability to withstand oils and coolants, it offers flexibility for new or retrofit applications. Fully split, it can be easily mounted without disassembling other components. Pair with a Sensor Mount Assembly for optimal performance.

Product Specifications

Dimensional Attributes Bolt Circle

2.254 in

Dimensional Attributes Bore Size

1 in

Dimensional Attributes No Of Targets

Dimensional Attributes Outside Diameter

2.500 in

Dimensional Attributes Screw Material

18-8 Stainless Steel

Dimensional Attributes Screw Size

1/4-28 x 3/4

Dimensional Attributes Target Size

6MM

Dimensional Attributes Width

1.000 in

Specifications Alloy

2024-T351

Specifications Approximate Weight

0.44 lb

Specifications Country Of Origin

USA

Specifications Finish

Matte

Specifications Material

Aluminum

Specifications Part Number

E102B1000B14

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Solution

Specifications Upc Code

662786022814

Aluminum Rotary Encoder Collar E102B1000B14
