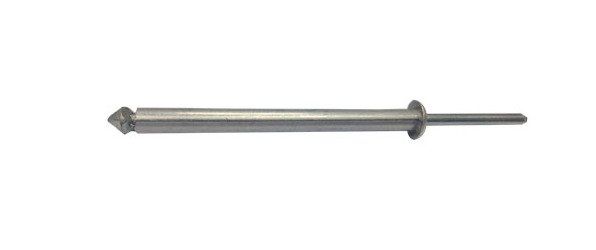

Aluminum Self-Piercing Rivet 38.0mm Body Length - Pack of 1000
Aluminum Self-Piercing Rivet 38.0mm Body Length - Pack of 1000
SKU:TPR-1b0d3d
High-strength Aluminum Self-Piercing Rivet for industrial applications. Pack of 1000.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Aluminum Self-Piercing Rivet 38.0mm Body Length - Pack of 1000
$99.99
Quantity: 1
Claim Your Seller Account
Aluminum Self-Piercing Rivet 38.0mm Body Length - Pack of 1000
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Aluminum Self-Piercing Rivet in 38.0mm body length is designed for industrial applications requiring secure and efficient fastening. Constructed with Aluminum Alloy and a Zinc-Coated Chromium Mandrel, it offers reliable strength and durability. With a high shear force of 250kgf and a tensile force of 320kgf, it ensures a sturdy connection. Compliant with federal procurement standards, this rivet is ideal for use in aerospace, automotive, and construction industries.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Nominal Dimensions Body Length
38.0 mm | 1.5 in
Nominal Dimensions Diameter
6.4 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.8 to 7.0 mm | 0.268 to 0.276 in
Nominal Dimensions Head Diameter
12.0 mm | 0.472 in
Nominal Dimensions Head Thickness
1.80 mm | 0.071 in
Nominal Dimensions Mandrel Diameter
3.6 mm | 0.142 in
Nominal Dimensions Maximum Grip Range
23.0 mm | 0.905 in
Nominal Dimensions Minimum Grip Range
18.0 mm | 0.710 in
Nominal Forces Nominal Shear Force
250 kgf | 551 lbf
Nominal Forces Nominal Tensile Force
320 kgf | 706 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (ALmg 3.0/5.0)
Technical Specs Brands
Ornit | TPR
Technical Specs Carton Quantity
1000
Technical Specs Mandrel Finish
Zinc Coated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
