Aluminum/Stainless Steel 120 Degree Countersunk Head Rivet - 3.2mm x 11.1mm
Aluminum/Stainless Steel 120 Degree Countersunk Head Rivet - 3.2mm x 11.1mm
SKU:UFI-3bc83e
High-quality Aluminum/Stainless Steel Rivet for secure and flush fastening. Nominal shear force: 70 kgf.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Aluminum/Stainless Steel 120 Degree Countersunk Head Rivet - 3.2mm x 11.1mm
$59.99
Quantity: 1
Claim Your Seller Account
Aluminum/Stainless Steel 120 Degree Countersunk Head Rivet - 3.2mm x 11.1mm
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

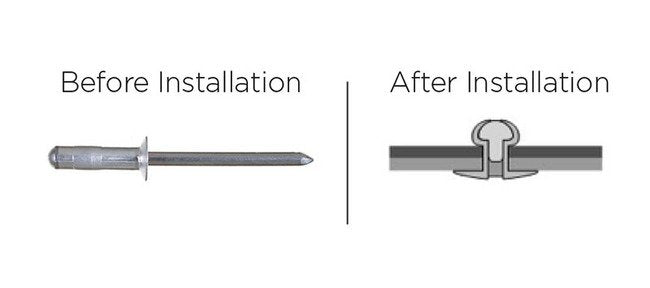

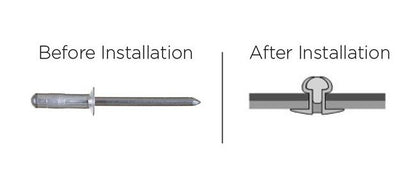

The U-Fix Aluminum/Stainless Steel 120 Degree Countersunk Head Rivet is a versatile and durable fastening solution suitable for a wide range of applications. With a body made of high-quality Aluminum Alloy ALmg 2.5 and a Stainless Steel AISI 430/434 mandrel, this rivet ensures reliable performance. Its 120-degree countersunk head design provides a flush finish, enhancing both functionality and aesthetics. Offering a nominal shear force of 70 kgf and a nominal tensile force of 93 kgf, this rivet delivers exceptional strength and durability.
Product Specifications
Nominal Dimensions Body Length
11.1 mm | 0.437 in
Nominal Dimensions Diameter
3.2 mm | 1/8 in
Nominal Dimensions Drillhole Size
3.3 mm | 0.130 in
Nominal Dimensions Head Diameter
5.35 mm | 0.211 in
Nominal Dimensions Head Thickness
0.85 mm | 0.33 in
Nominal Dimensions Mandrel Diameter
1.81 mm | 0.071 in
Nominal Dimensions Maximum Grip Range
7.9 mm | 0.311 in
Nominal Dimensions Minimum Grip Range
4.0 mm | 0.157 in
Nominal Forces Nominal Shear Force
70 kgf | 154 lbf
Nominal Forces Nominal Tensile Force
93 kgf | 204.6 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
10000
Technical Specs Head Style
120 Degree Countersunk
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Stainless Steel AISI 430/434 or Equivalent
