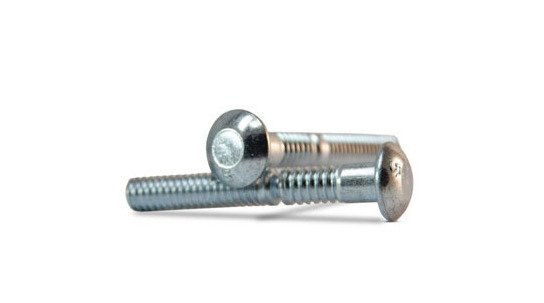

Aluminum Standard Brazier Head Lock Bolt 3/16 in
Aluminum Standard Brazier Head Lock Bolt 3/16 in
SKU:STA-a4e873
High-strength Aluminum Lock Bolt with Zinc Finish, 2.529 in Mandrel Length, meets federal procurement standards.
Regular price
$7.99
Regular price
Sale price
$7.99
Unit price
per
Initiate Order
Aluminum Standard Brazier Head Lock Bolt 3/16 in
$7.99
Quantity: 1
Claim Your Seller Account
Aluminum Standard Brazier Head Lock Bolt 3/16 in
$7.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your fastening solutions with the Aluminum Standard Brazier Head Lock Bolt. Made from durable Aluminum (2024) with a Zinc finish, this bolt features a braizier head and precise dimensions for reliable performance. With a maximum mandrel length of 2.529 inches and impressive shear and tensile strength, it offers secure fastening in a range of applications. Compliant with federal procurement standards and industry certifications, this bolt ensures quality and reliability in every use.
Product Specifications
Dimensions Diameter
3/16 in
Dimensions Dimension A
0.191 to 0.195 in
Dimensions Maximum Grip Range
1.063 in
Dimensions Maximum Head Diameter
0.394 in
Dimensions Maximum Hole Diameter
0.203 in
Dimensions Maximum Hole Size
0.203 in
Dimensions Maximum Length
2.654 in
Dimensions Maximum Mandrel Length
2.529 in
Dimensions Minimum Grip Range
1.188 in
Dimensions Minimum Head Diameter
0.356 in
Dimensions Minimum Hole Diameter
0.193 in
Dimensions Minimum Length
2.517 in
Dimensions Minimum Mandrel Length
2.404 in
Dimensions Minimum Shear Strength
476 in
Dimensions Minimum Tensile Strength
454 in
Dimensions Nominal Drill Side
0.198 in
Dimensions Nominal Head Diameter
0.375 in
Dimensions Nominal Mandrel Length
2.467 in
Technical Specs Brands
Ornit
Technical Specs Finish
Zinc
Technical Specs Head B
0.356 to 0.394 in
Technical Specs Head C
0.113 to 0.125 in
Technical Specs Head Shape
Braizier Head
Technical Specs Material
Aluminum (2024)
