Aluminum Steel X-Large Head Rivet - 3.2mm x 9.5mm
Aluminum Steel X-Large Head Rivet - 3.2mm x 9.5mm
SKU:UFI-c34657
High-strength Aluminum Steel Rivet for secure fastening in industrial applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Aluminum Steel X-Large Head Rivet - 3.2mm x 9.5mm
$29.99
Quantity: 1
Claim Your Seller Account
Aluminum Steel X-Large Head Rivet - 3.2mm x 9.5mm
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

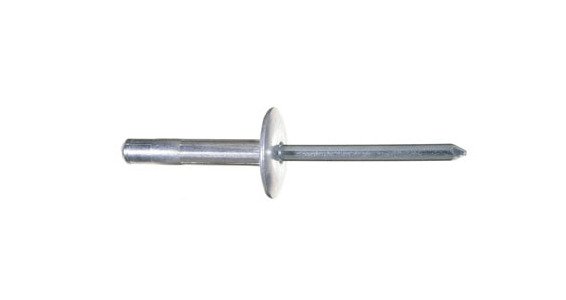

Experience secure fastening with the U-Fix Aluminum Steel X-Large Head Rivet. Made of Aluminum Alloy ALmg 2.5 with a Zinc Plated Chromium VI-Free Low Carbon Steel Mandrel, this rivet boasts a 3.2mm diameter, 9.5mm body length, and can withstand up to 104kgf tensile force. Ideal for industrial applications requiring strength and reliability.
Product Specifications
Nominal Dimensions Body Length
9.5 mm | 0.374 in
Nominal Dimensions Diameter
3.2 mm | 1/8 in
Nominal Dimensions Drillhole Size
3.3 mm | 0.130 in
Nominal Dimensions Head Diameter
9.5 mm | 0.374 in
Nominal Dimensions Head Thickness
1.20 mm | 0.047 in
Nominal Dimensions Mandrel Diameter
1.81 mm | 0.071 in
Nominal Dimensions Maximum Grip Range
6.4 mm | 0.252 in
Nominal Dimensions Minimum Grip Range
1.2 mm | 0.047 in
Nominal Forces Nominal Shear Force
75 kgf | 165 lbf
Nominal Forces Nominal Tensile Force
104 kgf | 230 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
8000
Technical Specs Head Style
Extra Large
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel
