Aluminum Threaded Plugs for 37 Degree Flared Fittings
Aluminum Threaded Plugs for 37 Degree Flared Fittings
SKU:PLU-74a1dc
Premium Aluminum Threaded Plugs for secure sealing on 37° flared fittings and threaded ports. Compliant with MIL-C-5501/1, NAS-818, and NAS-836.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Aluminum Threaded Plugs for 37 Degree Flared Fittings
$12.99
Quantity: 1
Claim Your Seller Account
Aluminum Threaded Plugs for 37 Degree Flared Fittings
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

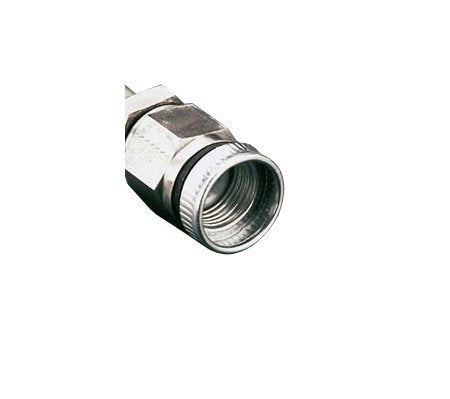

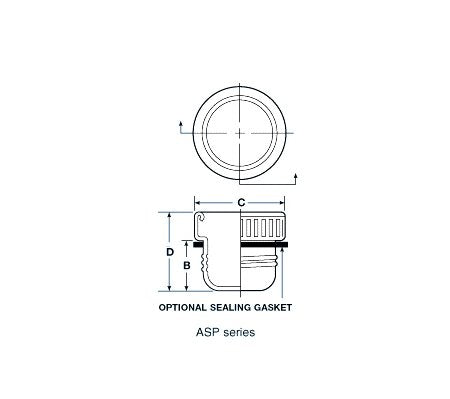

The ASP Series Aluminum Threaded Plugs are meticulously crafted to safeguard 37° flared fittings and straight-threaded ports with precision. These plugs feature a nose section that provides a secure seal on flared fittings without the need for an additional gasket. For enhanced low-pressure sealing on threaded ports, the ASP-GN series includes a neoprene shoulder gasket. Compliant with MIL-C-5501/1, NAS-818, and NAS-836 specifications, these plugs are constructed from durable 3003-0 Aluminum Alloy and are available with optional Butyl or Buna N rubber gaskets for specialized sealing requirements. With dimensions B (0.5 in), C (0.900 in), and D (0.780 in), these plugs cater to 5/8"-18 thread sizes. Order now to experience superior protection and sealing efficiency.
Product Specifications
Specifications Applicable Specification
MIL-C-5501/1 | NAS-818 | NAS-836
Specifications Color
Silver (Natural)
Specifications Dimension B
0.5 in
Specifications Dimension C
0.900 in
Specifications Dimension D
0.780 in
Specifications Material
3003-0 Aluminum Alloy
Specifications Note
Standard ASP Plugs listed below do not include gasket.
Specifications To Fit Thread Size
5/8"-18
