Aluminum Threaded Plugs for 37 Degree Flared Fittings
Aluminum Threaded Plugs for 37 Degree Flared Fittings
SKU:PLU-b23162
Protect 37º flared fittings with precision using Aluminum Threaded Plugs for supreme sealing. Compliant with MIL-C-5501/1, NAS-818 standards.
Regular price
$19.99
Regular price
Sale price
$19.99
Unit price
per
Initiate Order
Aluminum Threaded Plugs for 37 Degree Flared Fittings
$19.99
Quantity: 1
Claim Your Seller Account
Aluminum Threaded Plugs for 37 Degree Flared Fittings
$19.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

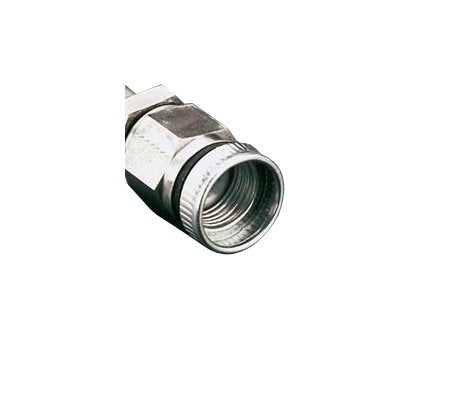

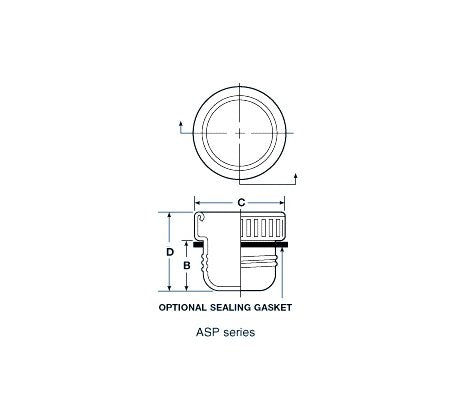

The ASP Series Threaded Aluminum Plugs are expertly designed to safeguard 37º flared fittings and straight-threaded ports with precision. Made from durable 3003-0 Aluminum Alloy, these plugs ensure a snug fit without the need for a gasket. For low-pressure sealing of threaded ports, opt for the ASP-GN series which includes a neoprene shoulder gasket. Trusted by industry professionals, these plugs adhere to MIL-C-5501/1, NAS-818, and NAS-836 specifications, offering dimensions B (0.460 in), C (0.61 in), and D (0.710 in) to fit thread size 7/16"-20.
Product Specifications
Specifications Applicable Specification
MIL-C-5501/1 | NAS-818 | NAS-836
Specifications Color
Silver (Natural)
Specifications Dimension B
0.460 in
Specifications Dimension C
0.61 in
Specifications Dimension D
0.710 in
Specifications Material
3003-0 Aluminum Alloy
Specifications Note
Standard ASP Plugs listed below do not include gasket.
Specifications To Fit Thread Size
7/16"-20
