Aluminum Threaded Plugs for Flared Fittings & Straight Ports

Name: Aluminum Threaded Plugs for Flared Fittings & Straight Ports
Brand: Arizona Sealing Devices, Inc.
SKU: PLU-fe0b2a
Price: 22.99 USD
Availability: OutOfStock

SKU:PLU-fe0b2a

Protect 37° Flared Fittings & Straight Ports with Precision-Crafted Aluminum Plugs. Order Now!

$22.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

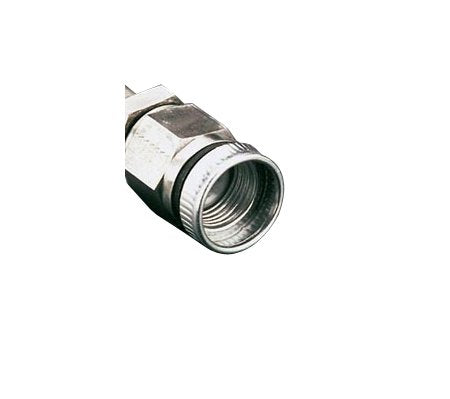

The ASP Series Threaded Aluminum Plugs are meticulously designed to safeguard 37° flared fittings and straight-threaded ports with a nose section that ensures a secure seal without requiring a gasket. Crafted from high-quality 3003-0 Aluminum Alloy in a sleek silver finish, these plugs meet MIL-C-5501/1, NAS-818, and NAS-836 specifications. The ASP-GN variant comes with a neoprene shoulder gasket for enhanced low-pressure sealing, while Butyl or Buna N rubber gaskets are available for specialized requirements. Contact Caplugs Customer Service for custom orders.

Product Specifications

Specifications Applicable Specification

MIL-C-5501/1 | NAS-818 | NAS-836

Specifications Color

Silver (Natural)

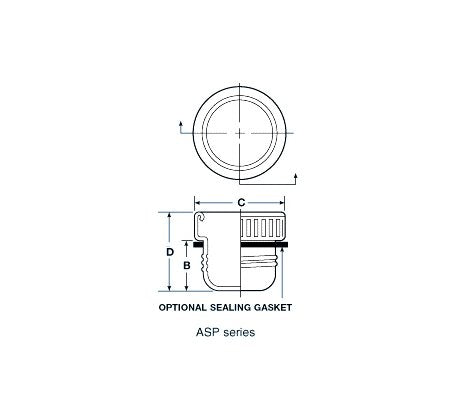

Specifications Dimension B

0.710 in

Specifications Dimension C

1.530 in

Specifications Dimension D

1.080 in

Specifications Material

3003-0 Aluminum Alloy

Specifications Note

Standard ASP Plugs listed belowÂ do not include gasket.

Specifications To Fit Thread Size

1 5/16"-12
