Aluminum Threaded Plugs for Flareless Tube Assemblies - ADP Series

Name: Aluminum Threaded Plugs for Flareless Tube Assemblies - ADP Series
Brand: Arizona Sealing Devices, Inc.
SKU: PLU-d4b99e
Price: 14.99 USD
Availability: OutOfStock

SKU:PLU-d4b99e

Secure low-pressure seal Aluminum Threaded Plugs for flareless tube ends. Meets MIL-C-5501/2 & NAS-842, fit 7/16 in tubes. Optional gaskets available.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

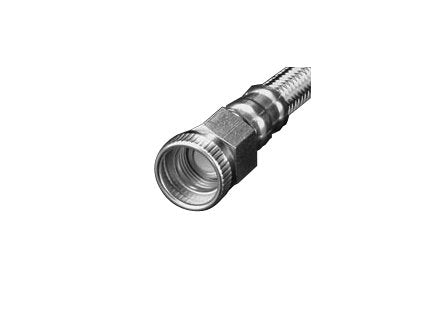

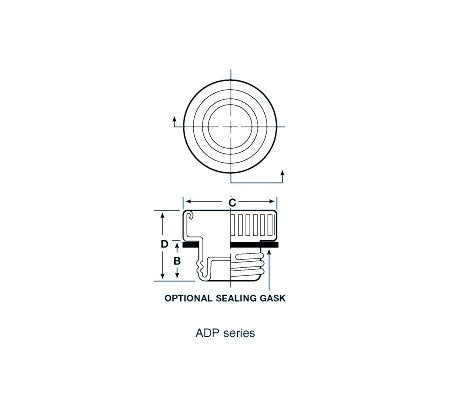

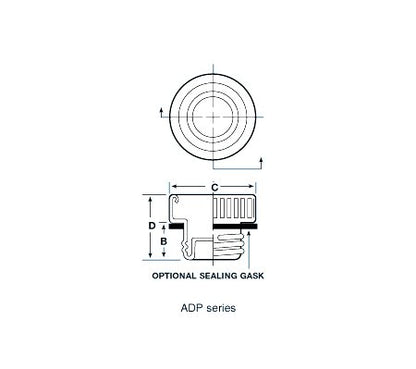

The ADP Series Threaded Aluminum Plugs are specifically designed with a dimpled nose section to create a secure low-pressure seal with flareless tube ends. Featuring a neoprene shoulder gasket, the ADP-GN ensures a positive seal on the O-ring port spot face. Optional Butyl or Buna N rubber gaskets available. Constructed from 3003-0 Aluminum Alloy, these plugs meet MIL-C-5501/2 and NAS-842 specifications. With dimensions B, C, and D of 0.310 in, 0.900 in, and 0.59 in respectively, these plugs are tailored to fit 7/16 in tubes with a 5/8"-18 thread size.

Product Specifications

Specifications Applicable Specification

MIL-C-5501/2 | NAS-842

Specifications Color

Natural (silver)

Specifications Dimension B

0.310 in

Specifications Dimension C

0.900 in

Specifications Dimension D

0.59 in

Specifications Material

3003-0 Aluminum Alloy

Specifications To Fit Thread Size

5/8"-18

Specifications To Fit Tube Size

7/16 in
