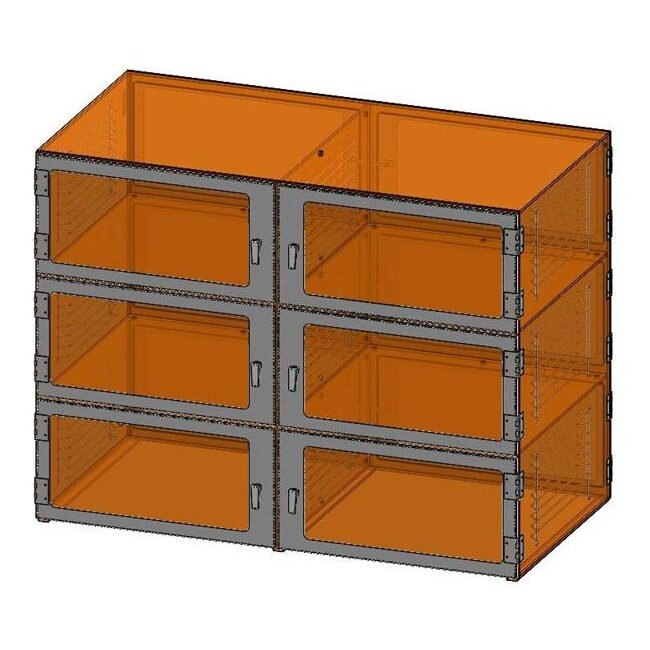

Amber Acrylic 6-Chamber Pass-Through Desiccator Cabinet (18in Depth)
Amber Acrylic 6-Chamber Pass-Through Desiccator Cabinet (18in Depth)
SKU:SIX-a58b56
Enhance your lab operations with our 18in Depth Amber Acrylic 6-Chamber Pass-Through Desiccator Cabinet, featuring stainless steel components and optional accessories for precise control.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
Amber Acrylic 6-Chamber Pass-Through Desiccator Cabinet (18in Depth)
$2,499.99
Quantity: 1
Claim Your Seller Account
Amber Acrylic 6-Chamber Pass-Through Desiccator Cabinet (18in Depth)
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your lab with the 18-inch Depth Amber Acrylic Six Chamber Pass-Through Desiccator Cabinet. This cabinet offers front and rear access, stainless steel components, adjustable wire racks, and a secure seal. Optional add-ons include a Gas-in Port, Automatic Purge Control Unit, Flowmeter, Hygro-Thermometers, epoxy-coated steel stand, shelves in various materials, and security features like cam locks and stainless steel brackets. Perfect for controlled environments in research facilities, laboratories, and more.
Product Specifications
Additional Information Additional Information
Front and rear access doors allow for pass-through operations.Stainless steel door frame and door hinge.Stainless steel wire rack for shelving. A pair of wire racks is needed for each chamber and are optional if there are no shelves.Metal lift-and-turn latch.Single-piece Santoprene seal.
Applications 0
Pass-Through Chambers
Options Options
Gas-in Port & Pressure Relief Valve (1/4" OD tubing fitting)One-Channel Automatic Purge Control Unit (PCU) with one humidity sensor.Flowmeter with an external valve mount. Flowmeter range is from 2-20 SCFH air. (It is not required if you order a PCU.)Big Digit Hygro-Thermometer (Humidity range: 10% to 99 % RH/ Temperature range: 14º F to 140º F)Small Digit Hygro-Thermometer (Humidity range: 10% to 99 % RH/ Temperature range: 14º F to 140º F)Epoxy powder coated steel stand with caster (including two locking). Available in 30'' and 35'' height with an optional upgrade to leveling mounts.Perforated stainless steel, acrylic or static-dissipative PVC shelves. (Wire racks are required for shelf placement.)Cam lock with an option to have the same or different key for each door. Please note that the price for the cam lock is per door.Stainless steel locking bracket for use with a padlock. Please note that the price for the locking bracket is per door.Stainless steel bottom plate installed on the bottom of each chamber.Chambers can either be interconnected using a perforated chamber divider or isolated to maintain a controlled environment.
Specifications Chamber Depth
18 in
Specifications Chamber Height
16 in
Specifications Chamber Width
24 in
Specifications Door Opening Height
14.1875 in
Specifications Door Opening Width
22.375 in
Specifications Internal Usable Space Depth
16.125 in
Specifications Internal Usable Space Height
15.75 in
Specifications Material
Amber Acrylic
Specifications Number Of Chambers
6
Specifications Overall Depth
18 in
Specifications Overall Height
48 in
Specifications Overall Width
48 in
Specifications Usable Area Shelf Space Depth
15.5 in
Specifications Usable Area Shelf Space Width
21.5 in
