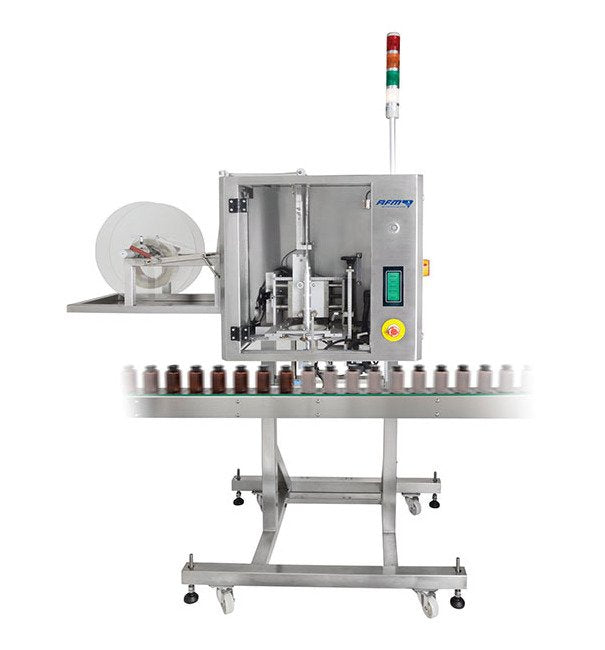

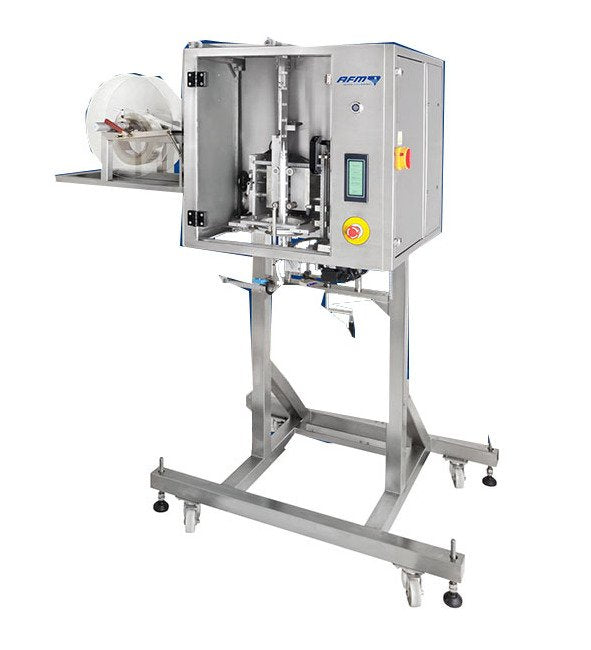

The American Film & Machinery LX-100 combines cost-effective shrink labeling with industrial-strength design, catering to low to moderate production rates across various industries. Engineered for versatility, this machine features servo-driven label drive rollers, PLC-controlled components for accurate labeling, and a single-blade cutting mechanism for smooth film cutting. The user-friendly touchscreen interface, quick mandrel change system, and bullet-style mandrel for different container shapes ensure efficiency and versatility. With a rugged design, high speeds of up to 80CPM, and optional features like date coding, the LX-100 is the right choice for reliable shrink sleeve labeling applications.
Product Specifications
Additional Information Additional Information
LX-100's compact housing is constructed from 304 grade stainless steel to provide strength and reduce vibration while offering quiet operation. Product runs are programmed with the user-friendly touch-screen control interface HMI, featuring standard and custom menus that can be password protected for an added layer of securityENGINEERED FOR VERSATILITYEvery LX Series machine is designed with servo driven, PLC controlled label drive rollers, cutter assembly, and label shooting wheels to provide accurate and consistent shrink sleeve labeling. LX-100 has been engineered to handle oval and round containers made of plastic, glass, or metal at speeds of up to 80CPM. Users also have the option of purchasing additional mandrels for non-cylindrical containers. The single - blade centrifugal cutting mechanism provides extremely smooth, even cutting of film thickness of 35 microns up to 70 microns.FAST AND EFFECTIVEThe LX-100 also comes with our quick change system for switching mandrels with a turn of a knob. Along with the mandrel, the cutter assembly has only two levers to turn, keeping your downtime to a minimum.THE RIGHT CHOICERugged design. Maximum uptime. Lower cost of ownership. Your benefits go on and on. When it comes to shrink sleeve and tamper band application, rely on American Film & Machinery to provide the right solution for your shrink sleeve labeling needs.
Key Features Key Features

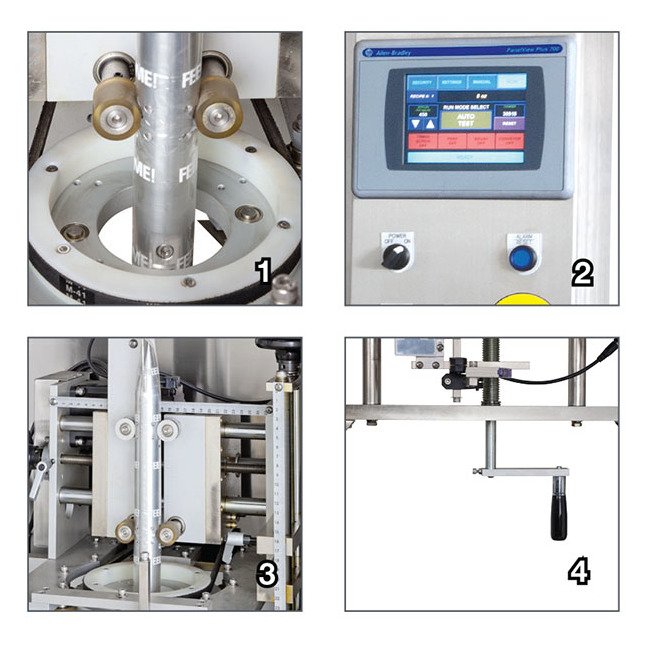

Smooth and Even Film CuttingThe single-blade centrifugal cutting mechanism provides smooth and even cutting at high speedsControl InterfaceProduct runs are programmed with the user-friendly touchscreen control interfaceIn-line Single-Head MandrelThe bullet style mandrel is ideal for oval and round containers made of plastic, glass, or metalSimple Conveyor Height AdjustmentEasy-to-use hand crank allows for ideal height adjustment on virtually any conveyor
Machine Dimensions Machine Height
1540 to 1960 mm | 60.6 to 77.2 in
Machine Dimensions Machine Length
1462.5 mm | 57.6 in
Machine Dimensions Machine Width
904 mm | 35.6 in
Optional Features And Components Optional Features And Component
Vertical and T perforation unitsLabel tamp down deviceDate code / lot code printerDual timing screw assembly
Power Frequency
50 Hz | 60 Hz
Power Phase
3
Power Voltage
220 V | 380 V | 400 V | 440 V
Specifications Cut Length
40 to 200 mm
Specifications Film Lay Flat
40 to 160 mm
Specifications Film Thickness
0.035 to 0.07 mm
Specifications Speed
20 to 80 cpm
Standard Components Standard Components
Round cylindrical mandrelCutter assemblySingle timing screw unitPhoto eye for registered cuttingLabel brush down deviceSingle roll unwind and tension control
