American Film & Machinery WSN-GEN S Steam Heat Tunnel
American Film & Machinery WSN-GEN S Steam Heat Tunnel
SKU:WSN-0dcb0c
Achieve precise shrink labeling with the American Film & Machinery WSN-GEN S Steam Heat Tunnel. Constructed for reliability and ease of setup, it ensures high-quality shrink performance for various label materials.
Regular price
$13,499.99
Regular price
Sale price
$13,499.99
Unit price
per
Initiate Order
American Film & Machinery WSN-GEN S Steam Heat Tunnel
$13,499.99
Quantity: 1
Claim Your Seller Account
American Film & Machinery WSN-GEN S Steam Heat Tunnel
$13,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

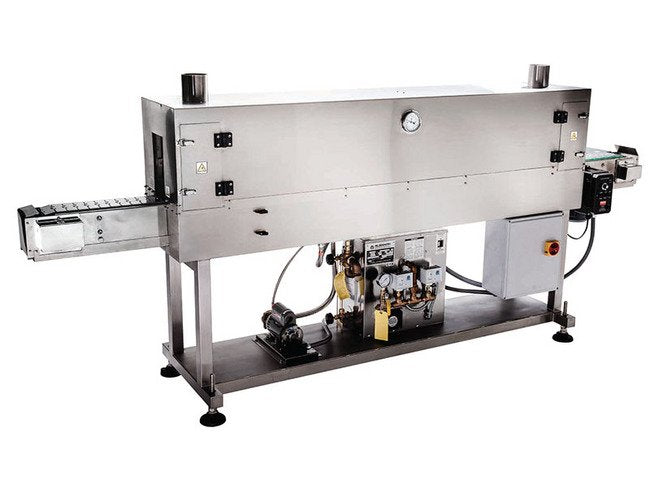

The American Film & Machinery WSN-GEN S Steam Heat Tunnel is specifically designed for precise shrink sleeve labeling and tamper-evident band applications in various industries. Constructed with a stainless steel frame, this all-in-one tunnel includes its own 20KW electric boiler, ensuring reliable and high-quality shrink performance for PVC, PETG, OPS, and PLA labels. With a maximum temperature of 212°F, adjustable tier manifolds for uniform heat distribution, and quick setup features, this tunnel is the right choice for efficient shrink labeling operations.
Product Specifications
Built For Your Operation Built For Your Operation
Designed to work as an integral part of your day-to-day packaging operations, the WSN-GEN S is constructed from rugged stainless steel and includes a built-in 3 meter product conveyor. The compact design allows for easy installation to get you up and running within minutes.
Designed To Perform Designed To Perform
The GEN S tunnel utilizes a 9" tall and 4" wide opening to accommodate a number of shrink sleeve products. The tunnel has a maximum temperature of 212 ºF and features high quality steam heating elements and an adjustable manifold for uniform heat distribution. Changing containers or labels isn't an issue - tier adjustments and controls are done from the operator side of the tunnel, making adjustments safe, quick and easy.
Reliable Shrink Performance Reliable Shrink Performance

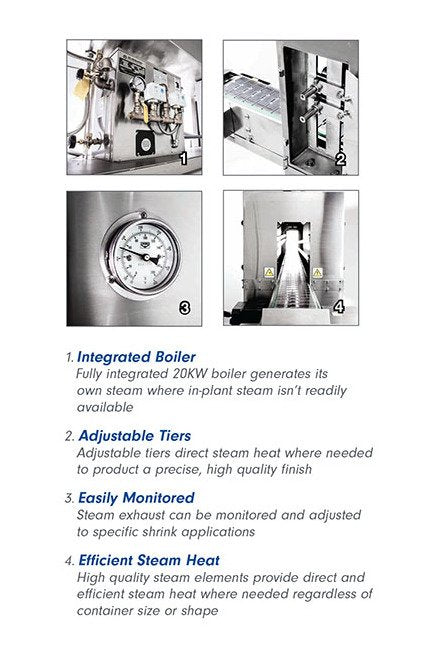

The WSN-GEN S is designed for simple setup where in-plant steam generation isn't readily available. Equipped with 2 adjustable tier manifolds, The GEN S directs the steam heat where needed to produce a precise, high quality finished appearance of PVC, PETG, OPS, and PLA labels and neck bands. The GEN S provides better contour than radiant heat and ensures a quality finish regardless of container size or shape.
Technical Specs Boiler Specifications
20KW electric boiler, 50 psi, internally plumbed, drip pan included for condensation recovery
Technical Specs Conveyor Height
36 in
Technical Specs Conveyor Height Tolerance
2 in
Technical Specs Conveyor Length
118 in | 3 m
Technical Specs Conveyor Speed
Variable speed conveyor to move product at rates up to 200/minute.
Technical Specs Conveyor Width
4.5 in | 117 mm
Technical Specs Machine Construction
Stainless steel frame and construction
Technical Specs Machine Height
54 in | 1372 mm
Technical Specs Machine Length
119 in | 3 m
Technical Specs Machine Width
23.5 in | 597 mm
Technical Specs Maximum Height
9 in | 228 mm
Technical Specs Maximum Temperature
212 ºF
Technical Specs Maximum Width
4 in | 101 mm
Technical Specs Note For Conveyor Height
Includes casters and leveling feet
Technical Specs Note For Conveyor Length
Optional extended length conveyor to accommodate shrink labeler
Technical Specs Note For Conveyor Width
Wide flat top chain conveyor
Technical Specs Tunnel Height
9.84 in | 250 mm
Technical Specs Tunnel Length
78.7 in | 2 m
Technical Specs Tunnel Width
5.11 in | 130 mm
Technical Specs Zones And Tiers
1 Zone with 2 tiers
The Right Choice The Right Choice
Rugged design. Maximum uptime. Lower cost of ownership. Your benefits go on and on. When it comes to shrink sleeve and tamper band applications, rely on American Film & Machinery to provide the right solution for your shrink sleeve labeling needs.
