American Machine 2" Dewatering Pump
American Machine 2" Dewatering Pump
SKU:PRO-7b4a99
Reliable American Machine 2" Dewatering Pump for efficient water transfer, self-priming design, and 1/4" solids handling capability.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
American Machine 2" Dewatering Pump
$799.99
Quantity: 1
Claim Your Seller Account
American Machine 2" Dewatering Pump
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

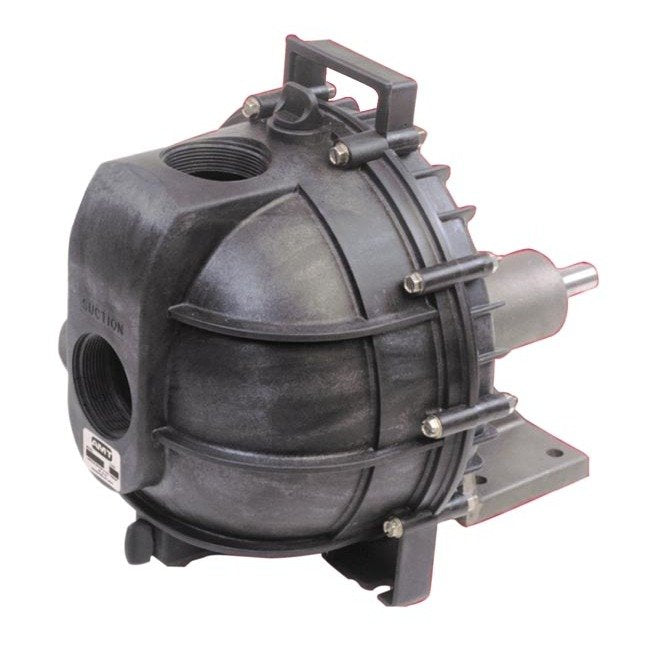

The American Machine 2" Dewatering Pump is a reliable solution for efficient water transfer in various settings. Built with thermoplastic construction and a self-priming design, this pump can handle 1/4" diameter solids with ease. With a maximum working pressure of 45 PSI and a maximum temperature of 130°F, it is equipped to meet demanding dewatering needs. Manufactured by American Machine and Tool Company, this pump features heavy-duty components like a cast iron bearing housing and precision sealed ball bearings for enhanced durability and performance.
Product Specifications
Specifications 0
Thermoplastic ConstructionBuna-N flapper valve and O-rings2" NPT suction & discharge portsMaximum Working Pressure 45 PSIMaximum Temperature 130° FSelf-priming to 20 ft2" Dewatering construction1/4" Diameter solids handling capabilityHeavy duty cast iron bearing housing containing (2) precision sealed ball bearings3/4" Diameter CNC machined shaft1 3/8" x 3/16" x 3/32" keyway1/4" Diameter solids handling capability

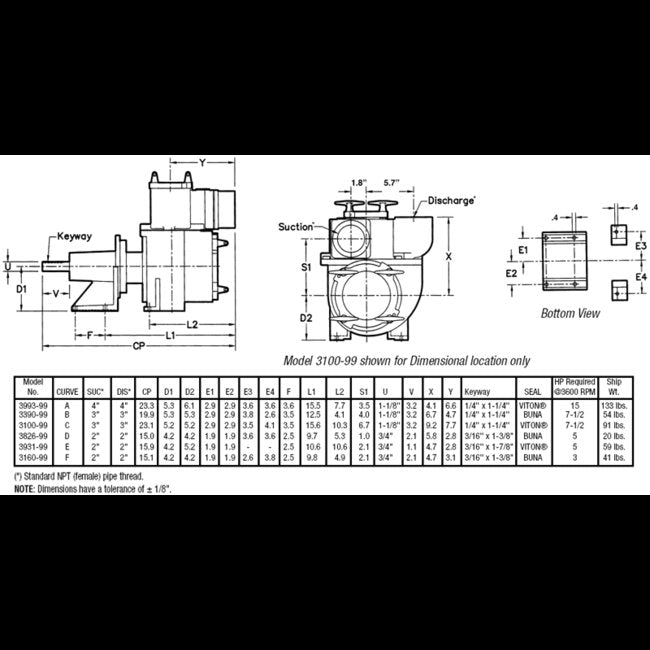

Specifications Curve
D
Specifications Customs Code
HTS Code 8413702022
Specifications Driver
Pedestal
Specifications Height
11 in | 266.7 mm
Specifications Inlet Size
2 in
Specifications Installed Options
Silicon Carbide/Viton Seal, Flapper and Gasket Installed (339X-300-VS) | Silicon Carbide/Viton Seal, O-Ring and Flapper Installed (316X-300-VS)
Specifications Length
15 in | 381.00 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Porting Position
2 in
Specifications Power Required At 3600 Rpm
5 hp
Specifications Pump Type
Dewatering
Specifications Seal Material
Buna-N
Specifications Sku
AT382699SP
Specifications Temperature
130 ºF
Specifications Weight
20 | 9.07 | 20 lbs
Specifications Width
11 in | 279.40 mm
