American Machine 3" 5 HP Self-Priming Trash Pump
American Machine 3" 5 HP Self-Priming Trash Pump
SKU:PRO-0fe431
High-performance 3" 5 HP Trash Pump for heavy-duty water handling needs. Durable construction with easy cleanout design and versatile options.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
American Machine 3" 5 HP Self-Priming Trash Pump
$899.99
Quantity: 1
Claim Your Seller Account
American Machine 3" 5 HP Self-Priming Trash Pump
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

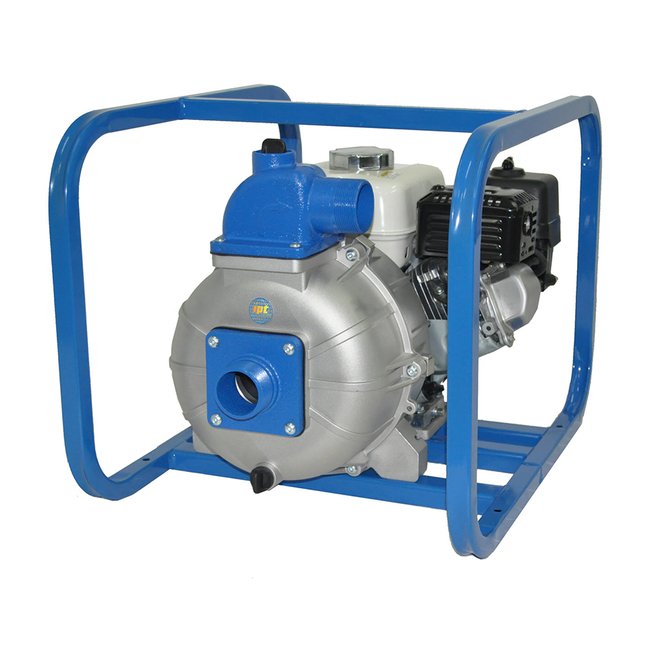

The American Machine 3" 5 HP Self-Priming Trash Pump is an industrial-grade solution for high-volume water movement. Featuring a cast aluminum construction with cast iron wearparts, this pump is designed for durability and performance. It comes equipped with a silicon carbide/Viton® mechanical seal, EPDM/EPR O-Rings, and 2" or 3" removable male NPT suction and discharge ports. With a maximum flow rate of up to 290 GPM, self-priming capability up to 26 Ft, and the ability to handle solids up to 1-1/4", this pump is ideal for demanding applications. The easy cleanout design with one-tool serviceability and the optional wheel kit for portability make it a versatile choice for various settings.
Product Specifications
Curves 0

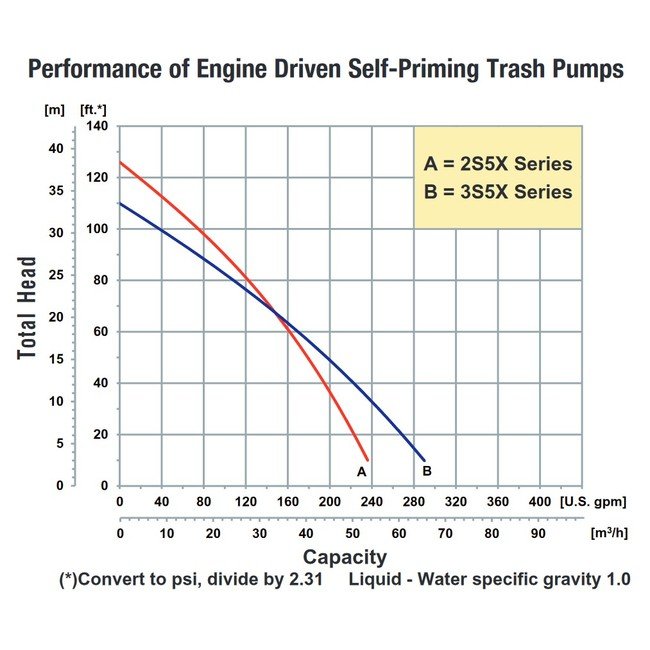

Performance Curves
Dimensions 0

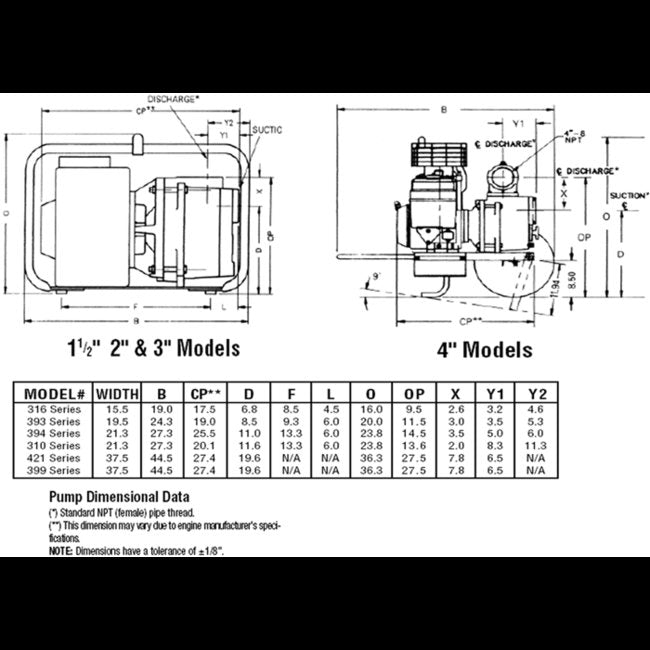

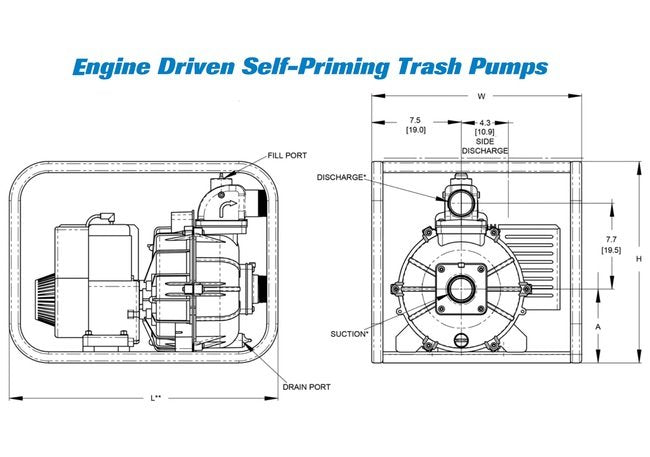

Dimensions
Specifications Driver
LCT® 208CC
Specifications Features
Cast Aluminum with Cast Iron WearpartsSilicon Carbide/Viton® Mechanical SealEPDM/EPR O-Rings Standard with Optional FKM2" or 3" Removable Male NPT Suction and Discharge PortsDischarge Rotates in 90° IncrementsEngine OptionsEasy Clean Out with One Tool ServiceabilityMaximum Solids Handling up to 1-1/4"Maximum Flow up to 290 GPMMaximum Head up to 125 Ft.Self-Priming to 26 Ft.Wheel Kit Optional
Specifications Fuel Tank Capacity
0.71/2.7, not qt qt
Specifications Height
20 in | 505.46 mm
Specifications Length
24 Inch | 60.96 Centimeter | 2.00 ft | 24 in | 0.6096 m | 609.60 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Power
5 hp
Specifications Run Time
132.00 min min
Specifications Sku
AT3S5XLRSP
Specifications Solids Handling
1.25 in
Specifications Weight
45.36 Kilogram | 45.36 kg | 100 lbs
Specifications Width
20 Inch | 20 in | 0.4953 m | 1.63 ft | 495.30 mm
